SRL-Z 500/1000 Series Heating/Cooling Mixer Unit
| US$8,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SRL-Z
Application
Liquid with Suspended Solids, Powder, Granules, Plastic Processing Mixer
Application Area
Chemical
Certification
CE, ISO
Condition
New
Heating Method
Self-Heating and Others
Mixing Drum Shape
Circular Groove
Stirring Type
Diving
Warranty
12 Months
Working
High Speed Mixer
Advantages
Low Noise and High Capacity
Electrics Parts
Siemens
Keywords
Plastic Mixing Machine
Inverter
ABB or Optional
Mixing Material
PVC PP PE Pigment
Rotating Speed
300rpm
Net Weight
1250(Kg)
Mixer Type
Agitator
Layout Type
Verticle
Operating type
Cycle Operating
Transport Package
Film Package or Woodcase Package
Trademark
XINTING
Origin
China Zhangjiagang
HS Code
8422303090
Production Capacity
10-1000kg/Hr
Packaging & Delivery
Package Size
300.00cm * 400.00cm * 400.00cm
Package Gross Weight
2800.000kg
Product Description

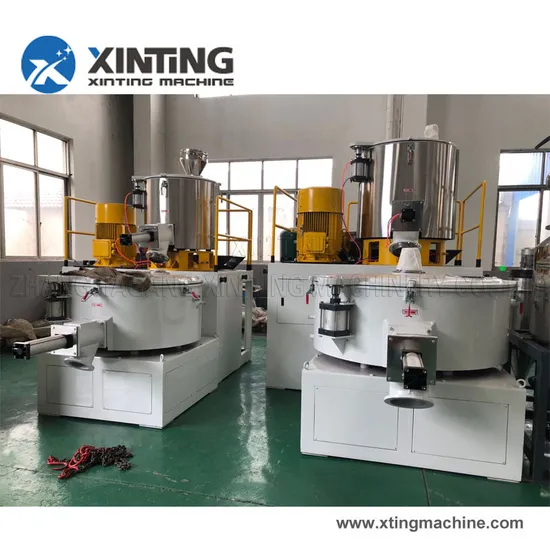

SRL-Z Series Heating/Cooling Mixer Unit Application :It is widely used to compound PVC resin with stab some other materials in the industry of PVC extrusion, such su: production of pvc ceiling, pvc pipe,pvc board,pvc profile,pvc pelletizing and so on .
Feature :
1.The technology of the mainshaft has two functions of electric and steam heating.
2.Two layers of sealing technology is adopted in the pot cover.The opening of the heating mixed cover adopted the airopening device and the opening of the cooling mixed cover adopted pneumatic start.
Parameter :
| Model | RF-SRL-Z100/200 | SRL-Z200/500 | SRL-Z300/600 | SRL-Z500/1000 | SRL-Z800/1600 |
| Total volume (L) | 100/200 | 200/500 | 300/600 | 500/1000 | 800/1600 |
| Effective Volume (L) | 65/130 | 150/320 | 200/360 | 330/640 | 600/1050 |
| Rotating Speed (RPM) | 650/1300/200 | 475/950/130 | 475/950/100 | 430/860/50 | 370/740/50 |
| Mixing time (Min.) | 8-12 | 8-12 | 8-12 | 8-15 | 8-15 |
| Motor power (KW) | 14/22/7.5 | 30/42/11 | 40/55/11 | 55/75/15 | 83/110/22 |
| Overall dimension(mm) | 1950*1600*1800 | 4580*2240*2470 | 4800*2640*2480 | 5600*3000*3100 | 5170*3200*4480 |
| Weight(kg) | 2200 | 3400 | 3600 | 6500 | 9800 |
Advantages:
Stainless steel paddle with scientific structure able to mix raw material completely; minimize load, save time and electricity;
Made of premium stainless steel, high strength and easy to clean.
Vertical structure with castor wheels, small size, removing easily.
Vertical reducer motor adopted ensures low noise and long operation hours.
Fast complete mixing, low energy consumption and high productivity.
Pail cover and bottom parts and compress formed precisely matched and durable.
Mixing time able to set within 0~30 minutes.
