Best Price China X-ray Industrial Imaging and Scanning Food Inspection Detector System for Foreign Object Metal Crystal Detection in Food Industry

Product Description

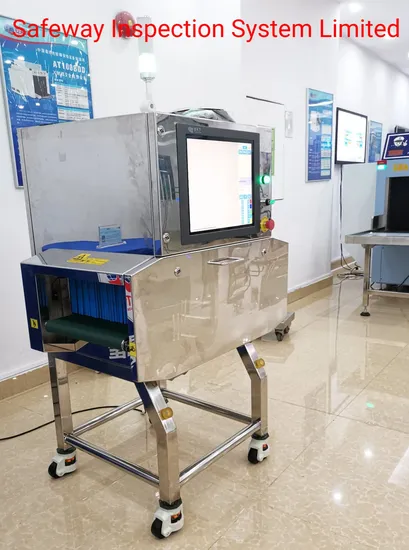

Safeway System X-ray foreign body detector AT4016
Introduction
AT4016 X-ray foreign body detector is a single-source X-ray foreign body detection equipment independently developed by Safeway System. The equipment uses embedded Linux operating system and integrated hardware configuration, the system runs fast, the operation is convenient, and the configuration resources are highly integrated!
Applicable place
The product is widely used in the food industry, medical industry, textile industry, aquaculture and processing industry, integrated circuit board industry, etc.; the quality control of the food industry meets HACCP and IFS certification, and requires identification of product defects such as damage, deformation, and missing. Air bubbles, etc., eliminate hidden product quality hazards
Working principle
The X-ray foreign body detector uses the penetrating ability of X-rays to effectively detect all kinds of metal foreign bodies or non-metal foreign bodies in the product, with higher sensitivity and high stability, helping to effectively improve the quality of the finished product, and not only can detect food ( Foreign objects in meat products, aquatic products, fruits and vegetables, additives, milk powder, chocolate, jelly, etc.), medical treatment, textiles (broken needles, abnormal labels, etc.) can also identify product defects: such as packaging cracks, air bubbles, content defects, etc. Achieve complete finished product inspection.
Leading advantage
Digital processing: The first all-digital foreign body detector in China, from signal transmission, reception, processing to image display, all-digital signal transmission, strong anti-interference ability.
Unique system: Embedded Linux operating system, adopts multi-core ARM, simple architecture, extremely low power consumption, energy saving and environmental protection, and has real-time status monitoring function to keep track of the equipment working process.
Parameter accuracy:
The product has high detectable accuracy, clear image and good visibility
Safety and environmental protection:
The equipment complies with industry safety protection, extremely low radiation dose and leakage; with one-key shutdown function
Stable and reliable:
The product development and production process are strictly controlled in accordance with the ISO9001 quality management system. Through strict high and low temperature tests, electrostatic interference tests, damp heat tests and vibration tests, the products are guaranteed to run continuously for more than 10,000 hours without failure.
Basic parameters
Channel size 440 mm (width) * 160mm (height)
Conveyor belt speed 3-60 m/min
Maximum load capacity 5kg
The longest test object 40CM
Best detection accuracy Stainless steel ball Φ0.4mm, stainless steel wire Φ0.2*2mm, ceramic Φ1.0, glass Φ1.0
Display 17-inch full-color touch screen
Protection grade IP66
Body material SUS304
Radiation safety
Single inspection dose is less than 1.5μGy
Leaked radiation dose rate is less than 0.3μGy/h (testing anywhere 5cm away from the outer surface of the equipment meets and is better than domestic and foreign health and safety standards)
Efficient radiation protection Adopt double-layer isolation, wear-resistant, strong protective curtain
X-ray generator
Digital interface Tube voltage 30-80KV (adjustable), current 1-3mA (adjustable)
Cooling/Working cycle Sealed oil cooling with additional fan cooling/100%
Equipment function
Mode function The device has main working mode and training mode; and according to different test items, there are two options of shielding function and non-shielding function in training mode
System function power-on self-check, multi-level user management, image management, curve diagnosis, system equipment information, 1-16 times stepless zoom, equipment information query, built-in report statistics, fast language switching, U disk upgrade software, one-key calibration, One-button shutdown, 9-level adjustable motor speed, self-learning of items, item management
Structural design
The frame incorporates advanced industrial design concepts, anti-rust, anti-corrosion, and anti-corrosion cable damage, which is firm and stable
Humanized design Ergonomic design, convenient and comfortable to use; friendly human-computer interaction interface
Easy to maintain, removable protective curtain, easy to clean body design
High-quality belt High-strength polyurethane 1.2mm green food-grade PU belt with better lateral stability
Installation data
Dimensions 850 mm (length) * 730mm (width) * 1679 mm (height)
Working temperature/humidity 5ºC~45ºC/0%~90% (non-condensing)
Storage temperature/humidity -20ºC~60ºC/10%~90% (non-condensing)
Working power supply AC 220V (±10%) 50±3Hz
Power loss 0.5KW
