Stainless Steel Liquid Soap Hand Gel Sanitizer Mixing Emulsifying Tank (KQ Series)
| US$5,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
KQ Series
Condition
New
Customized
Customized
Certification
ISO9001, CE
Tank Marerial
Metal Tank
Type
Low Temperature Storage & Transportation Equipment
Storage Objects
Solid, Liquid
Name
Stainless Steel Liquid Soap Hand Gel Sanitizer M
Material
Stainless Steel 304 /304L/316/316L
Capacity
100L-25000L
Wall
Single Wall /Jacketed Wall Type
Heating
Electric / Natural Gas /Steam
Application
Chemistry Industry
Mixer Speed
18-3600rpm
Cooling Funtion
Water or Cooling Liquid
Motor Brand
ABB /Simens /China Brand
Voltage ,Hz,Phase
Make It to Your Order .
Certificate
CE
Cleaning
CIP Cleaning System
Working Pressure
Made Based on Your Order
Accessories
Level Meter ,Sight Glass / Pressure Gauge etc
Loading Cell
Yes/ No
Transport Package
Wooden Box
Specification
100L-25000L
Trademark
KQ
Origin
China
HS Code
8479820090
Production Capacity
1000/ Year
Product Description

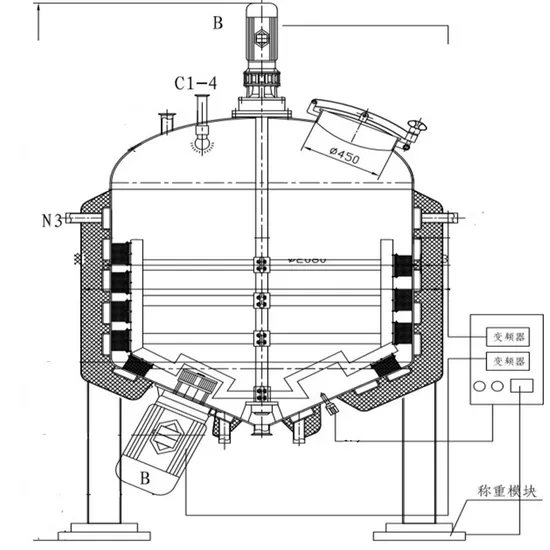

Stainless Steel Liquid Soap Hand Gel Sanitizer Mixing Emulsifying Tank (KQ Series )1. Our Tank for your ref :
2. Tank Paremeter :
| Products Name | Customizable Stainless Steel Large cosmetic making Equipment Homogenizer mixing tank for Lotion |
| Material | SS304/SS316L |
| Jacket: full jacket ,dimple jacket , coil tube | |
| Insulation layer: PU / rockwool | |
| as to the thickness, we can make it according to your requirement. | |
| Description: | Designed according to 3A standard, widely used for transfer viscous media in the food-processing, cosemtics and pharmaceutical industries |
| Heating mothed: | By electricity (oils or water), by steam , circulation heating (hot water or oil) |
| Configuration: | 1.manhole |
| 2.CIP spraying ball | |
| 3.adjusting feet | |
| 4.sight glass | |
| 5.temperature gauge | |
| 6.pressure gauge / vacuum gauge | |
| 7.breather | |
| Capacity: | 50L-10000L |
| Mixer Type: | High shear Homogenizer or Agitator ( anchor , frame , stirrer with side scraper , blade ,impeller ) |
| Mechanical seal: | SIC/SiC/EPDM(Standard) |
| Agitator power: | 0.55kw -75KW |
| Sealing option: | Sanitary single mechanical seal/Double mechanical seal with cooling system |
| Voltage: | 220V -480V |
| Motor: | ABB, SIEMENS , SEW , Domestic |
| Surface treatment: | Inner polished and outside polished |
| Availably connection: | Clamp, Thread Butt weld, Flange |
| Availably standard: | DIN, SMS, 3A, RJT, ISO/IDF |
| Operated: | Electic |
| Application scope: | Dairy, food, beverage, pharmacy, cosmetic, etc |
| Packaging Details: | Export Plywood case |
| Delivery details: | Usually within 25-30 days after receiving T/T down payment |
4. Application :
5. Customer For your ref :
Stainless Steel Liquid Soap Hand Gel Sanitizer Mixing Emulsifying Tank (KQ Series )
