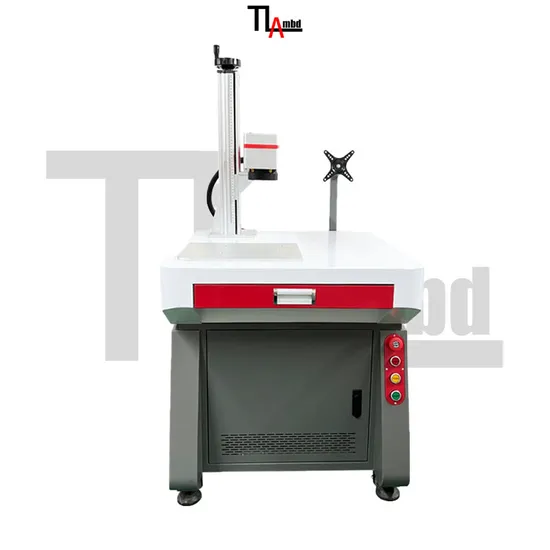

20W 30W 50W Fiber Laser Marking Machine High Quality Low Price for Metal Nameplate Logo Jewelry
| US$1,000.00-2,200.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
FT2-2
Applicable Material
Metal
Cooling System
Air Cooling
Technical Class
Pulse Laser
Laser Wavelength
Fiber Laser
Laser Classification
Solid Laser
Type
Optical Fiber Laser Marking Machine
Marking Method
Scanning Marking
Keywords
Fiber Laser Marking Machine
Function
Making Metal&Non Metal
Laser Power
20W/30W/50W/60W/70W/80W/100W/120W
Motherboard
Bjjcz
Software Support
Support Windows XP/7/8/10
Support Material
Metal&Non Metal
Laser Source Brand
Raycus
Max Position Speed
7000mm/S
Continuous Working Time
Continuous Working Time
Pulse Duration
90-120ns
Frequency
30kHz~80kHz
Min. Linear Width
0.01mm
Marking Depth
0~1.0mm
Spot Size
43um
Supported Image Format
BMP,JPG,JPEG,GIF,Tga,PNG,TIF,Tiff Ai,Dxf,Jpc,Plt,S
Transport Package
Wooden Box
Specification
115kg
Trademark
RHINO
Origin
China
HS Code
8456110090
Production Capacity
3000sets/Year
Packaging & Delivery
Package Size
98.00cm * 76.00cm * 116.00cm
Package Gross Weight
100.000kg
Product Description
Specification| Laser source brand | RAYCUS/MAX/JPT | 20W marking area | 110*110mm/150*150mm /175*175mm(marking light) |
| Laser source power | 20W/30W/50W/60W/70W/80W/100W/120W | 30W marking area | 110*110mm/150*150mm/175*175mm /200*200mm/220*220mm(marking light) |
| Max single pulse energy | 0.67mj | 50W marking area | 110*110mm/150*150mm/175*175mm /200*200mm/220*220mm/300*300mm |
| Pulse duration | 90-120ns | 60W/70W marking area | 110*110mm/150*150mm/175*175mm/200*200mm/220*220mm/300*300mm |
| Laser wavelength | 1064nm | 80W/100W/120W marking area | 110*110mm/150*150mm/175*175mm/200*200mm/220*220mm/300*300mm |
| Frequency | 30KHz~80KHz | Marking depth | 0~1.0mm |
| Laser power density | 80ZMW/mm2 | System environment | WINDOWS XP/7/8/10 |
| Max position speed | 7000mm/s | Repeat accuracy | 0.005mm |
