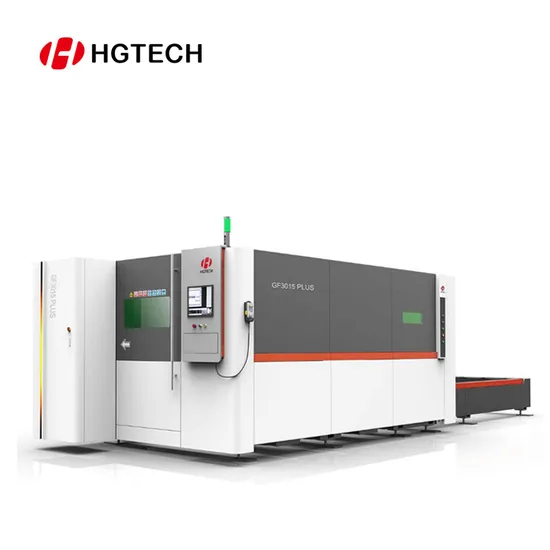

Hgtech 3015 1000W Fiber Laser Cutting Machine Sheet Metal Servo Power High Effciency Automatic Feeding Saving Material

Product Description

CNC Stainless Steel Aluminium Sheet Metal Fiber Laser Cutting Machine Price
(Model:GF3015)
Fiber Laser Cutting Machine Brief Introduction
HGLaser, professional Metal Cutting Machine manufacturers, with advanced metal laser cutting machine equipment, first-class technology, quality service, get good reputation in fiber laser cutting machine equipment industry.
In order to meet the needs of customers for cutting metal pipe and sheet, HGLaser launched the Metal Cutting Machine (Model:GF3015). This cutting machine is adopted the Taiwan famous screw guide, Panasonic servo and drive, the cutting machine can improve the working efficiency greatly. And the pipe diameter of cutting machine can up to 200mm (can be customized according to customer needs ). Moreover, the cutting machine unique design with rotary auxiliaries can solve the technical problems for cutting pipe and sheet.

Machine Model		GF3015	GF4020	GF6020
Cutting Area (LXW)		3000mmX1500mm	4000mmX2000mm	6000mmX2000mm
Laser Source		HGTECH-Raycus	HGTECH-Raycus	HGTECH-Raycus
Laser Type & Powert		Fiber & 1000/1500/2000/3000	Fiber & 1000/1500/2000/3000	Fiber & 1000/1500/2000/3000
Laser Wavelength		1070nm±10nm	1070nm±10nm	1070nm±10nm
CNC System		CYPCUT	CYPCUT	CYPCUT
Servo Motor		YASKAWA (Japan)	YASKAWA (Japan)	YASKAWA (Japan)
Laser Cutting Head		Raytools	Raytools	Raytools
Display		19'Industry LCD	19'Industry LCD	19'Industry LCD
Max Moving Speed		80m/min,Acceleration is 0.8G	80m/min,Acceleration is 0.8G	80m/min,Acceleration is 0.8G
Position Accuracy ( X and Y axis)		±0.05mm	±0.05mm	±0.05mm
Reposition Accuracy ( X and Y axis)		±0.03mm	±0.03mm	±0.03mm
Stroke	X-axis	1530mm	2030mm	2030mm
	Y-axis	3050mm	4050mm	6050mm
	Z-axis	100mm	100mm	100mm
Motion	X and Y axis	Rack & Pinion	Rack & Pinion	Rack & Pinion
Structure	Z-axis	Ball Screw	Ball Screw	Ball Screw
Power Supplier Requirement		380V 50/60Hz 50A	380V 50/60Hz 50A	380V 50/60Hz 50A
Max Loading (KG)		600KG	1300KG	1900KG
Machine Weight		≤4000kg	≤5000kg	≤6000kg
Appearance Size		4250mmX2430mmX1800mm	5555mmX3050mmX1800mm	7850mmX3050mmX1800mm

Metal Fiber Laser Cutting Machine Advantages
* High cutting speed: 2-3 times faster than YAG or Co2 laser
* Long lifetime span: laser source lifetime over 10 years with stable performance.
* High cutting accuracy: Finest laser beam up to 0.01mm
* Low maintenance: Almost totally free of Maintenance
* Most advance cutting machine on the world
The Optic Fiber Laser Cutting Machine Main Processing Materials
stainless steel, carbon steel, manganese steel, galvanized sheet, all kinds of alloy plate and rare metals.
The Optic Fiber Laser Cutting Machine Main Application Industry
sheet metal industry, kitchenware industry, elevator mobile phone industry, advertising industry, chassis cabinet industry, machinery parts processing industry, precision machining industry, automobile manufacturing industry, daily light industry, agricultural machineryand food machinery industry, hardware bathroom industry, Medical fitness equipment industry.
Fiber Laser Cutting Machine Details
1.The fiber laser cutting mchine's controller with a touch screen operating system:
Fiber laser controller installed on the computer.
Ytterbium laser cutting system, automatic optimized cutting path calculation, industrial computer installed software;
Touch screen operation system to control the laser head (adjust the distance between the laser head and metal material); wireless control handle can control the laser cutting head movement trajectory.
2.The fiber laser cutting mchine is adopts Lasermach(USA) and PRECITEC(Germany ) automatic focus laser cutting head (metal sensor) :Laser cutting head nozzle contact metal plate surface, cutting head automatically move up and down, high sensitivity, good stability. No obvious spark phenomenon.
3.The metal laser cutter with 3HP high-power water chillers: adopts water cooling method to keep the laser head always work in constant temperature(plus or minus 5 degrees), to ensure the the stability and fast operation of the laser.
4.The fiber laser cutting mchine with Raycus 1000W (IPG1000W) fiber laser generator:photoelectric conversion rate is high, high beam quality, work life of more than 100,000 hours, no maintenance costs.
5.Universal ball screw and jagged shaped working platform, loading metal material fast and keeping stable feeding work. jagged platform fixing strip can fix material to reduce the spark splash when cutting.
6.The fiber laser cutting machine is adopted Japan's Panasonic servo motor and drive: improve the cutting speed and stability. Positioning accuracy: ≤ ± 0.05mm; maximum moving speed 90m / min, maximum effective cutting area 1500 * 3000mm. The servo system has excellent dynamic response acceleration characteristics for smooth operation, reliable, no maintenance.
7.Self-service refueling, alarm system, smoke device: Laser cutting machine tracks can automatically be refueled, always ensure track lubrication. laser cutting machine alarm system to remind the situation of the role of the machine. Smoke device can extract the smoke in the cutting process, to protect the working environment.
8.Rotary aids: the unique design with rotary auxiliaries can solve the technical problems for cutting pipe.

ABOUT HGTECH
Wuhan Huagong Laser Engineering Co.,Ltd is one of the largest laser equipment manufacturers in China. HGLASER is the main subsidiary company of Huagongtech Co., Ltd. (Stock code: 000988) HGLASER is a national key high-tech enterprise, possessing technology centers and provincial key laboratories. Relying on the National Engineering Research Center for Laser Processing, National Key Laboratory for Laser Technology and Exhibition Center for Laser Technology Processing, HGLASER undertakes national key projects and scientific research projects.
After-Sale Service
1). Guarantee for the whole machine: 36 months
2). Providing professional service to customers, any call for technical help will be solved in 24 hours
3). Free training, free maintenance and free technical support within warranty period
4). We supply life-long free service in technical upgrading.

Q: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. We have exported to 180 countries worldwide. So please don't worry, you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Please advise us the following information, then we can recommend you the most suitable model, right now, don't hesitate to contact -China HGLaser!

1. The exact material you want to cut? (Stainless steel, carbon steel, mild steel, etc.)
2. The cutting depth on above materials?(max thickness, 3 mm, 5 mm, 7 mm, 15 mm....)
3. The working area you demand? (max dimension of material,width*length, 1500*3000 mm,...)
Need more information please feel free to contact us-HGLaser!---Right Now!!
