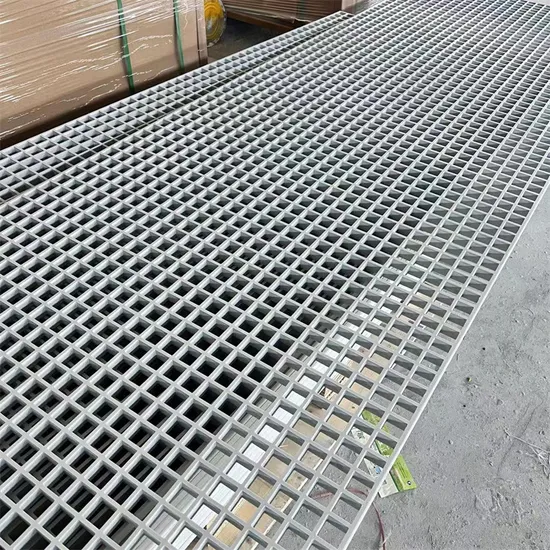

Non-Slip Standard Shipping Centers Light Grey FRP Fiberglass Grating

Product Description

FRP Molded Grating
Fiberglass Grating is a lightweight and sound alternative to Steel or Aluminum Gratings The color of molded FRP grating is made by color pigment which is compatible to the resin, so its color is not superficial, thus keeping the gratings overall color lasting longer time. Abrightly colored FRP grating can improve your production environment, changing the constant grayness of a corrosive environment and adding color to a modern factory.Sinogrates molded FRP grating is high strength, impact resistant, corrosion resistant, fire retardant, anti-slip and anti-aging.It meets or passes ASTM E-84 fire retardant, Anti-slip R13 (AS4586-2013), DNV, ABS, EU REACH SVHC environmental testing or certification.
MOULDS SPECIFICATION TABLE
Over the years, Nantong Sinogrates has been steadily growing and has closely followed the developments in the fibreglass market. Innovation and continuousimprovement of its manufacturing processes have always been a fundamental objective of this company. A qualified team is devoted to designing and implementing new moulds based on the specific customer requirements.

PRODUCTION DETAILS FRP Grating Structure

RESINS OPTIONS GUIDE
When selecting grating, be certain to review the RESIN SELECTION GUIDE for your application

	Resin Type	Resin option	Properties	Fire retardant (ASTME84)	MAX ºC
	Type P	phenolic	lower smoke and superior fire resistance	class 1,5 or less	150 ºC
	Type V	vinyl ester	superior corrosion resistance and fire retaddant	class 1,25 or less	95 ºC
	Type I	isophthalic polyester	industrial grade corrosion resistance and fire retardant	class 1,25 or less	85ºC
	Type O	ortho	moderate corrosion resistance and fire retardant	class 1,25 or less	85 ºC
	Type F	lsophthalic polyester	Moderate Corrosion Resistanceand Fire Retardant	class 1,25 or less	85 ºC
	Type E	EроXy	Excellent corrosion resistanceand fire retardant	class 1,25 or less	180 ºC

Producting proceed

Clip Fastening & Installation Methods To ensure ease of installation, please review all relevant technical documentation. Take care when fasteningand seek assistance if required. For further info regarding installation please contact . The section below illustrates standard installation methods that can be applied to moulded grating. Clip and fastening selections should be made according to the substrate material in use.
FRP Grating Applications Sinogrates has high-performance gratings that are suitable for use in specific areas with higher technical requirements.In particular,Sinogrates offers a line of gratings with high chemical resistance, which are suitable for use in chemically aggressive environments such as chemical, galvanic, extraction, manufacturing industry (tanneries, paper mills, etc.) and waste treatment. This line is characterized by the use of pure isophthalic or vinylester resin, which is free of additives, and the use of a higher amount of resin compared to the standard grating in order to ensure total coverage of fibreglass.

About US!
Nantong sinogrates composite material technology co., Ltd is one leading factory located in Nantong City , Jiasu Province, it specializing in manufacturing fiber glass reinforced plastic (FRP) products. the main products series related with FRP, It inclued FRP molded grating, FRP putruded grating, FRP Pultruded profiles, FRP Handrails systems and FRP hand-lay up products,such as I beam, Angle, Channel, Square box section, etc. FRP grating systems are frequently used in the manufacturing of a large assortment of products including stair treads, platforms, garden and so on. We are the factory certificated by ISO9001, with stricity international quality management systems. Per the Aulo-maching for mold grating, it would enhance the output of FRP product, besides professional laboratory with various experimental equipments, which can carry load span bearing tests of FRP products to ensure that FRP products's strengh meets different standrads, with high quality, high production efficiency, competitive price and professional technicians and salesman, we have been devoting ourselves to satisfying our customers requirements.

JEC Composite Show In Exhibition
Packing and Shipping
Certificates
FAQ What types of engineering load data is available for grating products Uniform, concentrated point load - molded grating only, and concentrated line load tables are available for all our grating products.
What information is required to make a good resin system recommendation In order for technical services to properly formulate a specific resin, they must have information about the application including chemical type, chemical concentration, temperature, and exposure level of the chemical to the product.
What type of grit is used on standard grit top grating products? Sinogrates standard grit is a quartz grit which is integrally applied, cured and sealed onto the surface of the grating.
When placing a grating order, what accessories should also be considered? When placing an order, also consider these accessories: hold-down clips to secure grating, grating legs to elevate grating, EZ angles for corrosion resistant ledges, epoxy spray to seal cuts and penetrations, or saw blades to cut material. Why should I seal areas on FRP products that have been cut, scraped, scuffed or scratched? Any area that has been cut, scraped, scuffed or scratched should be sealed to prevent corrosive chemicals from reaching exposed glass fibers which maintains corrosion resistance, thus extending the life of the product. What ergonomic benefits do Fibergrate FRP products have? Unlike stiff metals, FRP provides deflection and resiliency to cushion steps and also reduce back and leg fatigue. What are the benefits of Sinogrates® molded grating? Molded grating has superior corrosion resistance; bidirectional strength; high impact resistance; slip resistance; and advantages in installation, fabrication and utilization. Nantong Sinogrates is always up to date on the relevant regulations relating to the specific applications. The company is therefore able to provide the customer with the most appropriate technical solution and guarantee product compliance with all applicable fundamental regulations.
