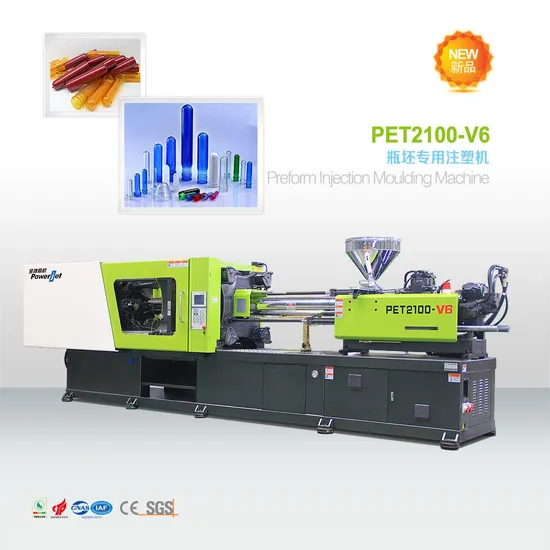

Powerjet Pet2100-V6 Plastic Bottle Making Pet Perform Injection Molding Moulding Machine

Product Description

PET PREFORM INJECTION MOLDING MACHINE
Powerjet PET Preform Injection Molding Machines are specialized for different sizes of PET preforms. With PET special screw, it highly increases the plasticizing speed and shot weight.
Shoot Weight - 4975g(Max)
Clamping Force - 128~680(Ton)
Motor Type - Servo Or Variable
Applications - Specialized For Different Sizes Of PET Preform
FEATURES:
1:PET Special Screw
PET screw highly increases the plasticizing speed and shot weight, lowers the plasticizing temperature and AA value, also achieves better product transparency.
2:Energy-Saving 30%~50%
The servo motor control system can save energy by 30%~50%, while the variable pump control system can save energy by 25% ~ 45%.
3:Pressure Synchronization System
Optional with pressure holding and charge at the same time, which can increase productivity by 15%~25%.
4:Max Shot Weight
Different models are available for the choice of customers, Max shot weight: 5000g
Product Description
Product Parameters

	DESCRIPTION	UNIT	PET2100-V6/S6
CLAMPING UNIT	Clamping force	KN	3300
	Opening stroke	mm	600
	Max.datlight	mm	1300
	Platen size	mm	670*670
	Space between bars	mm	985*985
	Max.mold height	mm	700
	Min.mold height	mm	300
	Ejector stroke	mm	180
	Ejector force	KN	184
INJECTION UNIT	Screw diameter	mm	83
	Shot volume	cm3	1840
	Screw stroke	mm	1642
POWER UNIT	Hydraulic system Pressure	MPa	17.5
	Pump motor power	KW	37
	Heater power	KW	28

Packaging & Shipping
Company Information
Our Services
FAQ
Q1: Are you a manufacturer or trading company?
A1: We are a factory for plastic machines. Over 23 Years Experience In Manufacturing Injection Molding Machine And Blow Molding Machine.
Q2: Delivery time?
A2: Normally Machine Delivery from the factory in 0-60 days after receiving the down payment. (During Chinese Public Holidays like National Day or Chinese New Year, the delivery time should be 10-30 days longer accordingly).
Q3: Where is your factory located?
A3: Our factory is located at No.5 Chuangxin Xi Road, Leping Town, Sanshui District, Foshan City, Guangdong Province, China. 1h drive from Guangzhou to our factory. Welcome to visit our factory.
