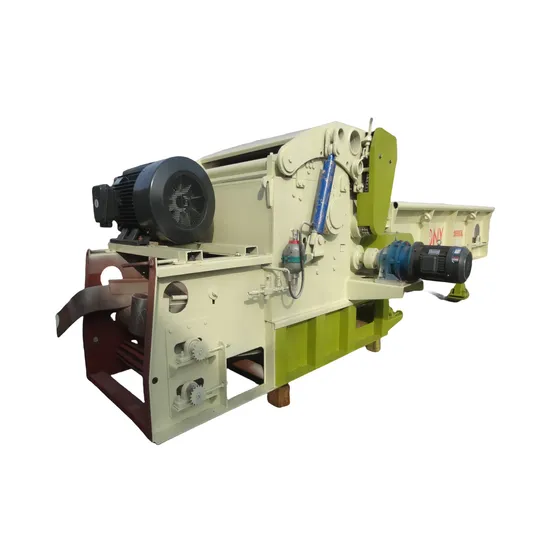

Tony Wooden Pallet Crusher Wood Chipping Shredder Machine Wood Chipper

Product Description

Product Description A wood chipperr is a specialized piece of equipment designed to reduce various wooden items and scrap wood into smaller pieces or fragments. It accomplishes this by using the impact force generated by high-speed rotating blades or hammers to break down the wood into chunks or shavings. Wood crushers are commonly employed in the woodworking and recycling industries, as well as in the processing of biomass energy.
These machines can handle a wide range of wood materials, such as old furniture, construction templates, pallets, branches, and tree trunks. The resulting wood chips or particles can be utilized for various purposes, including paper production, plywood manufacturing, animal bedding, or as fuel for heating systems, thus providing both economic value and environmental benefits.Depending on specific requirements, there are several types of wood crushers available, like hammer mill crushers, disc-type wood crushers, and multifunctional wood crushers. Each type has its unique design features to meet different scale and demand for wood crushing.
Main Features of Wood Chipper
1.New design blade rotor,blades are easy to replaceable.
2.Screen mesh size is customized for different requirements on size of end product.
3.Reverse feeding device,belt conveyor can be reversed positively.This device can protect machine,when large wood is encountered
4.Higher capacity than the traditional type,larger feeding size,could chipping log diameter 200-400mm

Model	TPC1000	TPC1300	TPC1400
Inlet (mm)	100	1300	1400
Blade	6	6	6
Max Diameter (cm)	20	30	35
Chip size (mm)	25-35	25-35	25-35
Capacity (Ton)	7-10	10-15	15-20
Main Motor Power (kw)	90	132	160
Weight (kg)	7000	11000	13000
Conveyor motor power (kw)	3	4.5	7.5

Equipment display

Accessories introduction
_____________________________________________________________________________

Spare Parts: Knife and Roller
Material: Alloy steel and stainless steelWorking Life: Knife--Around 2000-3000 hours; Rollers-around 3000 hoursManufacturing Technique: Professional heat treatment ---American Abar Ipsen Vacuum Quenching Oven, can make the hardness above HRC62.
1. Feeding: To transport wood with nails.
2. Feeding pressure roller: control the feed rate and keep the sheet does not slip and no feed situation.3. Spiral crushing roller: in the roll along the circumferential direction of the welding knife, to ensure that the crushing roller
in the circumferential direction of the same force.
4. The template is broken with the feed and broken sync, to achieve broken uniform
5. Ffeeding roller with UCK series bearing plus spring compresion mechanism, can be adapted to the different thickness of template.6. Feeding roller and crushing roller with different power system, easy to control.
Product Advantages
Interlocking blades ensure thorough material crushing. Blades made of special material are hard and provide uniform shredding. Rugged construction with grid-like reinforcement plates ensures box durability. Automatic button control for safety, convenience, efficiency, and time-saving. Safety signs and labels enhance user and operational safety. Equipped with automatic nail removal device for efficient and convenient use.
Customer site


promise service


Company Introduction
TONY is a professional manufacturer and exporter engaged in the research, production, sale and service of Biomass wood pellet line, wood pellet mill, grinding equipment, crushing equipment, drying equipment, cooler and other screening, conveying equipment.Having developed the pellet machines with reliable functions, reasonable design, energy saving and high efficiency low consumption, our vertical ring die pellet mill which use special gear transmission has sold very well during home and aboard.
We always supply the most suitable machines for customers with excellent quality and competitive price.
FAQ
1.Q:Are you a manufacturer or agency?
A:We are a manufacturer with our own factory.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Zhangqiu City, Shandong Province, China. You can fly to Jinan airport and then we will
pick you up(40 minutes by car) . All our clients are warmly welcome to visit us!
3.Q:How does your factory do regarding quality control?
A:"Quality is priority. We always attach great importance to quality controlling from the very beginning to
the very end. Our factory has gained CE authentication.
