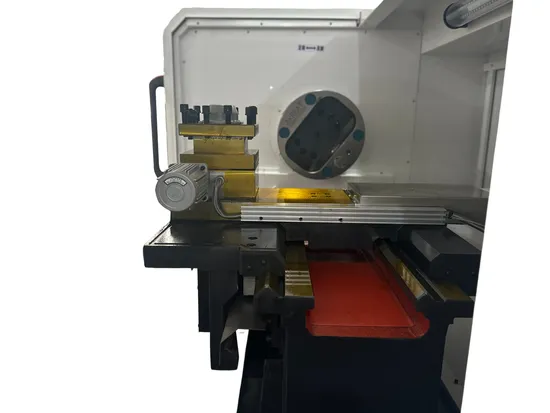

Ck6180-1500 High Speed Five Axis CNC Horizontal Vertical Machining Center Milling Machine Large Machining Center Metal Lathe
| US$13,000.00-18,900.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CK6180-1500
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Point to Point Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Condition
New
Product Type
High Precision Horizontal CNC Lathe
Net Weight
2000kg
Precision
High Precision
Spindle Nose
A2-8
Cooling Pump
210W
Transport Package
Seaworthy Packing
Specification
2300*1550*2000mm
Trademark
JT
Origin
China
HS Code
8458110000
Production Capacity
1500 Sets/Year
Product Description
Product Parameters
Feature:
High rigidity integral lathethe integrated design of the bed and bed base, the ultra-wide guide rail bed, and the reasonable arrangement of ribs make the bed have high rigidity and stability, and good chip removal and waterproof performance High rigidity and long life headstockthe design of the spindle bearing is arranged in the form of a heavy-duty machine tool to ensure the rigidity of the spindle. The cooling adopts the external circulation oil cooling design to ensure the high reliability of the lubrication of the main shaft bearing, and at the same time reduce the temperature rise of the main shaft bearing, the main shaft has high precision and the main shaft bearing has a long service life.
| ITEM | UNIT | CK6180-1500 | |
| General rule | CNC system | GSK | |
| Net weight | kg | 5600 | |
| Power specification (Standard configuration) | mm | Three-phase 380V/50HZ | |
| Scope of work | Maximum tuming diameter of the bed | mm | 800 |
| Maximum tuming diameter through sliding plate | mm | 480 | |
| Maximum travel of X-axis (Transverse) | mm | 470 | |
| Maximum travel of Z-axis (Longitudinal) | mm | 870,1620,2120,3120 | |
| Bed | Width of bed guide rail | mm | 4600, Bed foot'integral casting |
| Maximum centricity | mm | 750,1500,2000,3000 | |
| Spindle | Main shaft head model | C-11 | |
| Spindle inner hole taper | Metric (1:20) | ||
| Spindle bore | mm | 104 | |
| Spindle speed change level teaching manual level 3 | rpm | 40-125;110-350;290-950 | |
| Spindle motor power | kw | 15 | |
| Manual collet size | mm | Single-acting 630 fourjaw Manual Chuck | |
| Servo shaft | X-axis screw rod | 3210 | |
| Z-axis screw rod | 6310 | ||
| Working accuracy | Rapid feed speed of X/Z axis | m/min | 8;4 |
| Positioning accuracy | mm | X-axis ≤ 0.002 Z-axis ≤ 0.025 | |
| Repetitive positioning accuracy | mm | X-axis ≤ 0.015 Z-axis ≤ 0.010 | |
| Roundness | mm | ≤ 0.01 | |
| Diameter unifomity | mm | ≤ 0.03/iength 300 | |
| Flatness | mm | ≤0.02/diameter 300 | |
| Surface roughness (Steel parts) | um | ≤Ra3.2um | |
| Tailstock | Diameter of tailstock sleeve | mm | 120 |
| Tailstock sleeve stroke | mm | 250 | |
| Tailstock center taper hole | MT6# | ||
