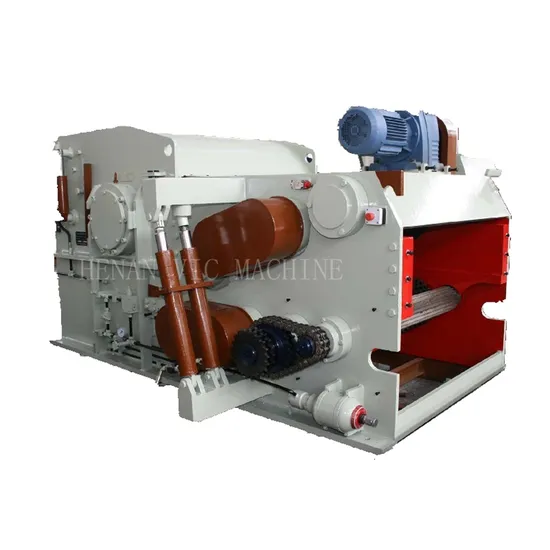

Big capacity drum type wood chipper
| US$5,000.00-10,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
BX
English User Manual
Yes
Warranty Time
1 Year
Delivery Time
Within 10 Days After Receive Deposit
Model
4 Models Avaliable
CE
Yes
Type
Impact Crusher
Object
Wood
Drive
Hydraulic
Crushing Degree
Intermediate Crusher
Crushing Style
Extruding and Milling
Principle
Roller Culling
Cutter Material
Hard Alloy
Finished Surface
Cut Off Tool
Compressive Strength (For Crushing)
<100MPA
Tongs′ Features
Adjustable Tongs
After-sales Service
online
Warranty
1 year
Transport Package
Wood Box
Specification
CE, SGS
Trademark
VIC
Origin
China
Production Capacity
1000 Sets Per Year
Packaging & Delivery
Package Size
267.00cm * 215.00cm * 150.00cm
Package Gross Weight
7.000kg
Product Description
Woodog drum wood chipper Product Description InstructionThis drum chipper is composed by machine body, cutting knife, feeding material rollers, conveyor, hydraulic pressure system and so on. It has advanced structure, high quality cutting blades, wide operating range, easy maintenance.
Cutting material is mainly small size timber, timber-cut, residues of wood working(such as branches, tree, slab, log and so on), also can be straws(such as cane, reed, bamboo and so on)
Main date
| Model | BX2113 | BX218 | BX216 | BX215 |
| Knife roller diameter(mm) | 1300×780 | 800 | 650 | 500 |
| Knife number(huddle) | 3 | 2 | 2 | 2 |
| Feed-in material door size(mm) | 400×700 | 310×680 | 240×540 | 460×200 |
| The diameter of raw material(mm) | 300 | 240 | 200 | 160 |
| Final product's length(mm) | 25-35 | 15-35 | 35 | 25-35 |
| Feeding speed(m/min) | 32 | 40 | 35 | 43 |
| Knife roller rotate speed(r/m) | 420 | 650 | 590 | 592 |
| Capacity(t/h) | 20-28 | 10-15 | 6-8 | 4-5 |
| Weight(ton) | 11.8 | 7 | 4 | 2.9 |
| Power of main motor(kw) | 220 | 110 | 55 | 45 |
| Feeding-in material roller motor power(kw) | 7.5X2 | 4x2 | 3X1 | 2.2X2 |
| Outside diameter(mm) | 3670×2517×2050 | 2670×2150×1500 | 1980×1950×1250 | 1540×1240×1020 |
More photos
Control box
Double tooth roller
Package and shipping
Our factory:
Service process:
Customers buy the products sold by our company, is only the beginning of the relationship with our company, but also the beginning of the work of the after-sales service department, in the whole stage of customer use of the machine, all our after-sales service personnel with thoughtful, meticulous, enthusiastic and timely service, so that customers can easily use the equipment without worries. We can truly experience the convenience and value created by our products for customers.
