Customized Zero Windows Power Supply HDMI USB Portable Smart HMI Mmi Raspberry Pi 3 4 5

Product Description

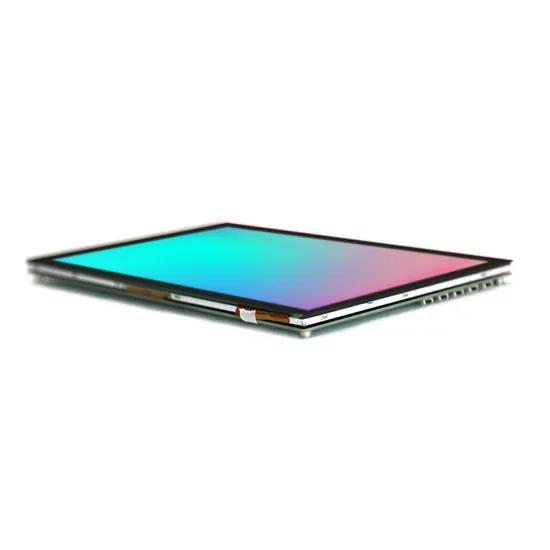

Raspberry Pi Touchscreen LCD Monitor 7" & 10.1"
IPS 1024X600 USB HDMI Portable Capacitive Touch Display
Compatible with Raspberry Pi3b Pi4b, Windows Driver-Free
Size 7 Inch Specification:

Screen Size:	7 inch
Aspect Ratio:	16:9
Module Dimension(W*H*T):	165.30*121*7.75mm
Active Size:	154.21*85.92mm
Brightness:	250nit
Resolution:	1024*600
Display Mode:	Touch Pad
Display Type:	IPS LCD
Interface Type:	USB,HDMI
Input Signal:	HDMI
Color Numbers:	16.7M
Backlight:	White LED
Operating Voltage:	5V
Operating system support:	Raspbian, Linux, Android, Windows, etc
Operating Temperature:	-20 ~ +60ºC
Storage Temperature:	-20 ~ +70ºC

Size 10.1 Inch Specification:

Screen Size:	10.1 inch
Aspect Ratio:	16:9
Module Dimension(W*H*T):	247.09*178.28*7.75mm
Active Size:	236*143.2mm
Brightness:	250nit
Resolution:	1024*600
Display Mode:	Touch Pad
Display Type:	IPS LCD
Interface Type:	USB,HDMI
Input Signal:	HDMI
Color Numbers:	16.7M
Backlight:	White LED
Operating Voltage:	5V
Operating system support:	Raspbian, Linux, Android, Windows, etc
Operating Temperature:	-20 ~ +60ºC
Storage Temperature:	-20 ~ +70ºC

Production Features:HD Visual Enjoyment:
Raspberry Pi touchscreen with HD 1024x600 resolution, 16.7M(8bit) color numbers give high color restore the display. Rectangular ratio 16:9 display format conversion. IPS 170° full wide viewing angle gives you a crystal-clear viewing experience of all your content.Multiple Application:
Supports Raspbian/Win7/Win8/Win10(Plug and play), Android/Linux (need to be configured first). And you can download Installation Manual for Raspberry Pi from the selling page. ( Note: the HDMI-Micro HDMI cable especially for Raspberry Pi 4, HDMI-HDMI cable for Raspberry Pi 3)Low Consumption:
Low power consumption and have a good effect connect with a Windows computer, no trouble with installing drivers for various systems.Wide Touch Area:
Most of the screens on the market will have these touch problems if the software is not adjusted, but this small HDMI screen no worries to reach the side of the screen.Plug & Play:
Equip with Micro USB and HDMI port support. Connect the screen to the device via the HDMI interface and power it via USB. To achieve the touch function powered by USB, do not require a power cord and drive-free.
Company Profile:
Head Sun Co.,Ltd. is a new high-tech enterprise, established in 2011 with an investment of 30 million RMB.
It is occupied 3,600 square meters as office and factory area with 200 employees which is located in Huafeng Science & Technology Park,Shenzhen,China.
We focus on the R&D and manufacture of touch panel, LCD screen with TFT LCD or IPS LCD for over 13 years, including stretched bar adertising sigange, square monitor, etc.
Besides the conventional standard products, we also offer custom OEM ODM services, such as help customers to offer product designs and customize touch screens and TFT LCD modules according to customer requirements and drawings and data sheets.
Certifications & Workshop:
Package & Shipping:
Exhibitions:
FAQ:
Q 1. What service do we offer?
Answer: We are a professional manufacturer of Projected&Surface Capacitive Touch Panels/Screens and all sizes of LCDs, we can help you design and do customized Touch Panels.
Q 2. How long could I get a reply to my inquiry?
Answer: Buyers will receive a reply within 12 hours.
Q 3. What is the delivery time?
Answer: For samples:15-20 days after getting the sample fee (Professional Custom-made)
For cargo:25-30 days after the receipt of funds.
Q 4. What is the payment term?
Answer: T/T, Paypal, Western Union, etc.
For samples: payment in advance.
For mass production: 50% deposit and 50% balance before shipment.
Q 5. How do you control the quality of the items?
Answer: Each product will be strictly tested one by one before shipping out.
Q 6. How long is the warranty?
Answer: Generally the warranty period is one year. It depends on different products.
Q 7. How is after-sales service?
Answer: Our sales & engineer will provide sustained support and guidance on the technique.
Q 8. What method of packaging do you use?
Answer: The packing with anti-static bag+ bubble bag +foam box +strong outer carton.
Q 9. What kind of transportation do you offer?
Answer: For small orders & quantities, the goods will be shipped by express like DHL, TNT, Fedex, UPS, and EMS with the customer's account.
Adopting Air or sea and freight collect from the buyer for cargo with large packing.
