Stack Type Flexo Printing Machine for Label and Paper and Plastic Film Printing with Multi Function

Stack Type Flexo Printing Machine for Label and Paper and Plastic Film Printing with Multi Function

US$15,000.00-30,000.00 1 Set (MOQ)

Basic Info.

Model NO.
BCST
Printing Page
Double Faced
Printing Color
8 Colors
Anilox Roller
Ceramic Anilox Roller
Dryer
UV& IR
Type
Ink
Embossing Structure
Flexo
Structure
Stacked
Application
Flexible Packaging Printing
Automatic Grade
Automatic
Printing Speed
60m/min
Transport Package
Wooden Case
Specification
320
Trademark
DB
Origin
Shanghai
HS Code
8443160090
Production Capacity
50sets/Year

Product Description

Brief introduction
Coated and uncoated paper for paper cup, paper box and paper bag,non woven fabric and non-shrink film roll material etc.
Technical parameter
Model BCST-320 BCST-450 BCST-570 BCST-650 BCST-950 BCST-1050 BCST-1200
Max.Printing Speed 70m/min
Max. Web Width 330mm 460mm 580mm 660mm 960mm 1060mm 1210mm
Max. Printing Width 320mm 450mm 570mm 650mm 950mm 1050mm 1200mm
Unwinding Dia. 600mm 600mm 600mm 1000mm 1000mm 1000mm 1000mm
Rewinding Dia. 600mm 600mm 600mm 600mm 1000mm 1000mm 1000mm
Power 25kw 30kw 35kw 40kw 55kw 60w 70w
Repeat Printing 180.975~444.5mm
Precision ±0.15mm
Dimensions 2.7*1.4*2.2m 2.7*1.6*2.2m 2.7*1.7*2.2m 4.5*1.8*2.2m 5.2*2.1*2.2m 5.2*2.2*2.2m 5.4*2.5*2.4m
Weight 3000kg 3500kg 4000kg 4500kg 6000kg 6500kg 7000kg

Machine picture

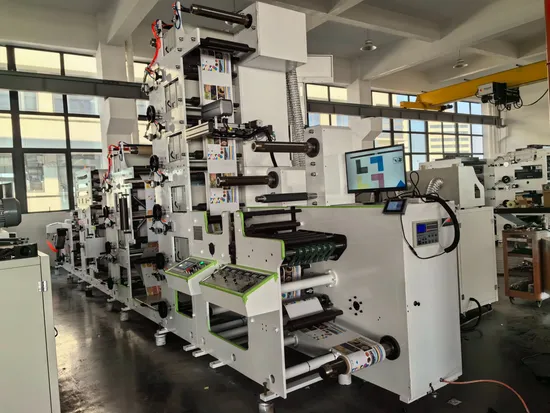

Whole machine
Panel
Printing unit
Camera
Diecutting station
