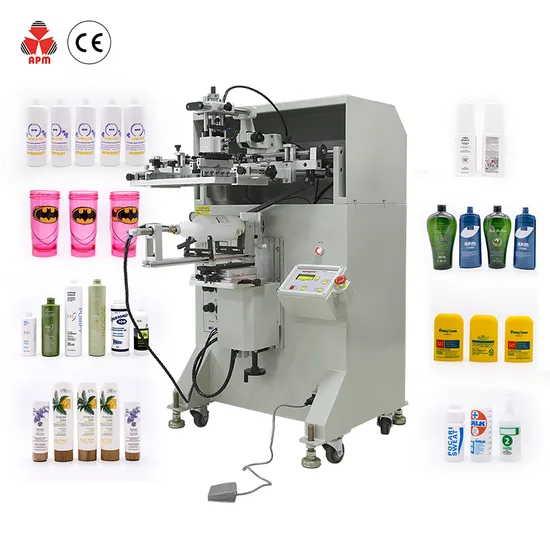

Semi Automatic Flat Round Oval Bottle Screen Printing Machine

Product Description

Product Description
Application:
Cylindrical/oval/square plastic/glass bottles with UV ink or solvent ink printing.
Printing objects such as bottles, cups, cans, bath bottles, shampoo bottles, cosmetic bottles, etc.
General Description:
1. Easy operation and programmable panel
2. XYR worktable adjustable
3. T-slot, flat with vacuum, round and oval functions available and easy conversion.
4. Printing stroke and speed adjustable.
5. Easy fixture adjustment for conical printing 6. CE standard machines
Tech-data

Machine model	S250	S350	S650(round,oval)	S1000(round,oval)
Max. printing size	150*220mm(Φ75mm)	250*320mm(Φ110mm)	200*630mm(Φ200mm)	300*1000mm(Φ300mm)
Speed(pcs/h)	1200	1100	900	700
Weight	135kgs	150kgs	170kgs	260kgs
Machine size	950*800*1250mm	1030*850*1280mm	1150*880*1350mm	1650*1300*1400mm
Power supply	110/220V,50/60HZ,40W	110/220V,50/60HZ,40W	110/220V,50/60HZ,50W	110/220V,50/60HZ,50W

Standard Features:
1.Electro-pneumatic controlled
2.Programmable set-up
3.Pneumatic controlled with shock absorbers
4.Vertical head lift with up/down lock
5.Linear ball bearings on hardened shafts
6.Foot switch controlled
7.Squeegee tilt, skew, and height adjustments
8.Screen frame angle adjustment
9.Universal fixture bar for mounting custom tooling
10.Bottle inflation system with regulator
11.Bottle inflation is synchronized with print cycle
12.Regulated squeegee pressure with pressure gauge
13.Floor levelers & casters
14.Emergency stop button installed, safety guarding is optional
Printing samples
Cylindrical/oval/square plastic/glass bottles with UV ink or solvent ink printing.
Printing objects such as bottles, cups, cans, bath bottles, shampoo bottles, cosmetic bottles, etc
