Multi-Functional Milling Machine with Advanced CNC and RAM-Type Design

Product Description

Product Description

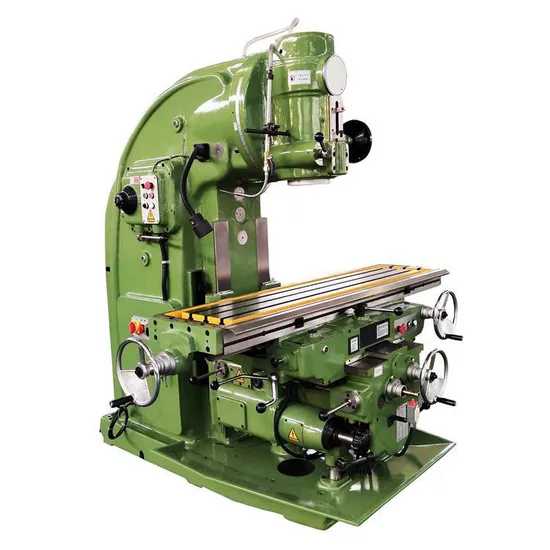

Factory vertical milling machine X5040 X5032 Milling machine Universal Milling Machine Tools X6140 Vertical Knee Type Conventional Manual Mills
Introducing our exceptional X series heavy bed-type universal milling machine, equipped with a cross table that melds an impressive unladen weight, broad guides, and robust drive power for unmatched cutting prowess. The universal milling head boasts an innovative design, allowing it to swivel seamlessly on dual planes, granting the flexibility to be positioned at nearly any spatial angle. Experience the convenience of infinitely variable feed on the Y- and X-axes, with the capability for rapid traversal on all axes, ensuring maximum efficiency. Our expansive clamping table provides ample space to accommodate a variety of workpieces and clamping devices, making it the ideal choice for both industrial applications and machine manufacturing. Coupled with comprehensive equipment, this machine is designed to elevate your manufacturing capabilities.
1. More expansive working area (400*2000mm) to handle large-scale projects with ease.
2. Enjoy the advantage of infinitely variable feed, allowing for precise control and adaptability across various milling tasks.
3. Designed for horizontal milling with outer arbor support, enhancing stability and precision during complex operations.
4. The spindle employs energy-efficient braking, delivering a large starting torque and ensuring quick, reliable stops for enhanced operational safety.
5. Offers three versatile worktable movements in X/Y/Z directions: manual feed for hands-on precision, motorized feed for consistent accuracy, and motorized fast forward for time-saving efficiency.
6. The guide rails across X, Y, and Z directions undergo ultrasonic quenching, with precision grinding and careful scraping, ensuring long-lasting durability and smooth operations.

Product Parameters

Specifications	Units	X5032	X5040	X5045
Table size	mm	1320x320	1700x400	2000x450
T-type slot numbers / width /space	mm	3-18-70	3-18-90	18
Max. load of table	kg	500	800	800
Longitudinal travel (manual/auto)	mm	700/680	900/880	1800
Transverse travel(manual/auto)	mm	255/240	315/300	400
Vertical travel (manual/auto)	mm	370/350	385/365	460
Cutting feed speed	mm/min	X.:23.5-1180.Y:15-786.Z:8-394	X.Y:23.5-1180. Z:8-394	X.Y:10-1000 Z:10-450
Rapid feed speed	mm/min	X:2300.Y:1533.Z:770	X.Y:2300..Z:770	1800
Spindle travel	mm	70	85	85
Distance between spindle nose and table surface	mm	60-430	130-515	30-600
Max. swivel angle of table		±45°	±45°	±45°
Spindle speed step	(steps)	18	18	18
Spindle speed range	rpm	30-1500	30-1500	30-1500
Spindle motor power	KW	7.5	11	11
Overall dimensions	mm	2294x1770x1960	2560x2130x2298	2560x2160x2400
Machine weight	Kg	2800	4250	5100

Detailed Photos
Machine Features
1) Our exceptional machine tool seamlessly integrates a robust bed, a versatile lifting platform, an adaptable worktable, and a sophisticated main transmission system. Enhanced by both main speed change capabilities and a state-of-the-art lubrication system, it also includes a superior cooling system, alongside other essential components. This harmonious blend ensures unparalleled performance and efficiency.
2) Engineered for power and precision, this machine tool boasts ample power and an impressive speed range. It maximizes tool efficacy, allowing for high-speed cutting using carbide tools, enhancing productivity and efficiency like never before.
3) Experience ultimate control with our machine tool's worktable, offering both manual and motorized feeding in vertical and horizontal directions. Powered by a precision-engineered feed box, enjoy 8 diverse feed speeds and an additional rapid feed speed. The masterful main transmission utilizes gear technology, delivering high efficiency, immense torque, and an expansive speed range for a multitude of applications.
Our Advantages
Packaging & Shipping
Company Profile
Nestled in the heart of China, Henan Rowdai Machinery Equipment Co., Ltd. stands proud in Zhengzhou, the bustling central hub of innovation. With extensive experience in exporting machinery, we excel in delivering not only products of unwavering quality but also unparalleled customer service. Our diverse array of machine tools caters to the international market, offering everything from lathe machines to CNC lathe machines, and beyond. Our inventory includes an impressive selection of machinery such as Milling Machines, CNC Milling Machines, CNC Machining Centers, and so much more. In addition, we supply Grinding Machines, Hydraulic Presses, Bending Machines, Drilling Machines, Press Brakes, Shearing Machines, and comprehensive machine tool accessories. Our dedicated team boasts an expertly trained engineer with years of invaluable experience, ready to support our clientele with precision and expertise. Our engineers are adept at meticulously inspecting goods prior to shipping and adeptly managing all facets of the production process to guarantee exceptional outcomes. Our seasoned professionals ensure that every aspect of production is tracked seamlessly, embodying the company's commitment to excellence. Our relentless dedication to quality and service positions us as a leader in machinery supply, always striving for perfection in every product we offer. Choose Henan Rowdai Machinery Equipment Co., Ltd. for a partner that values precision, quality, and customer satisfaction at every step.
After Sales Service
1. Along with your Multi-Functional Milling Machine, you'll receive a detailed Operation Manual to guide you step-by-step through all processes and functionalities, ensuring a seamless start!
2. Enjoy peace of mind with our complimentary spare parts, provided absolutely free during the warranty period, ensuring your operations remain uninterrupted.
3. Our dedicated 24-hour online Service Team is at your disposal, ready to assist and resolve any challenges you encounter, boosting your confidence and efficiency!
4. We go the extra mile with our engaging after-service support through video calls, live videos, phone consultations, and interactive online meetings, ensuring comprehensive assistance tailored to your needs., Our goal is to enable you to master the use of the machine and maximize its potential with utmost ease and satisfaction.
FAQ
1:How can I choose the most suitable machines?A: Please tell me your specifications. We can choose the best model for you, or you can choose the exact model. You can also send us the product drawing, and we will select the most suitable machines for you.2: What about the quality of the machine? And after-sales service?A: Our machine warranty period is 1-2 years, and we provide free technical service.3: What are your trade terms?A: EXW, FCA, FOB, CFR, CIF, DDP etc. are all acceptable.4: What are the Payment Terms?A: T/T, 30% initial payment when ordering, 70% balance payment before shipment;5: What's the MOQ?A: 1 set
