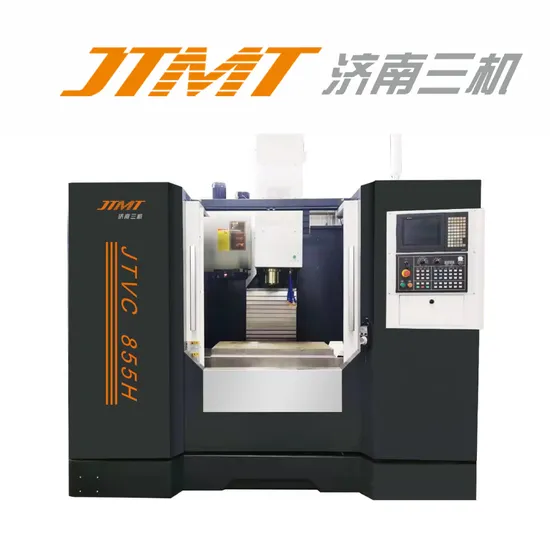

Jtmt Jtvc 855h Vertical Machining Center Line Rail CNC Control Metal Working Processing Machining Center

Product Description

We have 50 years of professional experience in the production of numerical control machine tools. The industrial park covers an area of 66,000 square meters and the construction area is 15,000 square meters. For professional services, please consult customer service. Product Description

1.Designed and manufactured for high processing efficiency, it has three high-speed advantages of machine tool spindle, three-way feed and tool change.
2.Designed and manufactured for high processing efficiency, it has three high-speed advantages of machine tool spindle, three-way feed and tool change.
3.Laser interferometer is used for laser calibration and gap automatic compensation.
4.Taiwan spindle unit, high speed, high precision and high rigidity.
5.Floating loose broach structure.
6.Taiwan tool magazine is adopted.
7.Taiwan tool magazine is adopted.
8.Main configuration of CNC system: Mitsubishi M80, others are selected by users.
Product Parameters

Machine parameters	Unit	JTVC640L	JTVC855H	JTVC1160L	JITVC1370L
Workbench area (length × Wide)	mm	900×330	1000×550	1200×600	1500×700
T-groove (Qty × size × Spacing)	mm	5×14×60	5×18×90	5×18×100	5×18×145
Maximum load of workbench	Kg	200	500	800	900
Spindle taper hole NO.	mm	BT40	BT40	BT40	BT40
Maximum spindle speed	rpm	8000	8000(optional12000)	8000(optional12000)	8000(optionalBT50/6000)
Spindle motor	Kw	5.5	7.5	11	11/15
X, Y, Z axis travel	mm	640.400.500	800.550.550	1100.600.600	1300.700.700
Distance from spindle head to work table	mm	100-600	120-670	120-720	140-840
Distance from main shaft to column guide rail surface	mm	410	595	650	752
Fast moving speed of X, Y and Z axes	m/min	36.36.30	48.48.48	36.36.36	20.20.20
positioning accuracy	mm	±0.005/300	±0.005/300	±0.005/300	±0.005/300
Repetitive positioning accuracy	mm	±0.003	±0.003	±0.003	±0.003
PC Magazine capacity	pc	16	24	24	24
T ool change speed	sec.	7/2.5
Tool magazine form		disc
Air supply pressure	kgf/cm	6.5
Machine tool profile	mm	2200×2000×2300	2780×2350×2800	3350×2520×2800	3770×2800×2800
Machine weight	kg	3000	5500	7500	8200
Power demand	KVN	12	20	28	45
CNC system	(Mitsubishi),FANUC-0i-MF,(Siemens)

Certifications
FAQ
Q.What are your normal lead times?
A.Our company typical lead times range from 3-20days after receipt of order.
Q.What are the terms of payments you offer?
A.We accept payment of T/T, L/C, and Western Union, cash, OlA etc.
Q.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition.
Q.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
Q.Do you have CE certification?
A.Yes, we have CE certification, machine quality is one year guaranteed.
Q.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to provide
customers better quality, better price,and better service".
