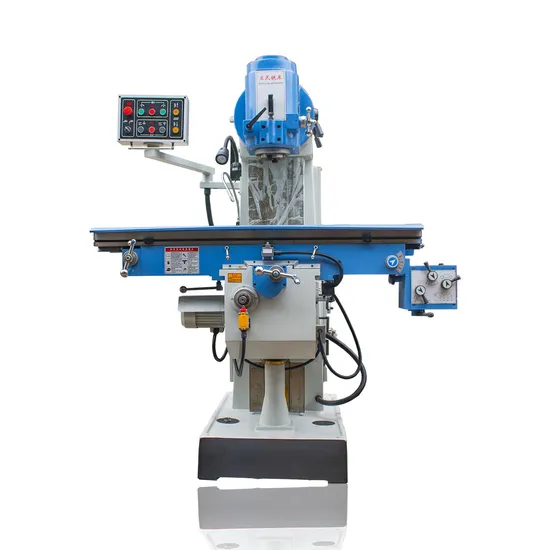

Universal Manual Large Milling Machine X5036 China Knee Type Vertical Milling Machine

Product Description

Product Description
Universal Manual Large Milling Machine X5036 China Knee Type Vertical Milling Machine
We are the most professional in making vertiacal milling machine
Product Parameters

Main technical parameters	Specifications	X5036A	X5036B	X5036C
	Spindle taper	7:24 ISO50	7:24 ISO50	7:24 ISO50
	Distance between spindle nose and table (mm)	80-440	70-450	70-450
	Distance between spindle hole center and column surface	320	360	360
	Spindle speed (r/min)	60-1700 (12steps)	60-1700 (12steps)	60-1800 (12steps)
	Rotation angle of end milling head	±45°	±45°	±45°
	Table size (mm)	1250×360	1500×360	1600×360
	Table travel (X/Y/Z) (mm)	600/320/380	1000/320/380	1300/320/380
	Number/width/spacing of T-grooves in worktable (mm)	3/18/80	3/18/80	3/18/80
	Main motor (kw)	4	4	5.5
	Power of Maneuverable Feed Motor of Workbench (kw)	0.75	0.75	0.75
	Power of feed motor for lifting platform (kw)	1.1	1.1	1.1
	Cooling pump motor power (kw)	0.09	0.09	0.09
	Cooling pump flow rate (L/min)	25	25	25
	weight (kg)	2200	2230	2600
	overall dimension (mm)	1700×1680×1880	2220×1790×1980	2520×1890×2080

This machine has the following features:
1.X seris vertical milling machine body adopts advanced cast iron, the high precision, long life after the artificial aging treatment
2.X seris vertical milling machine spindle rigidity, strong bearing capacity, the bed is a rectangular guide bed, good stability.
3.X seris vertical milling machine X, Y to the control of the machine tool by box type, can achieve automatic feeding, Z to the use of motor automatic lift.
4.X seris vertical milling machine X, Y, Z three direction of the guide rail hardening, precision grinding. Plastic slide
After the motion precision and life and taste
5.Equipped with manual lubrication device can be used to guide screw and guide rail.
6.X seris vertical milling machine is a kind of common metal cutting tools. This tool spindle cone can be directly or through the attachment of cylindrical milling, installation, end milling cutters, Angle cutter knives, applicable to such processing various parts of the plane, cant, groove, holes etc, machinery manufacturing, mould, instrument and meter, automobile, motorcycle industries ideal processing equipment.
Scope of application:
Milling machine is a widely used machine tool, in the milling machine can be processed plane (horizontal plane, vertical plane), groove (keyway, T-groove, dovetail groove, etc.), split tooth parts (gear, spline shaft, sprocket), spiral surface (thread, spiral groove) and various surfaces. In addition, it can also be used for the surface of the rotary body, the inner hole processing and cutting work. When the milling machine is working, the workpiece is installed on the workbench or the indexing accessories, the milling cutter rotation is the main movement, supplemented by the feed movement of the workbench or the milling head, the workpiece can obtain the required machining surface. Because of the multi-edge intermittent cutting, the productivity of the milling machine is higher. Simply put, a milling machine is a machine that can mill, drill and boring the workpiece. Suitable for hardware accessories, mechanical parts, molds, automatic manipulators and other industries.
Realistic photos
Detailed Photos
Our Advantages
Certifications
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
