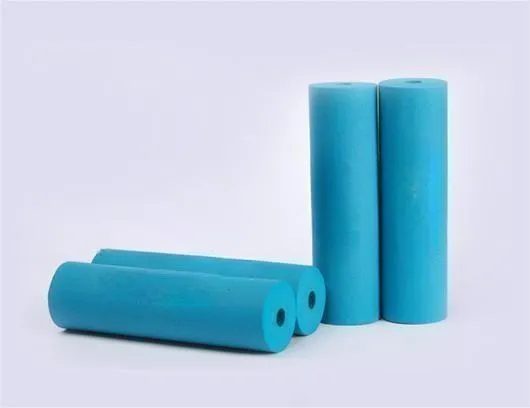

Blue Rubber Insulation Tube/ Insulation Pipe

Product Description

Quality Rubber Insulation Pipe/Tube
Density 40-80 kg/m
Thermal conductivity ≤0.030 at -20ºC
Operating temperature -50ºC-110ºC
Product DescriptionIntroduction
Fully adopted the advanced "gel" foaming technology, with nitrile rubber as the main raw material foamed by the closed foam elastic insulation material.
Application
Grade A rubber insulation pipe is widely used in split air conditioners, multi-online central air conditioners, solar energy systems, ground source heat pumps, etc.
PerformanceSuperior insulation
Using gel foaming technology, the initial thermal conductivity is 0.032W/(m.k) 0ºC, with excellent resistance to water vapor penetration, complete closed structure, good thermal insulation effect; High strength, anti aging.
Green environmental protection, protect family health
sing high quality and environmental protection formula, in line with GREENDGRAND indoor air quality certification and GREENGRAND children and school certification, does not contain formaldehyde, SCCPs(short chain chlorination paraffin) and other harmful substances and CFC, HCFC and other harmful substances destroying the ozone layer, its product performance fully meet the indoor air quality requirements, no volatilise, It helps to improve indoor air quality and create a healthy and comfortable living environment.
Authorized Certification
Always pay attention to customer needs, committed to creating energy-saving and safe long-term value for customers with excellent products and quality service. The company's products have passed the United States GREENGRAND green certification, British BS certification, ISO9001 system, China CQC certification and other certifications.
Product ParametersTube

Performance items	Technical parameter	Executive standard
Apparent density Kg/m³	40-80	GB/T 6343
Heat conductivity coefficient W/(m·k)	-20ºC ≤0.030;0ºC ≤0.032; 40ºC ≤0.037	GB/T10294
Moisture permeance factor G/(m·s·pa)	≤1.96x10^-11	GB/T17146
Wet resistance factor	≥10000	GB/T17146
Water absorption ratio in vacuum %	≤8	GB/T 17794
Combustion performance	Class B1 (Class B-s2,d0,t1)	GB 8624
Combustion smoke toxicity	ZA3 security level	GB/T20285
Dimensional stability %	(105ºC±3ºC,7d) ≤10	GB/T 8811
Compression rebound rate %	(Compression ratio 50%,72h) ≥70	GB/T6669
Ageing resistance 150h	Slightly wrinkled, no cracks, no pinholes, no deformation	GB/T 16259
Applicable temperature range ºC	-50~110	GB/T 17794

ApplicationApplication
It is widely used for thermal insulation and cold protection of various pipes and equipment in the high-end market of HVAC system to fully ensure the energy-saving effect of reducing cold and heat loss. It is widely used in various public places, industrial plants, clean rooms and medical and educational institutions.

Packaging & Shipping
Packaging Details: Carton box and pallets
Delivery Details: 15-20 workdays
Means of Transportation: International express/air/sea
Loading Port: Ningbo PortFAQ FAQ(Frequently Asked Questions)
Sample Policy
General samples can be available for free, however, express freight are on buyers account For valued items, we charge sample fee, which can be refund in the order.
Payment term
1)T/T: Normally 30% deposit before production, the balance of 70% against B/L copy.
2) L/C(For container order only)
3)0/A(For reliable buyer only)
4) Paypal, Western Union etc(For small sample order)
Delivery time
Normally 35 days after receipt of buyer's deposit.
