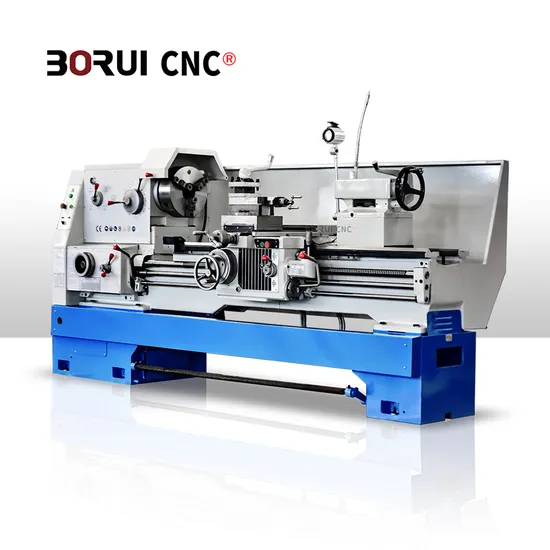

Ca6266c Big Bore Metal Lathe Universal Turning Manual Lathe Machine

Product Description

CA6266C Big Bore Metal Lathe Universal Turning Manual Lathe Machine Product Description
Features:
1. This series lathe machine is suitable for intemal and extemal turning,tapering,and other rotating faces, metric, module
and inch threads,as well as drilling and pull oil slot.
2. The lathe bed is 400mm,with high hardness on guideway,the guideway is through
3. This machine is easy to operate,with rapid device for carriage,design with single hand wheel to operate.
high-frequency quenching, wear-resisting.
4. The strength and rigidity of machine is higher than normal lathe machine,high efficiency,suitable for heavy duty
machining.
Product Parameters

Type	CA6140 CA6140B	CA6150 CA6150B CA6150C	CA6161 CA6161B CA6161C	CA6166 CA6166B CA6166C	CA6180 CA6180B CA6180C
	CA6240 CA6240B	CA6250 CA6250B CA6250C	CA6261 CA6261B CA6261C	CA6266 CA6266B CA6266C	CA6280 CA6280B CA6280C
Max. swing over bed	400mm	500mm	610mm	660mm	800mm
Max. swing over carriage	210mm	300mm	370mm	400mm	540mm
Max. swing in gap (CA62 series)	630mm	720mm	830mm	880mm	1020mm
Max. effective length in gap (CA62 Series)	210mm
Max. length of workpiece	750/1000/1500/2000/2200/3000/4000mm
Width of bed	400mm
Section of turning tool	25×25 mm
Main spindle motor	7.5kw(10HP)
Spindle
Spindle speed	16--1400rpm(24step)
Spindle bore	52mm (B:80mm),(C:105mm)
Spindle taper	No.6(MT6)(Φ90 1:20)[Φ113:20]
Feed
NO. of feed	(64 kinds)(for each)
Range of metric threads	(1-192mm) (44 kinds)
Range of inch threads	(2-24tpi) (21kinds)
Range of module threads	0.25-48 (module 39 kinds)
Range of diametral pitch threads	1-96DP (37 kinds)
Tailstock
Max. tailstock spindle travel	150mm
Tailstock spindle diameter	75mm
Taper of tailstock spindle centre hole	1-96DP (37 kinds)
Packing dimensions (L*W*H)
Overall dimensions for 750mm	2550×1140×1750mm	2550×1140×1750mm	2550×1140×1750mm	2550×1140×1750mm	2550×1140×1750mm
Overall dimensions for 1000mm	2700×1140×1750mm	2700×1140×1750mm	2700×1140×1750mm	2700×1140×1750mm	2700×1140×1750mm
Overall dimensions for 1500mm	3200×1140×1750mm	3200×1140×1750mm	3200×1140×1750mm	3200×1140×1750mm	3200×1140×1750mm
Overall dimensions for 2000mm	3700×1140×1750mm	3700×1140×1750mm	3700×1140×1750mm	3700×1140×1750mm	3700×1140×1750mm
Overall dimensions for 2200mm	4030×1140×1750mm	4030×1140×1750mm	4030×1140×1750mm	4030×1140×1750mm	4030×1140×1750mm
Overall dimensions for 3000mm	4850×1140×1750mm	4850×1140×1750mm	4850×1140×1750mm	4850×1140×1750mm	4850×1140×1750mm
Overall dimensions for 4000mm	5800×1140×1750mm	5800×1140×1750mm	5800×1140×1750mm	5800×1140×1750mm	5800×1140×1750mm
Weight (kg)
Overall dimensions for 750mm	2100 /1990	2170/2060	2300/2180	2380/2260	2520/2400
Overall dimensions for 1000mm	2190/2070	2260/2140	2380/2250	2570/2450	2720/2560
Overall dimensions for 1500mm	2350/2220	2450/2290	2577/2437	2810/2640	2980/2800
Overall dimensions for 2000mm	2720/2570	2800/2640	2940/2787	3050/2880	3260/3087
Overall dimensions for 2200mm	2800/2600	3940/2790	3120/2970	3390/3180	3490/3287
Overall dimensions for 3000mm	3300/3200	3450/3300	3600/3450	3930/3687	4200/3887
Overall dimensions for 4000mm	3500/3400	3750/3600	3950/3800	4580/4200	4850/4500

Standard accessories
1,3-jaw chuck
2,Reduction sleeve
3,Centers
4,Wrenches
5,Oil gun
6,Operation manual
7,face plate
Details Display
Packaging & Shipping
paching shiping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Profile
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
FAQ
1)Q: Which trade term I can choose?
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.
2)Q: How can I get quotation from you?
A: You can make the inquiry online on ******, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.
3)Q: How can I choose right machine and how to assure quality?
A: You can choose machine on our website accodring to your request. Or You can let our seller know what is your request specifcation or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.
4)Q: How can I make the payment?
A: We can make the deal on ****** online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.
5)Q: How long does it take to get machine?
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.
6)Q: How about warranty?
A: warranty is one year, but we will offer lifetime service for machine.
