Universal Vertical New Manual Turret Milling Machine for Metal From China
Basic Info.
Model NO.
X6323A
Type
Tool Milling Machine
Object
Hardware
Structure
Lifts
Milling Cutter Type
Customized
Milling Cutter Structure
Customized
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Universal Manual Turret Milling Machine
Model
X6323A
Table Size
230X1246mm
Spindle Taper
R8
Spindle Speed
65-4500rpm
Spindle Motor Power
2.2kw 3HP
Delivery Time
2 Months
Warranty Time
12 Months
Voltage
380V
RAM Travel
315mm
Color
Blue and White
Transport Package
Wooden Case
Trademark
BETA
Origin
Shandong, China
Production Capacity
100 Sets Per Month
Packaging & Delivery
Package Size
220.00cm * 160.00cm * 200.00cm
Package Gross Weight
1000.000kg
Product Description

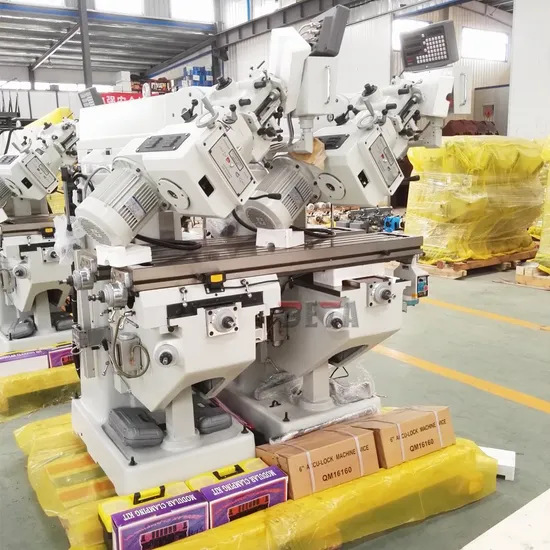

Universal Vertical New Manual Turret Milling Machine For Metal From China
| Model | Unit | X6323A | X6323B |
| Table size | mm | 230x1067 (9x42") | |
| 230x1246 (9x49") | |||
| T-slot | 16mm x 3 | ||
| Longitudinal travel | mm | 670 (850) | |
| Cross travel | mm | 310 | |
| Vertical travel | mm | 390 | |
| Ram travel | mm | 315 | |
| Distance from spindle nose to table surface | mm | 0~380 | |
| Spindle taper | R8 (optional NT30, NT40) | ||
| Quill travel | mm | 127 | |
| Spindle speed | rpm | Standard 16 steps: 65-4500 (50HZ); 80-5440 (60HZ) | |
| Optional variable speed: 60~4200. | |||
| Quill auto. feed | mm/rev | 0.04 / 0.08 / 0.15 | |
| Spindle motor | kw | 2.2 kw/3HP | |
| Headstock swivel | º | ±90º | |
| Headstock tilting | º | ±45º | |
| Floor space | mm | 2200x1600x2000 | |
| Machine weight | kg | 1000 | 1060 |
TENGZHOU BETA CO.,LTD. is a highly reputed professional Machine Tool manufacturer and exporter in CHINA. We focus on complete seals solution include seal making CNC machine, seal processing software, seal materials and cutting tools, the annual output quantity up to more than 1000 units.
Having focused on international market. We have placed the priority on both machines' quality and service. All machines will thoroughly follow every stage during manufacturing, assembling, final testing, packing and shipping, we promise that every provided machine will be strictly tested and be ready to operate before delivery.
