Cheap Price 3cavities Pet Blow Molding Machine

Cheap Price 3cavities Pet Blow Molding Machine

US$28,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
JS-3000
Raw Material
PET
Making Method of Parison
Stretch Blow
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
After-sales Service
1year
Bottle Liter
0.2-0.7L
Machine Cavity
3
Machine Output
2700-3000PCS/H
Application
Bottle
Transport Package
Wooden Box
Specification
SGS, CE
Trademark
JS
Origin
Huangyan Taizhou Zhejiang
HS Code
84773090
Production Capacity
2700-3000PCS/H

Product Description

0.1-0.7L 3cavities Fully Automatic Small Bottle High Speed Blow Molding Machine
MACHINE PROPERTIES:
1. FEATURES TOUCH SCREEN COMPUTER OF TAIWAN'S WEILUN , OPERATE CONSISTENTLY AND SIMPTY .
2.FEATURES PNEUMATIC ELEMENTS OF GERMAN FESTO AND JAPAN SMC.
3.SPECIALLY DESIGNED FOR ENERGY-SAVING PURPOSE , MECHANICAL UNIT IS COMPACT AND SOUND.
4.FEATERES TROUBLW ALERT AND DIAGNOSTIC UNITES TO ALLOW EASY MAINTENANCE.
5.ENVIRONMENTALLY FRIENDLY DESIGN, NONTOXIC CONVEYOR BELT TO CARRY PREFORMS .
JS-2000 JS-3000 JS-4000 JS-6000 JS-1000 JS-2000C JSX-2000 JS-3000B
Production capacity BPH 1800-2200 2700-3000 3300-4000 5600-6000 1000-1200 1000-1200 2000-2300 1800-2400
Number of Cavity / 2 3 4 6 1 2 2 3
Clamping force kN 180 180 350 350 120 450 160 550
Mould opening stroke mm 200 200 200 200 110 260 260
Stretch stroke mm 350 280 350 280 350 430 280 350
Max. Container Volume liters 2 0.7 2 0.7 1.5 10 0.7 5
Max. Neck Size mm 40 40 40 35 50 50 40 50
Max. Bottle diameter mm 110 70 105 70 95 210 70 180
Max. Bopttle height mm 350 280 350 270 350 430 280 350
Installed Power kW 41 31 68 52 17 44 25 64
Max. Heating Power kW 40 30 64 48 16 40 24 60
Operating Air Pressure Kg/cm² 8 8 8 8 8 8 8 8
Operating Air Consumption liters/min 1500 1500 3000 3000 700 2000 1300 2000
Blowing Air Pressure KG/cm² 35 35 35 35 30 30-35 30 30-35
Blowing Air Consumption liters/min 2000 1800 3800 2800 1000 8000 1500 7000
Cooling water Pressure Kg/cm² ,4-5 ,4-5 ,4-5 ,4-5 4-5 4-5 4-5 ,4-5
Cooling water Temperature °C .10-20 .10-20 .10-20 .10-20 10-20 10-20 10-20 .10-20
Cooling water Flow liters/min 100 100 100 100 100 100 100 100
Measurement (L x W x H) m 2.6X2.2X2 2.6X2.2X2 3.85X2.3X2 3.85X2.3X2.2 2.6X2.25X2.4 2.5X1.9X2.2 3.2x2.25 x2.4
Weight Ton 3 3 4.2 4.2 1.8 3.5 2.3 4.5

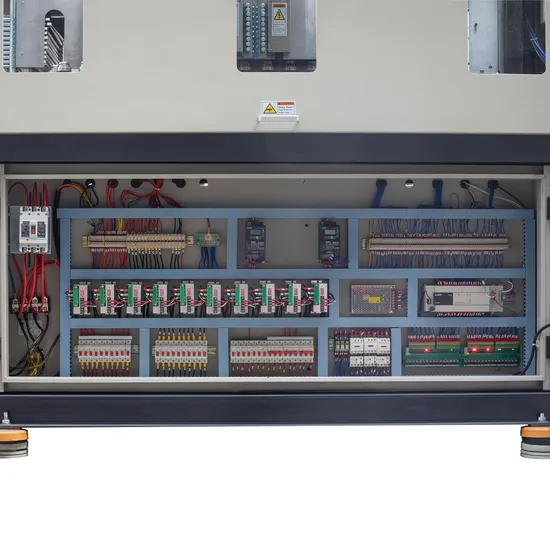

Internal details of the Machine
