Lab Scale Rolling Mill with V-Shaped Mixing Tank for Separating and Combining Powder Granules

Product Description

lab scale rolling mill with V-shaped mixing tank for separating and combining powder granules
Introduction of V-shape ball mill:

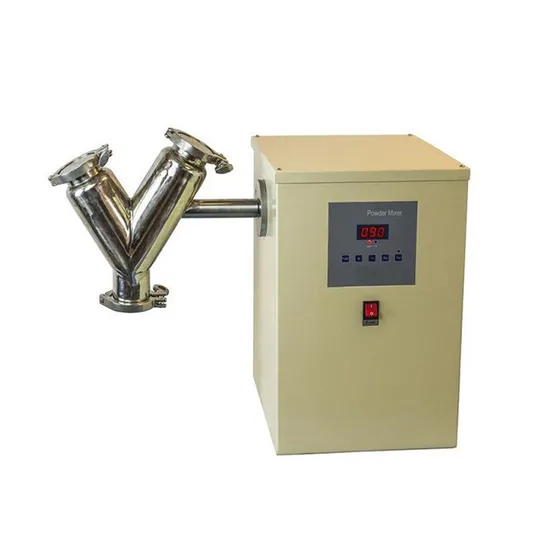

CY-MSK-SFM-11-LD features a special V-shaped mixing tank designed for grinding and mixing dry powders in short periods of time. A digital control panel enables the rotary speed and time duration of the mixing session to be programmed easily. The V-shaped mixing tank provides the ability to separate and rotate the granules in two SS tanks. The granules are transferred from one tank to another for dispersion and get combined at where the tanks join in a continuous fashion. This type of mixing is ideal for dry mixing of materials that require good fluidity or those are fragile or fine in nature. The mixer can be used inside glove box under Ar gas because 24VD Motor Driven.
Specifications of V-shape ball mill:

Features	V-shaped mixing tank for separating and combining powder granules (made of SS 304) On axis rotational mixing Stainless steel tank can be opened on all ends for easy feeding, discharging and cleaning. Digital display and simple control interface provide easy programming of mixing operations 110- 240V AC to 24V DC power adapter is included for universal using. The mixer can be used inside glovebox under Ar or N2 gas
Input Voltage	AC 110 - 240V, 50/60Hz input Current: 3A Max. Power: 25 W The power adaptor to 24VDC is UL, TUV, CSA and CE approval for worldwide use
Timer Setting Range	1~900 min
Rotary Speed	20~90 rpm
Dimensions and Capacity	We provide variable sized containers. 2.5L Capacity (usually for 1000g powder mixing max) 250ml Capacity (usually for 100g powder mixing max) 50ml Capacity (usually for 20g powder mixing max) Material feeding port is with sanitary quick clamps
Dimension	310mm L x 352mm D x 485mm H
Optional grinding balls	You can choose grinding ball made of stainless steel, alumina YSZ and Agate For grinding: please choose larger ball For Milling: please choose small and larger ball combination
Overall Dimensions	550×270×550 mm
Weight	45 Kg

Founded in 2005, Zhengzhou CY Scientific Instrument Co., Ltd. is a company specializing in the development and production of laboratory technology research equipment. The products are mixed, pressed, burned, cut, ground, polished, coated, analytical equipment and related consumables. Products include laboratory sintering equipment, coating equipment and so on. At present, it has been exported to 25 countries and regions such as the United States, Europe, and Southeast Asia, and has been well received by various scientific research units.
We have a mature technology research and development team, the number of technicians is 33, the company has 150 people, more than 500 square meters of office space, the factory covers an area of about 1,500 square meters located in Zhengzhou High-tech Zone Electronic Industrial Park. The products are mainly located in the research market, serving scientific research in the labs of universities and colleges, and can also customize products according to your needs.
Q. Are you a manufacturer or a trading company?
A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.
Q. How is your company's product after-sales service system?
A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales departments that can respond to you within 24 hours to resolve any technical issues.
Q. How long is your delivery time? If I want to customize the instrument, how long does it take?
A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.
Q. Our country's power supply and plug are different. How do you solve it?
A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.
Q. How to pay?
A.T / T, L / C, D / P, etc., it is recommended to use ****** Trade Guarantee.
Q. How is the package of goods? Delivery methods?
A.1. Standard export fumigation sign wooden box packaging 2. Express, air, sea shipping according to customer requirements, find the most suitable way.
More questions, please contact customer service.
