Qm100 Ball Grinding Machine Fanuc Control System NSK Bearing Hiwin Ballscrew

Product Description

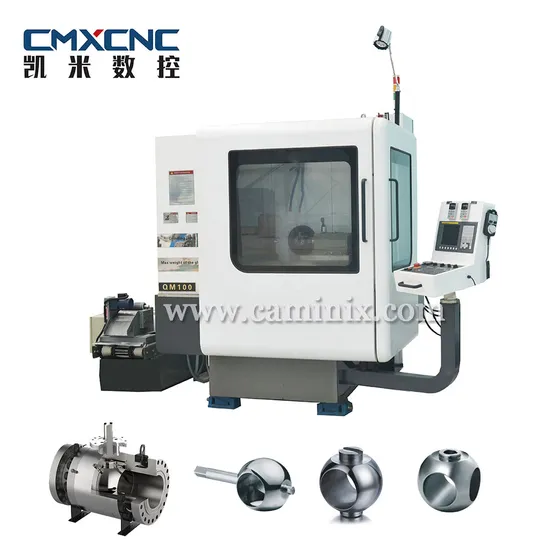

Introduction of CAMINIX Ball Grinding Machine
CAMINIX CNC Ball Valve Grinding Machine is designed ,developed and manufactured for precise grinding of the sphere ( Balls) of the ball valves,With range of DN15-DN1600 1/2''-60'' various kinds of balls with materials of carbon steel,stainless steel,alloy steel,Monel,Tungsten Carbide coating, etc. All of the machines are equipped with latest generation of FANUC brand control system, to accomplish the ball roundness of 0.01mm and roughness Ra0.2.
CNC BALL VALVE GRINDING MACHINE QM100 DATA SHEET

Item	Unit	Model: QM100
Max Ball Grinding Diameter	mm	Φ37-φ160
Max Ball Bore Diameter(≈)	Inch	1/2''-4″
Distance between top central line to the table	mm	130
Max Ball Weight	Kg	20
The power of Main Spindle Motor	kw	5.5
Main Spindle Rotating Speed Range	Rpm	0-3000
The Power of the lathe-head Motor	kw	1.5
lathe-head Rotating Speed Range	Rpm	6-125
The Journey of the X/Z direction	mm	150/100
The adjusting range of the tailstock	mm	50
Head/tail stock apex		Mohs 5"
The precision of orientation of X/Z axis	mm	±0.01
The precision of repeat orientation of X/Z axis	mm	±0.005
Ball Roughness degree	Ra	0.4
Ball Roundness	mm	<0.02
Approx. Dimension(LxWxH)	mm	2400×2000×2200
Approx Net Weight	Kg	3500

Caminix reserve the rights to change the specification according to actual production.
WORK PIECE SAMPLE
Appliable Ball Types:
As per Ball Materials: Casting Valve Balls, Forged Valve Balls,
As per Ball Structure : Hollow Valve Balls, Solid Valve Balls,As per Ball Design: Floating Valve Balls, Trunnion Valve Balls, Stem Valve Balls,V Port Valve Balls (Segement Balls),
T Port Valve Balls, L Port Valve Balls, F Port Valve Balls, X-Port Valve Balls, L-STEM, X-STEM, T-STEM, Double Slot T Port, Special Slot, F Port Three Ways, Three Way Valve Balls, Hexangular Valve Balls, Hemi Valve Balls, Plate Balls, Metal Seat Valve Balls and Seats,AS per coating materials : TCC Valve Ball, HVOF Valve Ball, Chrome Valve Ball, Stetllite Valve Ball

Grinding Ball Size: 1/2''-60'' Class 150~Class 2500 PN10-PN420
Base Material: Carbon Steel, Stainless Steel, Alloy Steel
ASTM A105, ASTM A350 LF2, ASTM A182 F304, ASTM A182 F316,ASTM A182 F304L, ASTM A182 F316L,ASTM A182 F6A,
ASTM A182 F51, ASTM A182 F53,ASTM A564 630(17-4PH) Inconel 625,Inconel 690,Inconel 617,Inconel 718,Model 1400 etc
Coating Materials:
Coating: Nitridation,Nickel Plate,Chrome Plating,HVOF Tungsten Carbide,Spray Stellite,Spray Nickel Alloy,Spray Cobalt Alloy NI60,NI55 Inconel etc

If you need any more information, please feel free to contact Caminix.
