Plastic Machine PVC Conical Twin Screw Extruder for Pipe Profile Sheet Extrusion
| US$21,000.00-21,500.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
SJSZ51/105 55/113 65/132 80/156 92/188
Type
Pipe Profile Sheet Extruder
Plastic Processed
PVC
Product Type
Granulating Extruder
Feeding Mode
One Feed
Assembly Structure
Integral Type Extruder
Screw
Twin-Screw
Engagement System
Full Intermeshing
Screw Channel Structure
Deep Screw
Exhaust
Exhaust
Automation
Automatic
Computerized
Computerized
Name
Plastic Extruder
Gearbox
High Torque Intergrated Gearbox
Screw Barrel
Bimetalic 65/132
Motor Power
37kw
Motor Brand
Siemens Origional
Capacity
300kg/H
Inverter
ABB
Main Electrical Parts
Siemens
After Sale Service
Engineer Overseas Service
Delivery Date
45 Working Days
Ratitional Speed of Screw
1-38rpm
Main Motor Power
37kw
Barrel Heating Power
24kw
Motor
Siemens, Weg
Package
Wooden Box, Bubble Film, Wrapping Film
Transport Package
Wood Base
Specification
SGS CE
Trademark
YUREFON
Origin
Jiangsu China
HS Code
84772090
Production Capacity
300sets/Year
Packaging & Delivery
Package Size
390.00cm * 150.00cm * 140.00cm
Package Gross Weight
2500.000kg
Product Description
Product DescriptionPlastic PVC Conical Twin Screw Extruder for Pipe Profile sheet Extrusion
Application Area:
The Twin Screw Extruder are mainly used for the processing of the soft/hard PVC pipe, PVC foaming board, PVC sheet, PVC Profile, PVC Trunk, PVC Roof tile, PVC Pelletizing and other polyolefin products, especially the direct processing of the plastic/powder materials.
Twin Screw Extruder is applicant for PVC powder material, with different mould and downstream equipment; the plastic extruder can produce pipe, profile, plate&sheet, and pelletizing. The extruder features in good plastic extrusion, good plasticization, even melting, high output capacity, wide application and reliable stability, specially designed gearbox and distributor and reinforced thrust bearing realize large transmission torque and long operation time. Electrical control system: Siemens PLC/PCC auto control system or RKC temperature control, and ABB Invert/transducer, Siemens contactor, and several alarm system
Product Parameters
Detailed parameter of each model:
| conical twin screw extruder | |||||
| Specification/Model | SJSZ45/90 | SJSZ51/105 | SJSZ65/132 | SJSZ80/156 | SJSZ92/188 |
| Screw diameter | 45/90 | 51/105 | 65/132 | 80/156 | 92/188 |
| Ratitional speed of screw | 1-45rpm | 1-45.5rpm | 1-38rpm | 1-36.9rpm | 1-34.5rpm |
| Main motor power | 15kw | 22kw | 37kw | 55kw | 110kw |
| Barrel heating power | 9.6kw | 11.5kw | 24kw | 36kw | 88kw |
| Production capacity | 70kg/h | 120kg/h | 250kg/h | 360kg/h | 1000kg/h |
| Net weight | 2500kg | 3000kg | 4000kg | 5000kg | 5500kg |
Detailed Photos

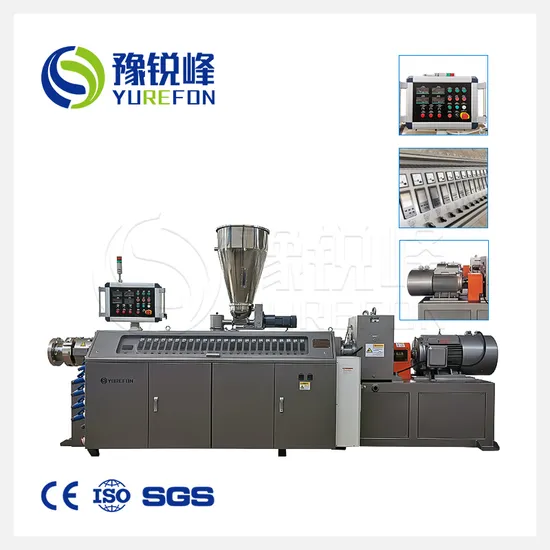

machine detailed picture:
Sample product by this extruder
Company Profile
If you want to know more about the machine, pls contact us.
