PVDF ACP Acm Dibond Aluminum Composite Advertising Sheet Fireproof Panel

Product Description

Product Description
Products Descriptions:
Basic Material of Aluminum Composite Panel1) Front side: aluminum alloy sheet coated with fluoro-carbon resin(PVDF) or polyester resin (PE)
roasting painting
2) Core material: nontoxic polyethylene, PE, FR, LDPE
3) Back side: aluminum alloy sheet coated with polyester resin painting(PE)
Features:
1) Fireproof and water resistant, excellent heat and sound insulation;
2) Excellent surface flatness and smoothness;
3) Superior weather, corrosion and pollutant resistance;
4) Even coating, various colors;
5) Super peeling strength;
6) Superior impact resistance;
7) Lightweight and easy to process;
8) Easy to maintain; Products Parameters:

Product Name	High Quality Brushed Aluminum Composite Panel for Exterior Wall Decoration
Panel Thickness	2mm / 3mm / 4mm / 5mm / 6mm
Alu Thickness	0.06mm / 0.1mm / 0.12mm / 0.15mm, 0.18mm, 0.21mm / 0.3mm / 0.4mm / 0.5mm
Width	1000mm,1220mm (regular),1250mm,1300mm,1550mm or customized
Length	2440mm, 3200mm,4000mm 5000mm 6000mm,or customized
Standard Size	1220 (width) x 2440 (length) x 3mm (thickness) 1250 (width) x 2440 (length) x 4mm (thickness)
Coating Material	PVDF / PE / FEVE / Anodized coating
Core Material	Non-toxic polyethylene material	Normal polyethylene, One side unbroken polyethylene, Two side unbroken polyethylene, Virgin LDPE
	Fire-rated core	B1 fire-rated core A2 fire-rated core
Surface Finish	Matt series / Pearl series / Metallic color / Brush series / Mirror series / Glossy series / Marble grain / Wooden grain / PVC film / PP film
Standard	According to China National Standard GB/t 17748-2008
*** Custom specifications are negotiable and Free samples are available***

Color Seriers and Catalogue
Xinghe ACP Color Seriers & Catalogue:
Production and Fabrication
Aluminum Composite Panel Production:
Aluminum Composite Panel Fabrication:
Product Applications
Aluminum Composite Panel Applications:

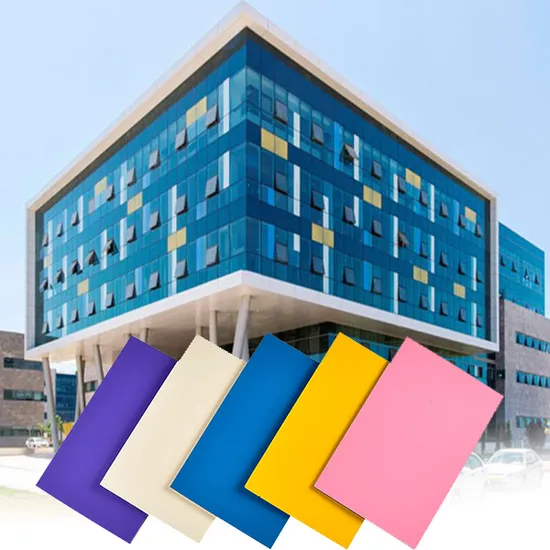

1) Constructional exterior curtain walls, Wall Panel are widely used in exhibition, stores, offices, banks, hotels, restaurants and apartments;
2) Decorative renovation for storey-added old buildings, facades, roofing;
3) Indoors decoration for interior walls, ceilings, bathrooms, kitchens, balconies and subway;
4) Advertisement board, display platforms, billboards and signboards;
5) Wallboard and ceilings for tunnels;
6) Raw materials in industrial purpose;
7) Material used for vehicle bodies, yachts and boat Quality Assurance
Quality Assurance:
1) Under natural climate, film coating will be no flake. No rubbles, no vestige and no pulverization.
2) Under common environment. No flake. No rubbles.
3) Under common temperatures and radiation, no color difference.
4) According to international test standard, all the tested items are satisfied with high-class.
5) Our products with PVDF coating under common environment, we can guarantee 15-20 years; And for FR products, it is good at fireproof, and the FR grade is B1 and A2.
Certificates: ISO9001; SGS; Russian fireproof certificate; Tensile strength; BS 476 Fireproof Certificate; Salt Spray (FOG) Test- ASTM; Coating Thickness and etc.
Certifications:
Package and shipment:
Following package for length over 4000mm
Naked package also popular for customers
LCL Shipment should choose Crate Wooden Case
Our Advantages
About Us:
Guangzhou Xinghe Decorative Material Co.ltd located in Guangzhou city, Guangdong province. It covers land of construction area a 20000 square meters, we are a large-scale joint-stock enterprise specialized in manufacturing aluminum composite panels, aluminum panel,which is provided with abundant manufacturing experience,high -tech strength, sophisticated production equipment and rigorous quality testing method.
With a total investment of RMB 150 million Yuan, we have 24 advanced production lines of aluminum composite panel, and 6 large coating lines,and 4 protection film production lines .Xinghe mainly produces aluminum composite panels, aluminum panels and aluminum honeycomb panels, covering more than one hundred specifications and colors. our market:North American,Asia, Oceania,Africa and etc.
Xinghe will commit itself to broadening its building and decorating materials , striving to make it the largest
production base of aluminum composite panel and aluminum panel in china.
WHY CHOOSE US?

20+ Years History	Professional in manufacturing, marketing and service for 20+years
4 Production Lines	Produce 20,000 sqm per day, finish your order on time
Production Capacity	4 aluminum coils coating lines,10 production lines, 60,000meter square/day. Your order leadtime is warranted
Flexible MOQ	Any quantity is available if we have your specification in stock
Selected Material Suppliers	PPG/akzonobel/Kynar 500/ CHALCO, fast Delivery of Materials
Color Customization Available	Color picture, RAL/pantone Etc color code, sample provided to us for color customization
Width Customization Available	Normal 1220,1250,1500,1570,1575mm, but we also provide special width customization : 610mm,900mm,1100mm Etc
OEM Service	Just offer your design information, we will design your LOGO on your protective film
Shipping Company	Introduce you our good partner--experienced shipping company with competitive price
Good Location	Our factory is near to Canton Fair and Foshan---famous building material market
Quality Controlling	ISO9001:2015, PPG, SGS, KYNAR500
Free Translation	Offer free translation for our customers during Canton Fair time
Free Sample	Free sample offered, 7 days delivered to you

Top Quality Suppliers and Cooperation Partners:
FAQ & Feedback
FAQ:
1. How soon can I get a price quote?
Once we know the panel thickness, aluminum thickness, dimensions, paint requirement(PVDF coating or PE coating ), we can provide you with one competitive price quote within 24 hours.
2. Can I get a sample?
Yes, the samples are free for you. But you need to offer one courier account NO. To afford the fee for samples shipping. The samples' sending usually takes 3-5days.
3. How can my order produced by my brand?
Yes, you can. Pls offer your brand or LOGO design to us, then we could produce all goods with your brand or LOGO.
4. What's your delivery time?
Except our legal holiday, it will take 2 weeks for us to finish all your orders' production.
5. Is there a minimum order requirement?
Due to the high machine setup cost and shipping freight, our minimum order quantity is 600SQMS. It is recommended for you to order a 20"GP to reduce the unit price and shipping cost.
6. Do you sell any related products which are used for installing the aluminum composite panel?
Yes, we haven. We sell all the installation accessories for our aluminum composite panel. There are: Aluminum profile, screw, rivet, foam filler rod, paper tape, and silicone. If you are interested in them, pls contact with us, we will give you the most competitive price.
7. Will you match competitors' prices?
If you find a lower price elsewhere for the exact same specification, we will meet or beat that price as long as it is a little higher than our cost price.
8. How do I know I can trust you to make the order from you?
XINGHE established in 1999, Company owns MEGABOND® , CROWNBOND® , Brands, we have huge customers in more than 80 different countries of this world. XINGHE all projects around the whole world can be made our customers feel 100% satisfaction.
9. What are your terms of delivery?
We accept FOB, CIF, LC etc. You can choose the one which is the most convenient or cost effective for you.
10. Claims:
Should meet any problems when you use, please feel free to communicate with us, it is our biggest pleasure to support you in all terms. Any problems you feedback will be our the ladder of progress. Welcome to buy our products again, we will continue to provide quality and convenient service for you.
