Wholesale Diamond Reinforced Concrete Diamond Wire Rock Saw

Product Description

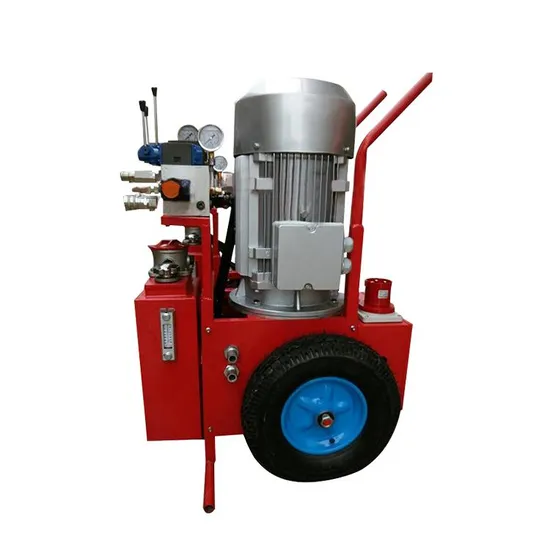

Product Description Hydraulic wire saw machine uses the oil pressure of the hydraulic pump station to drive the hydraulic motor to rotate. The hydraulic motor drives the driving wheel to rotate, and the driving wheel drives the rope to rotate. At the same time, the rope is guided by the driven wheel to control the direction of the rope to rotate at high speed, thereby achieving the purpose of cutting the steel bars. Concrete cutting for demolition purposes. This equipment can achieve various cuttings of thicker concrete. It is generally used in the static cutting and removal of bridges, piers, dock platforms, and underwater concrete piles to ensure that the original structure is not damaged.

Model	80AM	90AM
Motor quantity	1pcs	2pcs
Maximum rope storage	11m	12m
Rope	15m	15m
Length	1050mm	1050mm
Width	700mm	700mm
Height	1700mm	2100mm
Driving wheel diameter	280mm	280mm
Rope storage pulley diameter	200mm	200mm
Weight	85kg	110kg

The wire saw is a cutting and demolition tool for mines, blocks, curved slabs, large slabs of stone, thick concrete, irregular concrete steel bars, bridges and roads, etc. Easy to install, flexible to use, can be cut horizontally or vertically. Below you can learn about the composition of the equipment structure and the classification of wire saws.
