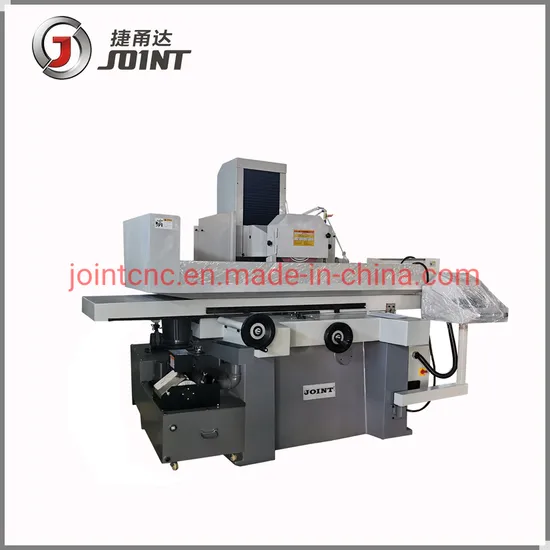

Heavy Duty Surface Grinding Machine (FSG80160NC / FSG80220NC / FSG80300NC) High Precision Grinder

Product Description

SURFACE GRINDER FEATURES:Performence Features:
Double walled column structure, provide high rigid support .Adopt counterweight balance, make the spindle move stably, and reduce the load of the leadscrew , keep the accuracy for a long time.
Independent,large capacity integrated hydraulic tank,standard equipped with air cooling and pressurizer,isolate heat and vibroseis, to provide excellent power for precision grinding.
High rigidity rectangular guide way is designed on vertical motion,and coat with TURCITE-B belt,to get low friction coefficien
Flat-V guideway are adopt on longitudinal and cross way to get good guidance quality,and coat with TURCITE-B belt,precision handscraping to keep stable wok accuracy
AC servo motor drives on cross and vertical motion MPG(electronic hand wheel )replaces the tradition mechanical hand wheel, which can realize higher accuracy and easy operation
Adopt SIEMENS 7 inch LCD-TFT colorful touch screen, built in program of our engineer's genius designation to make the operation very simple and convenient for the operator.
Adopt hydrostatic bearing for the spindle to get high rigidity(high precision rolling bearing foe export),together with 18.5KW motor to provide strong power, apply to the heavy duty machining. Spindle rotation is supported by rigidity oil film, no wear, ensure the long-time precision and life
Well designed machine bed is one high grade casting piece, which insure heavy duty cutting
Strengthen ribs are set inside of the rear slide base,make sure great stability support for spindle.
Super great power spindle unit is most important to the machine.It is really an elaboraton under well designed,and our ultimate goal is to balance high rigidity and great accureacy.
The machine bed and rear slide bed are assembled to one piece,to supply super strong base for efficient working.
SPECIFICATIONS:

Model	Unit	FSG80160NC	FSG80220NC	FSG80300NC	FSG85250NC
Table size	mm	810x1600	810x2200	810*3000	850x2500
Max.ground area	mm	810x1600	810x2200	810*3000	850x2500
Max.ground height	mm	670(830/1000 optional)
Magnetic chuck size	mm	800x800x2	800x1000x2	800*1000*3	850x1200x2
Max loading capacity	Kg	2000	2400	3500	2500
Speed of table move	m/min	5-25	5-25	5~25	5-25
Intermittent feed rate	mm/t	1-30	1-30	1~30	1-30
Rapid down speed	mm/min	50-2000	50-2000	50~2000	50-2000
Feed of MPG	mm/div	0.005	0.005	0.005	0.005
Auto down feed rate	mm/t	0.005-0.05	0.005-0.05	0.005~0.05	0.005-0.05
Rapid down speed	mm/min	50-2000	50-2000	50~2000	50-2000
Feed of MPG	mm/div	0.005	0.005	0.005	0.005
Rotating speed	r/min	960(50HZ)/1150(60HZ)
Grind wheel size	mm	500x75x203	500x75x203	500*75*203	500x75x203
Grind wheel size for export	mm	500x75x305	500x75x305	500x75x305	500x75x305
Spindle motor power	kw	18.5	18.5	18.5	18.5
Oil pump motor	Kw	7.5	7.5	7.5	7.5
Y/Z servo motor	kw	3	3	3	3
Total rated power	KVA	40	43	43	43
Floor space	cm	530x445x250	640x445x250	830*445*250	670x445x250
Gross weight	kg	10500	12500	14000	13500
