Mingju Th800 T-Type Horizontal Machining Center

Product Description

MINGJU TH800 T-Type Horizontal Machining Center
Technical specification

Model			TH630	TH800
Item	Specification	Unit
Travel	X/Y/Z Axis	mm	1050/900/950	1400/1200/1350
	Distance from spindle nose to worktable center	mm	130-1080	255-1605
	Distance from spindle center line to worktable	mm	180-1080	170-1370
	Guideway Type		Three-linear-guideway
Worktable	Worktable Size (L*W)	mm	630x630	800x800
	Max.Worktable Load	kg	1200	2000
	T-Slot	mm/mm/mm	5-18-100	5-22-160
Spindle	Spindle Taper	type	BT50	BT50
	Spindle Speed	rpm	6k	6k
	Spindle Motor Power	kw	15-18.5	15-18.5
	Spindle Drive Type		belt	belt
Feed	XY/Z Axis Rapid Feed	m/min	24/24/24	24/24/24
	Maximum cutting feed	m/min	10	10
Tool Magazine	Magazine Type		Arm type	Arm type
	Tool Holder Type	type	BT-50	BT-50
	Tool Capacity	tools	40	40
	Max Tool Diameter (adjacent tools)	mm	φ105	φ105
	Max Tool Diameter (no adjacent tools)	mm	φ200	φ200
	Max Tool Length	mm	350	350
	Max Tool Weight	kg	15	15
	Tool Change Time	sec	7	7
Accuracy	Positioning Accuracy	mm	±0.005	±0.005
	Repeat Positioning Accuracy	mm	±0.003	±0.003
Power	Power Requirement	kVA	35	40
	Air Pressure Requirement	kg/cm²	6~8	6~8
Dimensions	Length/Width/Height	mm	5700x4200x3100	6100x4900x3300
	Weight	ton	15	18.5

Product Description
Introduction
This product features a standard T-shaped bed design with a rotating worktable structure and ultra-wide guideway. It comes standard with a high-torque, high-speed spindle motor, with an optional interchangeable worktable. It is suitable for machining various complex parts and is the preferred equipment for cavity machining in the automotive engine and communication electronics industries.

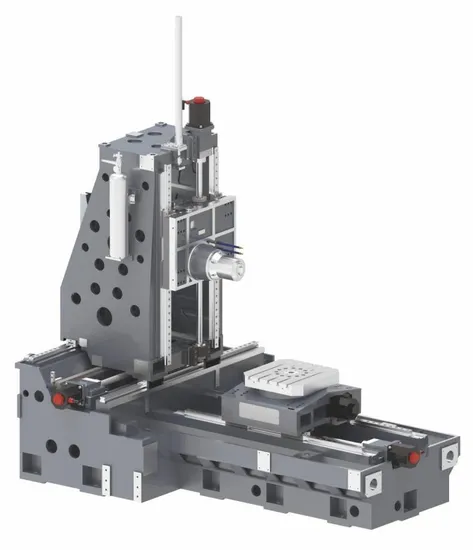

Bed and Column
The column features a triangular side structurewith multiple layers of reinfording ribs,
enhancing the stability of the machine body.-The standard T-shaped bed structure,combined with astepped X-axis layout,increases span and improves rigidity.
Adopts Taiwan roller linear guideways,whichprovide high load capacity and stable precision.
Spindle
Uses an original 190mm BBT50 spindle from Taiwan,equipped with alabyrinth air-blowing waterproofdevice to protect the spindle,along with a circularwater spraysystem to enhance machining quality.
FANUC high-torque wide-range motor BiP30/8000 provides stronger heavy-cutting capability.
Tool Magazine
Equipped with an original tool magazinefrom Taiwan,offering fast tool changes that are stable and reliable.
Worktable Exchange/Fourth-Axis RotaryTable
Enables automatic workpiece exchange, improving efficiency.
High-rigidity alloy worm gear and worm,offering high positioning accuracy,heavy-duty locking,reduceddeformation, and durability under heavy cutting.
Grating scale
An optional grating scale can be equipped to achieve fullclosed-loop control,ensuringmachine tool positioningaccuracy within ± 5μm. Company Profile
