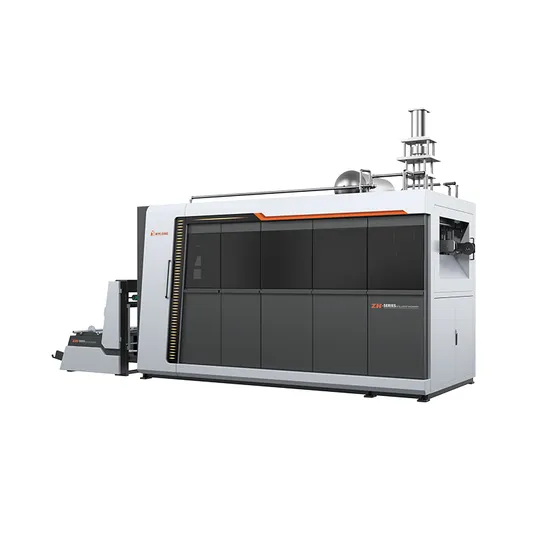

Zhs-800 Plastic Vacuum Forming Machine Pet PS PS PLA Sheet Thermoforming Machine Disposable Cup Making Machine

Product Description

Applications :
Food Packaging: The Multi Station Thermoforming Machine produces trays, lids, and containers with high standardization and cutting accuracy, enhancing food packaging efficiency and quality.Industrial Use: This versatile Multi station thermoforming machine forms durable parts and components with flexible production capabilities, ensuring exceptional reliability and precision in industrial applications.Medical Industry: Create high-quality sterile packaging solutions with the Multi Station Thermoforming Machine, which offers strong, durable materials and user-friendly software for precise control in medical packaging.Consumer Goods: Utilize the Multi station thermoforming machine to manufacture clamshells, flower pots, and nursery trays, benefiting from the 4-post press system for balanced forming and cutting forces.Custom Manufacturing: The Multi Station Thermoforming Machine supports custom manufacturing, enabling the production of tailored products across various industries with its robust design and consistent performance.
Product Parameters

ZHS-800/500
Sheet Materials	PP.PS.PET.PE.PLA	Sheet Width	600-820mm
Sheet Thickness	0.3-2.5mm	Motor Power	15kw
Max. Forming Area	800x500	Heading Power	125kw
Max. Cup Height	200mm	Total Weight	6ton
Forming Pressure	0.6-1.0Mpa	Water Consumption	40-45L/min
Productivity(cycles)	10-35cycles/min	Air Consumption	2500-3500L/min
Overall Dimensions	4000x1700x2900mm

Product Description
Detailed Photos
Pillar Servo Construction
Our pillar offers superior product quality across various shapes, including round, rectangular, oval, and square, even for larger sizes.
This mechanism significantly increases the rate of finished products and ensures more stable operation, making it an excellent choice for high-efficiency production.

Oven
Our system boasts seven times the maximum forming area, utilizing advanced little infrared ceramic tile heating for more uniform results.
Constructed with 304 stainless steel for durability, it features Dongtai Tianbao heaters controlled by an intelligent temperature controller for precise temperature management.
The oven structure adopts a pneumatic drawer design for easy access, while safety measures include manual blowing cooling to prevent sheet fall, ensuring safe and efficient operation.

PLC
Our cup forming machine, features a Trio PLC according to standard design, ensuring the stability, high efficiency, and low failure rate of the entire machine.
This advanced system guarantees consistent and reliable operation, making it an ideal choice for high-precision production needs.

Servo Drive
Our cup forming machine, is equipped with Estun Servo Drives, renowned for their high accuracy and production efficiency.
Having utilized these servo drives for all our thermoforming machines, we have experienced flawless performance with no errors, showcasing their exceptional reliability and consistency in delivering high-quality results.

Human Machine Interface
Our cup forming machine, is equipped with a FLEXEM HMI, known for its advanced industrial grade and high durability.
This state-of-the-art HMI enhances user interaction, ensuring efficient and reliable operation for all production needs.

Samples

Auxiliary Equipment (option)
Air Compressor

Motor Power :22kw

Capacity : 3.8m3/ 0.8/mpa

Dimension:1.2*0.88*1.55m

Weight:600kg

Air tank : 1000L

Robot hand system
MAX. Load: 3kg
Vertical stroke: 1400mm
Crosswise stroke: 650mm
Drive type : servo motor1.8kw

Cup Stacking Machine
Motor: 2kw
Dimension: 3700x1500x1200

Chiller 10P

Cooling capacity: kw/50hz 29 Kcal/Hr/50Hz 31000

Compressor power: 8.3kw

Cooling water flow: 5.95m3

Pipe Diameter 1-1/2''

Chilled fluid flow: 4.95m3

Water pump: 0.75kw

Weight:455kg

Dimension: 1450x800x1450

Usage: Its used for mould

FAQ

Q1: Do you have different models for each machine? Reply: Yes, we have different models and we can make the machine according to your requirements.
Q2: What is the production time?
Reply: Normally we need around 45 days.

Q3: What service you can offer after we buy the machine?
Reply: We have a few experienced technicians who can help to install and test running the machine anytime
overseas. Moreover, our own export personel will give you the service support after buying the machine. As long as you have any questions, we will try our best to help you.

Q4: Should the customer send the sample cups?
Reply: Yes, if there is. If the customer has no samples, please send a drawing or a photo of the sample, and let us know the size. Then we will send the drawing for your confirmation. Q5: What about the payment terms? Reply: We accept T/T. 30% as deposit and 70% balance should be paid before delivery. We can also accept 100% confirmed irrevocable L/C at sight.

Q6: What is the capacity of the thermoforming machine?
Reply: The accurate capacity depends on the size and material of the products.

Q7: What kinds of products can the thermoforming machine produce?
Reply: It can produce all kinds of disposible plastic cups, bowls, plates, boxes, yogurt cups, plant pots, food container, etc.
