Product Description

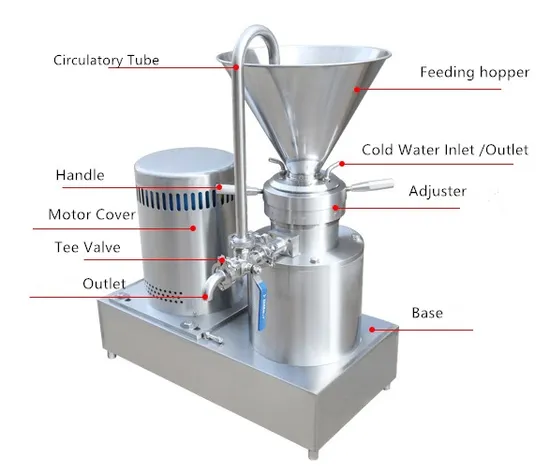

Horizontal Colloid Mill CE Meat Colloid Mill Colloid Mill Factory
JM series colloid mill is new model equipment is that wet style particle processes, Be put into use emulsifying or homogeneity in all kinds of milk shape liquid, smash, widely use with food(Jam, juice, soymilk, dairy products, drink etc. )pharmacy (of all kinds, nutrient solution, Chinese patent drug, cream) chemical industry (toothpaste, cosmetics, detergent)Agents such as the grease, petroleum catalysator chemical industry pigment, dyestuff, lube) And industry such as milk selections, emulsification dynamite produces usage.
Main Application :
Range of Application :
Foodstuff industry:aloe, flower dust wall-broken, pineapple, gingili, ice cream, jam, syrup, soy, bean, grass nut milk, dairy produce, malted milk, essence, drinks, emulsified chicken bones, emulsified pigskin and other animal skins.
Chemical industry:
oil paint, dye, coloring matter, dope, lubrication, lubrication grease, diesel oil, petrol activator, emulsified bitumen, adhesive, scour, plastic, glass steel, etc.
Life chemistry :
toothpaste, scour, shampoo, shoeshine, cosmetic, bath extractive, soap, sweet-smelling grease etc.
Pharmaceutical industry:
syrups, nutrition fluid, Chinese patent medicine, poultice, biology produce, fish liver oil, pollen, queen bee plasma, bacterin, ointments, liquid tonic taken orally, spasmolytic, pancreas and enzyme preparation, emulsion, herd drug etc.
Construction industry:
dopes including inside and outside walls dope, antisepsis waterproof dope, porcelain dope, colorful dope, pottery and porcelain enamel etc.
Other industry:
plastic industry, weave industry, paper making industry, biology chemical, environmental protection and economization on energy, coal floatation, universities, scientific research institutes etc.

TYPE		JMF80	JMF100	JMF120	JMF140
Emulsification degree(μm)		2	2	2	2
Adjustment range(mm)		1-0.01	1-0.01	1-0.01	1-0.01
Flux (KGS/H)		300-1000	500-2000	700-3000	1000-4000
MOTOR o r	Power (KW)	3	5.5	11	7.5
	Voltage(V)	380	380	380	380
	Revolve speed (r/min)	1700-3500	1700-3500	1700-3500	2900
Inlet diameter (inch)		2″	2 1/2″	2 1/2″	2 1/2″
Outlet diameter (inch)		1 1/2″	1 1/2″	1 1/2″	1 1/2″
Cold water pipe diameter (inch)		1/8″	1/4″	1/4″	1/4″
DIMENSION	length (mm)	830	880	880	880
	Width (mm)	410	460	460	460
	Height(mm)	860	1000	1000	1000
Weight (Kg)		130	200	275	320

Horizontal Colloid Mill CE Meat Colloid Mill Colloid Mill Factory .
