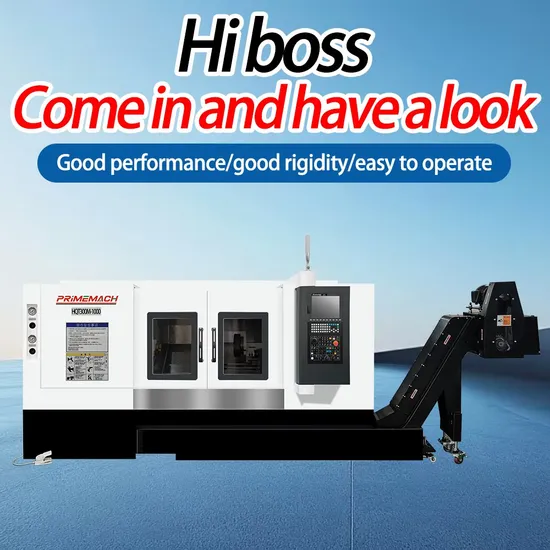

High-Tech Hqt300m-1000 Bed Lathe Bar Feeder Manufacturer CNC Milling Turn Machine

Product Description

Product Description
Turning and milling complex machine tool is an advanced metal processing equipment, which integrates many processing functions such as turning and milling. By equipped with different tools and power heads on a machine tool, as well as the function of multi-axis linkage, it can complete the processing of a variety of complex shape parts in the case of a clamping workpiece, such as the shaft and disk parts can be turned, the inner hole, the end face, the thread and other operations, but also the surface milling, drilling, tapping, milling groove, milling teeth and other milling processing
Detail
High-precision machining: Reducing the number of loading cards avoids the accumulation of errors caused by the conversion of positioning reference. Equipped with high-precision numerical control system, servo motor and transmission components, it can precisely control the motion path of the tool and cutting parameters to ensure the machining accuracy
Multi-axis linkage function: usually has multiple axes, such as X, Y, Z axis and C axis, etc., can achieve multi-axis linkage processing. It can complete the processing of various complex surfaces and contours to meet the diversified processing needs of different types of parts.
Efficient processing capability: The integration of turning and milling processes reduces the time required to transfer and reclamp the workpiece between different machines, significantly increasing production efficiency. For some complex parts that need both turning and milling, most or even all processing processes can be completed in a single clamping

CNC control system	SYNTEC 22TA
Maximum turning diameter	Φ 630 mm
Maximum machining diameter (disc type)	Phi 400 mm
Maximum turning length	1020mm
Spindle through hole diameter	Φ 86 mm
Maximum bar material machining diameter	Phi 70 mm
Maximum spindle speed	3000rpm
Spindle end form	A2-8
Chuck size	10inch hollow chuck
X axis maximum travel	260mm
X axis fast moving speed	18m/min
Maximum z-axis travel	1050mm
Z-axis fast moving speed	15m/min
Number of tools installed on the tower	12t
Outside diameter tool bar height	25*25mm
Inside diameter Maximum diameter of tool bar	32 / phi phi 40 mm
Tailstock travel	370mm
Tailstock sleeve stroke	120mm
Tail seat sleeve taper	Six Mohs
Milling shaft	5.9 kw
Spindle motor	22kw
Total machine power	45kw
Cooling tank capacity	280L
Machine height	2150mm
Floor area (length * width)	3400*1900mm
Gross machine weight	6000kg
SIEMENS/FANUC systems	High pressure effluent 30/70Bar
Power seat radial 0°	Power cutter seat axis 90°
12inch hollow chuck	Tail seat thimble
Feeder, feeder	Automatic door

Company Profile
Anhui Primacon Intelligent Equipment Co., Ltd. is an Anhui Province SMEs and a national high-tech enterprise. Located in the beautiful city of Tongling, Anhui Province, the company focuses on the research, development, production and sales of multi-axis CNC lathes and machining centers. Introducing advanced technology from Germany and Japan, is committed to improving the quality of machine tools and high level of application, and we also offer automation integration services. Our products are mainly used in fields such as automotive manufacturing, aerospace, mold manufacturing, engineering machinery, and general equipment industry.
The company's main products:
1.High precision CNC lathe HQT series, QTE series; 2.High-precision turning and milling composite series; 3.Vertical, Horizontal, Gantry Machining Center series. We always adhere to the breakthrough innovation, deep plowing expertise, continue to strive forward!
Exhibition
Our Advantages
Certifications
Packaging & Shipping
FAQ
Q: What machining functions do your machining centers support?
A: Our machining centers support drilling, tapping, milling, boring, and turning functions, with multi-axis options (such as 3-axis, 4-axis, and 5-axis) to meet the needs of complex workpiece machining.
Q: What is the precision of your CNC lathes?
A: The machining precision of our CNC lathes typically ranges from 0.001mm to 0.003mm. Depending on the model, higher precision can be customized upon request.
Q: Can the machines be customized according to customer requirements?
A: Absolutely! We support customization of machining range, spindle power, automation level, and fixture and tooling configurations to meet your production needs.
Q: Can you provide automation solutions?
A: Yes, we can provide automation solutions, including automatic feeding systems, robotic arms, and production line integration.
Q: What does your after-sales service cover?
A: Our after-sales service includes providing detailed operation manuals, instructional videos, and remote technical support to help customers quickly learn how to operate the equipment. Additionally, we maintain dedicated service records for each customer to monitor equipment performance and ensure long-term stability. We also supply spare parts and respond promptly to customer inquiries and needs to ensure proper equipment functioning.
Q: What should I do if the machine breaks down?
A: If the machine breaks down, you can contact our after-sales team at any time. We offer remote video diagnosis, phone guidance, and, if necessary, dispatch engineers for on-site repairs.
Q: How long is the delivery time?
A: Standard models usually require 30-45 days for delivery. For customized models, the delivery time may take 60 days or longer, depending on the complexity. The exact delivery time will be confirmed with the order.
Q: How are the machines packaged and transported?
A: Our machines are packaged with waterproof and rustproof materials, reinforced with sturdy wooden crates, suitable for sea and long-distance transportation to ensure the products arrive at your specified location in perfect condition.
Q: What payment methods do you accept?
A: We accept various payment methods, including T/T bank transfers and Letters of Credit (L/C). Please contact us if you have other requirements.
Q: Do you have export experience?
A: Yes, we have been exporting machines to many countries worldwide for years and are familiar with export procedures, including customs declaration, clearance, and providing relevant certificates such as CO, invoices, and packing lists.
