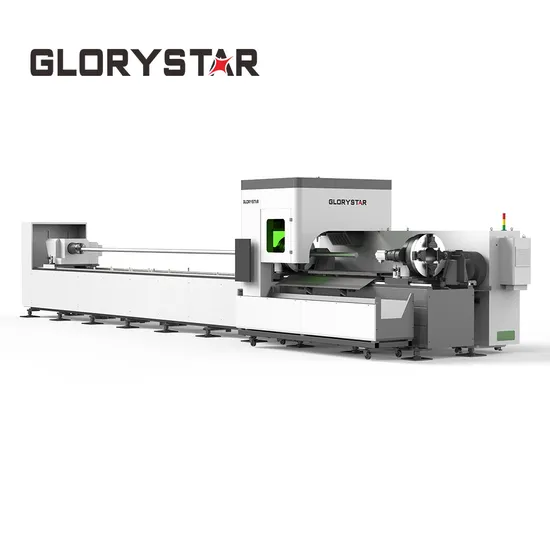

High-Speed Professional L Tube Laser Cutting Machine (3000W-6000W)

Product Description

High-speed Professional Tube Laser Cutting Machine(1000W-6000W)
Chuck with the highest standards in the industry
High security -- Large inner hole of chuck,high safety for automatic loading&unloadingStrong stability -- Integral built-in drive structure, gear and rack linkage, greatly improving transmission accuracy and stabilityIntelligent ----self-adaptive pipe diameter, supporting different sizes of pipes, no need to replace the jawsTop precision -- The roller accuracy is 0.005mm, and the clamping accuracy is less than 0.1mmGood dustproof effect -- Built-in gear to avoid cutting dust from enteringLow noise -- Top gear grinding precision in the industry
Small inertia -- Realize high-speed processing and meet the rapid cutting of small pipe fittingsLess tailings -- The material can reach the front chuck as far as possible to realize ultra-short tail cuttingStrong clamping force -- The claw adopts a special friction surface to ensure that the clamping pipe does not slip offHigh rigidity -- Barrel structure design, high supporting rigidity and strong stabilityShaped tube clamping -- With dedicated jaws, it can clamp non-closed pipes, such as channel steel (C-shaped steel), I-beam (H-shaped steel). Optional double-row roller jaws for efficient cutting of very small tubes (10~30 mm)
Fewer - tailing cutting
Supporting two fewer-tailing cutting modes at the same time, which can be selected on the software interface to meet the needs of fewer-tailing cutting of different pipe diametersInsert the main chuck into the front chuck to shorten the distance between the main chuck and the cutting head to shorten the tailingsWhen the workpiece is longer or the pipe size is larger,the front chuck moves to ensure cutting accuracy

Support a variety of profile processing
Support square pipe with a side length of 15-150mm, round pipe with a diameter of 15-210mm, and special-shaped pipe processing such as channel steel (C-shaped steel), I-beam (H-shaped steel), etc. The cutting shape is complete, meeting diversified processing needs,ultra-high cost performance.
Variable diameter wheel support
Variable diameter wheel support,suitable for a wide range of pipe diameters, flexible and convenient, manual adjustment, without changing the support, greatly improving production efficiency.

Efficient automatic unloadingThe two variable diameter wheels at the blanking place automatically rise and fall, supporting the workpiece when rising, and the workpiece slides down automatically when falling,greatly improving productivity.


Independent research and development of intelligent cutting system
1. Dedicated pipe cutting CNC system, supporting breakpoint positioning, continued cutting, corner process setting and other functions2. Automatically measure the deviation of the pipe to improve the cutting accuracy3.With special pipe cutting and nesting software, supporting single-part, multi-part nesting, co-edge, automatic sorting and other functions
Product Parameter

Feature/Model	6012	6022	6032
Laser Power(W)	1000-3000(optional)
Working Area(mm)	6000mm*Φ120mm	6000mm*Φ220mm	6000mm*Φ320mm
Overall Dimensions(mm)	12500*2500*2650	12500*2500*2650	12500*2500*2650
