In Line Extrusion Plastic Thermoforming Machine (HFTF70T)

Product Description

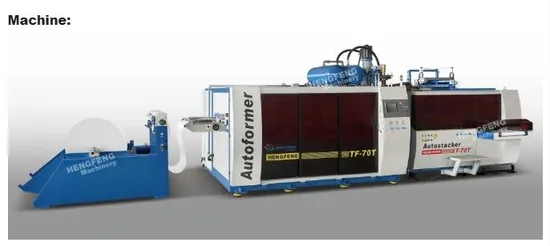

In Line Extrusion plastic Thermoforming Machine(HFTF70T)
Inline Extruder and Thermoformer professional for making pp and ps plastic cup,which most advantage less electrical consumption!

Extruder Main Technical Parameter
Screw Diameter	Φ120mm
Screw L/D	33:1
Max.Output	500kg/hr
Extruding motor power	160kw
Valid Die-head Width	850mm
Material Thickness Range	Min0.2mm;Max2.5mm
Roller Diameter	Φ450x1000mm
Thermoformer Main Technical Parameter
1- Max. Forming Area	680×320mm
2- Max. Forming Height	150mm
3-Mold Clamping force	350Kn
4-Sheet Width	Max 720mm; Min 550mm
5-Sheet Thickness	0.35mm-2.5mm
6-Heater Specification	Ceramic Heater up and down 130kw
7-Heater Control	Omron Temperature module and PLC match with control
8-Forming Method	Air pressure forming & driven by Cam
9-Operation Method	Fully automatic with touch screen control
10-Material Feeding	Servo Motor 4.4kw
11-Max. Sheet Rolling Diameter	Φ1200mm
12-Air Pressure	0.7-0.85mpa
13-Water Consumption	50L/min
14- Air Consumption	3000L/min
15- Max.Speed	35 Cycles/min
16- Power (Three Phase Four Wire)	380V,50Hz,3Phase
17- Main Motor Power	11kw
18- Scrap Rewinding Motor Power	0.55kw
19- Machine Weight	13000kg
20- Machine Dimension	(L)11000×(W)3650×(H)3500mm

Moulds:
Sample:
Shipping Packaging:
Company History:
Rui'an hengfeng machinery Co., Ltd is founded in 2008. For more than 10 years, we focus on researching, d
Eveloping, manufacturing and marketing on thermoforming machine, plastic cup production line, BOPS plastic
Thermoforming machine, mutil-layer PP/PS/PET sheet extruder, mould, etc. There are more than 72 countries
And regions cooperating with us, such as USA, south Korea, Turkey, Canada, Russia, Kuwait, Iran, Brazil,
Chile, Bolivia, Saudi Arabia, Peru, etc.
Factory Address:NO.718,Wei'er Road,Gexiang New District,Nanbin Street,Ruian City,Zhejiang Province,China.
Operation:
Contact person:
FAQ:
1. Q: Are you a factory or trading company?
A: We are a factory and giving you the quickest reply in 24 hours.
2. Q: What's your company mainly in?
A: We are mainly produce Plastic Extruder, Vacuum Forming Machine for over 10 years.Other machines have included machines in production line, such .as thermoforming machine and pp and ps extruder .
(we can produce total production line.)
3. Q: How's your strength of your company?
A: Has a group of senior technical personnels , strong technical force, we have the whole running system, including design, development ,production, installation, service. One year quality guarantee, life-time service.
4.Q: If your company has passed some certificates?
A: Yes, we have passed CE, ISO.
