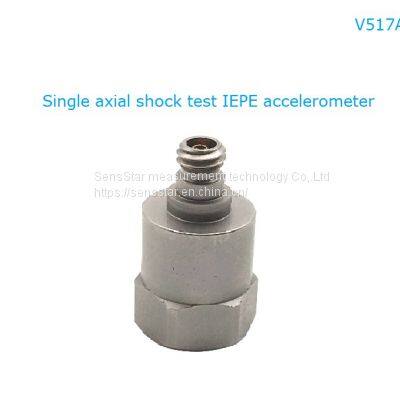

V517A Single axial shock test IEPE accelerometer,vibration sensor

Product Details

Product Description

Product Description
Model V517A is an IEPE single axial accelerometer permitting simultaneous shock and vibration measurements. V517A features an annular shear ceramic crystal which exhibits excellent output stability over time. The accelerometer incorporates an internal circuit in a twowire IEPE system which transmits its low impedance voltage output through the same cable that supplies the constant current power. Signal ground is connected to the outer case of the unit. Isolated mounting studs or housing are available. Polarity inversion protection for the amplify circuit is inherent in the circuit design. The welded stainlesssteel construction provides a lightweight hermetic housing. The miniature 10-32 glass insulated connector provides long-term stability over the operating temperature range. In addition to adhesive mounting, the 517A has 10-32 threaded holes for stud mounting on the test object. The V517A provides wide frequency response, which is ideal for shock measurement especially for lightweight structures and drop testing for the packaging industry.
Feature / Application
• Miniature Size
• Stud mounting
• Hermetic seal
• Annular shear mode
• Wide temperature range
• Wide frequency response
Product specification

Range(g)	10000
Velocity Range(in/s)	0
Sensitivity( ±10%)	0.5
Frequency Range(Hz)	0.5 - 15000
Weight(g)	7
Shock Limit	20000
Operation Temp(°C)	-50 to 125
Output Type	IEPE
Axial	Single axial
Mounting	Stud
Temp.Signal	N/A
Sensor Type	IEPE
Sens. Unit	mV/g
Excitation	Constant current: 2~10mA
Mating cable	11
