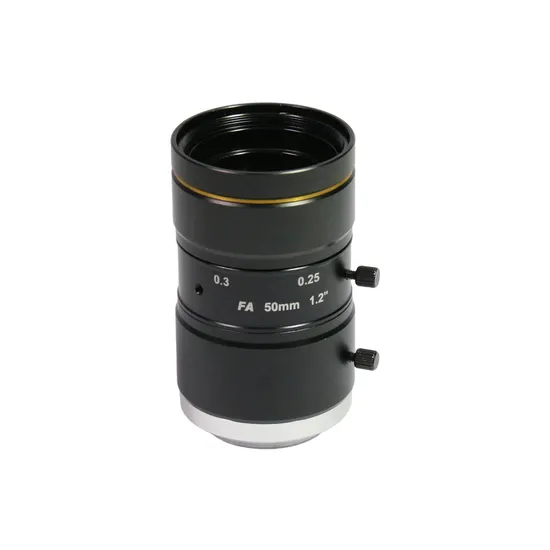

25MP 50mm 1.2" F2.8 C-Mount Fixed Focus Machine Vision Lens
| US$99.00-129.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
02-008-105
Optical Zoom
Fixed Focus
Lens
Ccht
Image Stabilization
Image Stabilization
Imager Sensor
1.2"(19.3mm)
Wavelength
420~1000nm
FL
50mm
Interface
C-Mount
Fno
2.8
Rfl
/
Thread
M30.5×p0.5
Control Mode
Manual
Transport Package
Carton
Specification
Φ 35mm
Trademark
CCHT
Origin
Sichuan
HS Code
9002909090
Production Capacity
2000/Month
Product Description
Technical Parameters of Machine Vision Lens / FA Industrial Camera Lens | ||||||||||||
| No. | Model No. | Resolution | Sensor format | FL (mm) | Mount | Filter size (mm) | Control mode | FNO | BFL (mm) | FOV | Distortion | Working temperature |
| 1 | 02-008-101 | 25MP | 1.2" | 12 | C | / | Manual | F2.8 | / | H×V: 62.6°×55.6° | -0.22%@y=9.6mm | -20ºC~+60ºC |
| 2 | 02-008-102 | 25MP | 1.2" | 16 | C | / | Manual | F2.8 | / | H×V: 49.4°×43.1° | -0.09%@y=9.6mm | -20ºC~+60ºC |
| 3 | 02-008-103 | 25MP | 1.2" | 25 | C | M30.5×P0.5 | Manual | F2.8 | / | H×V: 32.6°×28.4° | -0.22%@y=9.6mm | -20ºC~+60ºC |
| 4 | 02-008-104 | 25MP | 1.2" | 35 | C | M30.5×P0.5 | Manual | F2.8 | / | H×V: 23.6°×20.5° | -0.08%@y=9.6mm | -20ºC~+60ºC |
| 5 | 02-008-105 | 25MP | 1.2" | 50 | C | M30.5×P0.5 | Manual | F2.8 | / | H×V: 16.6°×14.4° | -0.02%@y=9.6mm | -20ºC~+60ºC |
| 6 | 02-008-106 | 25MP | 1.2" | 75 | C | M30.5×P0.5 | Manual | F2.8 | / | H×V: 11.2°×9.6° | -0.01%@y=9.6mm | -20ºC~+60ºC |
