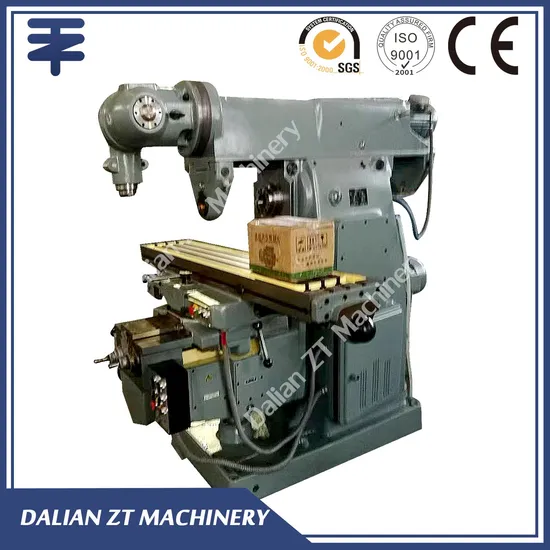

X6232cx16 Universal RAM Rotary Head Milling Machine
| US$12,000.00-28,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
X6232Cx16
Structure
Ram
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Table Size
1600X320mm
RAM Travel
550mm
Table Travel (X/Y/Z)
800X255X320mm
Main Motor Power
5.5kw(H) 3kw(V)
Distance Between Spindle Nose and Table
30-350mm
Distance Between Vertical Nose and Tab
250-570mm
Distance Between Spindle Axis and Arm Su
350mm
T-Slots(No./Width/Pitch)
3/18/70mm
Weight of Machine
3100kg
Transport Package
Wooden Case
Specification
2294x2045x2158mm
Trademark
Dalian ZT Machinery
Origin
China
HS Code
8459699000
Production Capacity
300 Sets/Month
Product Description
Features:* The milling machine with automatic feed controlled one servo motor in X,Y,Z-axis;
* One handle is used to control forward/backward movement in X,Y,Z-axis
| Machine model | X6232x16 | X6232Cx16 |
| Table size | 320x1600mm | 320x1600mm |
| T-slot (No. width x Distance) | 3-18x70mm | 3-18x70mm |
| Table rotary angle | ±45° | ±45° |
| Max. working load | 500kg | 500kg |
| Travel (longitudinal/cross/vertical-manual) | 800x255x320mm | 800x255x320mm |
| Travel (longitudinal/cross/vertical-automatic) | 780x240x300mm | 780x240x300mm |
| Spindle motor power (H/V) | 5.5/3kW | 5.5/3kW |
| Spindle bore (H/V) Tool shank (H/V) | ISO(50/4)x | ISO(50/4)x |
| Spindle speed (H/V) | 18 No.s-1500/9No.S 125-2000rpm | 18 No.s-1500/9No.S 125-2000rpm |
| Distance from spindle centerline to worktable | 30-350mm | 30-350mm |
| Distance from vertical spindle nose to worktable | 40-425mm | 250-570mm |
| Distance from vertical spindle centerline to column guideway | 350mm | 350mm |
| Vertical head swivel angle | 360° | 360° |
| Feed rate (longitudinal, cross, vertical) | 1.5kW | 1.5kW |
| Weight of machine | 3100kg | 3100kg |
| Overall dimensions of machine | 2294x2045x2158mm | 2294x2045x2158mm |
Standard accessories:
Handle
Spanner
Draw-bar
Cooling pipe pillar
Milling arbor B-22X60X390 B-27X60X390 32X60X750
Milling arbor for milling machine end cutter 3-40
Cylindrical cutter chuck155(40#)
Sleeve for cutter shank 2-3
Reduction sleeve 3-2
Cutter Arbor 22X35X110 27X40X110
Milling arbor for head22X63
Face milling cutter arbor wrench 16 30
Miller draw-barM24X720
Anchor boltM20X500
Single wrench50
360° Rotary Milling Head
