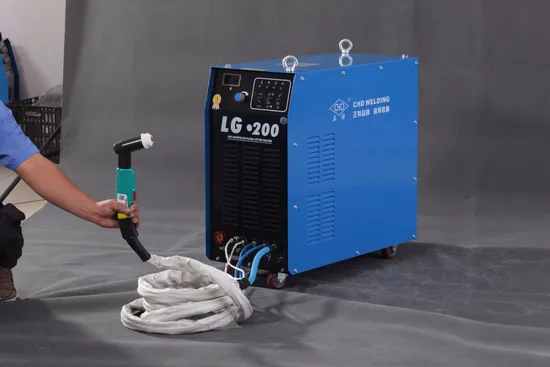

Inverter Air Plasma Cutter for CNC Cutting Machine (LG-200)

Product Description

IGBT INVERTER AIR PLASMA CUTTING POWER SUPPLY
Main Features:
1, This plasma cutting machine is specially work with CNC machinery and robot cutting, the machine is small volume, light weight which is easy to install on the machinery;
2, Good HF arc strike technology, the arc strike controller is separate from the power source, which reduces the HF interruption to the CNC control system;
3, The gas control is separate with the power source: with shorter gas circuit, more stable gas pressure and cutting quality;
4, High duty cycle designing which is suitable for heavy industry use;
5, Cutting current up slope technology to reduce the wearing parts consumption;
6, Accurate cutting current preset, step-less control;
7, With gas pressure checking and indication function;
8, With gas checking function which is easy to adjust the gas pressure;
9, With overload, lack voltage, over voltage and lack phase protection;
10, LG-100/200 with constant arc strike function, which suitable for plate cutting.
Product Application
1, It is widely used for carbon steel, alloy steel, ferrous metal cutting;
2, It is widely used in metal cutting industries like advertisement, pressure vessel, water and electric power, chemical, aerospace, automotive, constructions and parts fabrication.

Model	LG-100	LG-100D	LG-130	LG-200	LG-400
Rated input power, v/hz	3-380±15%, 50/60
Rated input capacity, KVA	14.5		20	35	94
Rated output voltage,V	120		132	160	200
Duty cycle, %	100 (40ºC)
Open-load voltage, V	280		290	320	380
Output current range, A	30-100		30-130	30-200	30-400
ARC voltage output signal scale	1:1
Torch gas pressure, Mpa	0.4-0.5		0.4-0.6		0.45-0.6
Max cutting thickness, mm	40		45	65	90
Optimal cutting thickness, mm	0.3-22		0.3-25	1-45	1-55
Arc striking method	High frequency	Low frequency	High frequency
Degree of protection provided by enclosure	IP21
Insulation grade	F
Type of cooling	Water cooling		Air cooling/water cooling	Water cooling
Power supply dimensions, mm	340*740*860		400*810*720	380*870*800	500*730*1040
Overall Dimension, mm	400*780*720		450*810*750	430*890*820	630*960*1400
G.W.(KG)	53		75	82/109(with Accessories)	170/197(with Accessories)

Plasma Cutting Thickness(with Domestic P80,YY Torch)

Thick material, mm	LG-100		LG-130		LG-200		LG-400
	handle	machine	handle	machine	handle	machine	handle	machine
C.S.	0.3-30	1-22	0.3-25	1-25	1-65	1-45	1-80	1-50
S.S.	0.3-300	1-22	0.3-25	1-25	1-65	1-45	1-80	1-50
Aluminum	0.3-25	1-16	0.3-26	1-19	1-48	1-33	1-60	1-38
Red copper	0.3-10	1-6	0.3-9	1-7	1-16	1-11	1-20	1-12

Standard componets:
Cutting torch - 1 set (5m), Grounding cable - 1 set (2m), Air filter - 1 piece.
Extra Consumables (10 electrode, 10 tips,10 sheild cover)
Options:
Straight handle torch, gouging cutting torch, cooling water tank, CNC cutting machine, robot
