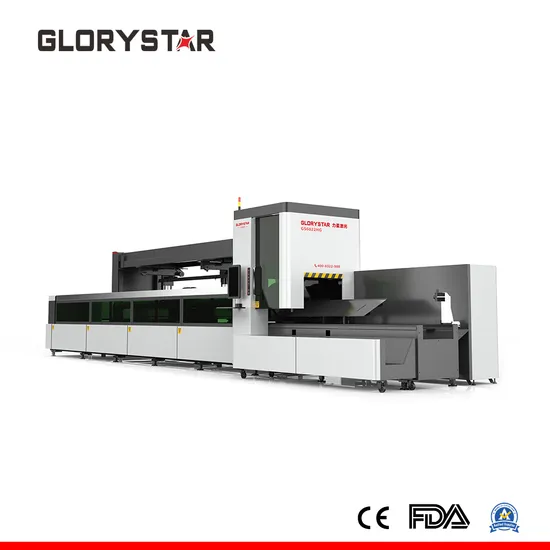

1000W-3000W Water Cooling Conduit Laser Cutting Machine

Product Description

1000W-3000W Water Cooling Conduit Laser Cutting Machine
>>> Advantages
1.Professional pipe/tube cutting machine GS6022HG with pneumatic three chuck design that can automatically identify the size and the center point of the pipe when clamping the pipe, with high centering and processing accuracy to ensure high-quality.
2. 3 chucks professional pipe cutting machine GS6022HG of Glorystar Laser, it's head and tail chuck can easily turn around to cutting to realize Zero-tailing cutting which saves material costs more than 20,000USD.
3. Glorystar Laser tube cutting machine GS6022HG with 3 chucks can realize "0"-tailing cutting with higher tube utilization rate and lower cost. Cutting length can be up to 6 meters with non-deformation, bring long-standing working accuracy!
4. Professional tube cutting machine GS6022HG of Glorystar Laser with a fully automatic loading device which finishes automatically loading materials work, bring lower labor costs, and higher productivity.
>>> Product Introduction
GS-6022HG has a powerful cutting function, pneumatic three chucks, can cut square pipes, round pipes, rectangular pipes and various special-shaped pipes; processing pipe diameter and length range can be customized (standard round pipe diameter Φ30~160mm, length 12000mm).
Adopt chucks and push-type cutting method, with high centering precision and processing precision.
>>> Technical parameters

Processing format (L/W)		6000mm x φ220mm		Machine area		12500mm×2500mm
X axis length		450mm		Machine volume		12500mmx2500mmx2650mm
Y axis length		7500mm		CNC system		Cypcut bus pipe cutting system
Z axis length		450mm		Monitor		17″LCD
W axis length		Infinite rotation
Laser power		(Customer selection)
X/Y axis geometric positioning accuracy		≤0.05mm		Transfer method		Rack and pinion drive
X/Y axis repeat positioning accuracy		≤0.03mm		Maximum load-bearing pipe cutting		180Kg
X/Y axis maximum positioning speed		60m/min		Machine weight		10.0T
X/Y axis maximum acceleration		0.5G		Equipment power		33.75KW (Does not contain laser, chiller)
Cutting range		Conventional pipes with circumscribed circle<Φ220mm		Phase		3
Maximum weight of pipe		30Kg/M		Power supply rated voltage		380V
Total power protection level		IP54		Frequency		50Hz

>>> Application
1.Applicable to all kinds of commonly used closed and non-closed metal pipe processing, such as: square pass, round pipe, elliptical pipe, angle iron, channel steel, I-beam, etc.
2.Application industry: kitchen utensils, lighting hardware, precision parts, sheet metal processing and other metal products processing industries;
3.Application materials: carbon steel, stainless steel, copper, aluminum, galvanized pipe, electrolytic plate and other metal materials.
>>> Sample
>>> Quality Control and R&D
>>> After-sale Service
Installation and debugging
Technicians can be sent to the factory for training (free of service fee for the first time). Customers only need to provide accommodation for engineers.
Training
Free of charge for training within warranty. But customers need to take charge of the cost for accommodation, air tickets, visa fee.
24/7 online service
All our laser equipment is provided with 12 months warranty. Glorystar Laser offers free maintenance or replacement service if something is wrong with the equipment under warranty. If it is out of warranty,Glorystar Laser will send engineers to your factory as soon as possible and only charge the cost of parts.
Accessories supply
IPG laser source is 2 years. Other parts is one year except for optical and consumable parts. Prolong serve is always available for option. Free of charge for fixing and changing parts within warranty. Only changing parts , the freight should be charged by customers.
Remote diagnosis
Glorystar Laser can check the running status of the customer's laser cutter through our remote maintenance system. Our technicians can perform troubleshooting via remote access instead of on-site diagnosis and maintenance, saving you a lot of time.
Additionally, Glorystar Laser will establish a special user profile for all customers who have purchased equipment from us to record your usage, maintenance records and other information. This will help us to learn about customer information more quickly and thus provide necessary upgrades according to customer feedback
