Truck Battery Hydraulic Portable Trailerc Truck Mounted Diesel Stationary Mounted Small Concrete Conveying Pump Transfer Pump
Basic Info.
Model NO.
HBTS30/10/30 Concrete Pump
Type
Concrete Pump
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
25 M3/H
Feeding Height
1400mm
Vibrating Amplitude
1.1mm
Certification
ISO9001: 2000
Condition
New
Color
Yellow
Model
Hbts30/10/30 Concrete Pump
Working Capacity
25 M3/H
Outlet Pressure
10MPa
Rated Power
40.1kw
Rated Speed
1280r/Min
Hydraulic Tank Volume
250L
Dimensions L*W/*H
3400*1100*1700mm
Total Mass
1500kg
Transport Package
Wooden Case or as Required by The Customer
Specification
3400*1100*1700mm
Trademark
ZHONGMEI
Origin
Shandong China
Production Capacity
1000 Sets Per Month
Packaging & Delivery
Package Size
340.00cm * 110.00cm * 170.00cm
Package Gross Weight
1500.000kg
Product Description
Hot SalesProduct Description
Introduction of Concrete Machinery Portable Mobile Diesel Electric Trailer Mounted Mini Concrete Conveying Pumping Machine Cement Transfer Pump
Operators and relevant equipment managers should read the instruction manual carefully to master its structural principle, use and maintenance, and relevant knowledge of pumping concrete; when using and operating the concrete pump, they should strictly follow the instruction manual. Because the operator needs to have a process to fully grasp the mechanical properties, the instruction manual should be spared randomly. At the same time, special operating points should be formulated according to the instruction manual to effectively control some variable factors in the pumping technology, such as pump location, pipeline arrangement, etc.
zmwm21
Product Parameters
Parameters of Concrete Machinery Portable Mobile Diesel Electric Trailer Mounted Mini Concrete Conveying Pumping Machine Cement Transfer Pump
| Maximum Theoretical Concrete Delivery Volume | 25m³/h |
| Maximum Pumping Concrete Pressure | 10MPa |
| Dispense Valve Form | S-pipe valve |
| Concrete Conveying Cylinder Bore*Stroke | Φ160*750mm |
| Outlet Diameter | Φ125mm |
| Rated Power | 4120 |
| Rated Speed | 1280r/min |
| Hydraulic Circuit Form | open circuit |
| Pumping Xiyong Oil Pressure | 18MPa |
| Stirring System Oil Pressure | 8MPa |
| Hydraulic Tank Volume | 250L |
| Maximum Conveying Vertical Distance | 120m |
| Maximum Conveying Horizontal Distance | 250m |
| Maximum Particles Allowed | 30mm |
| Dimensions L*W/*H | 3400*1100*1700mm |
| Total Mass | 1500kg |
Detailed Photos

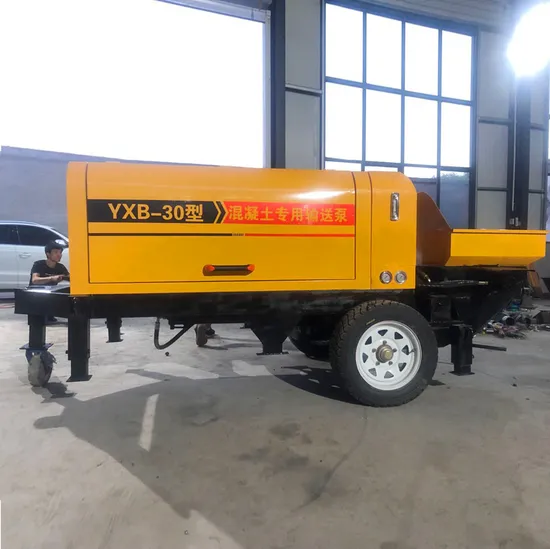

Photos of Concrete Machinery Portable Mobile Diesel Electric Trailer Mounted Mini Concrete Conveying Pumping Machine Cement Transfer Pump
