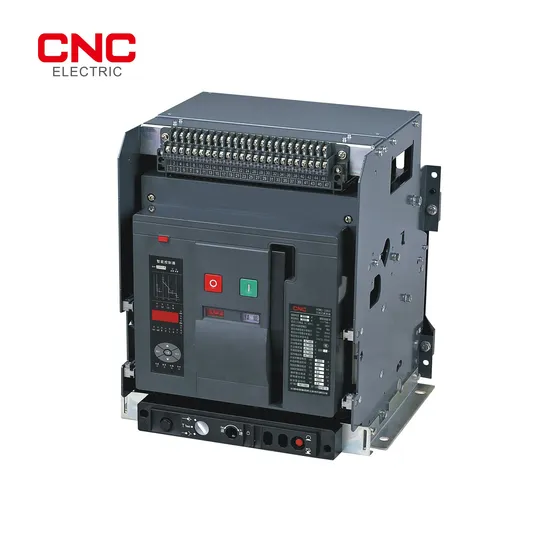

CNC Ycw3-2000 Series Air Circuit Breaker
| US$1.00-999.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
YCW3-2000
Speed
Normal Type Circuit Breaker
Arc-extinguishing Medium
Air
Installation
Fixed
Structure
ACB
Poles Number
4
Type
Circuit Breaker
Function
Conventional Circuit Breaker, Circuit-Breaker Failure Protection, Overcurrent Protection, OVP(Overvoltage Protection), RCCB
Certification
VDE, ISO9001-2000, CE, CB, CCC
Competitive Quotation
Yes
Transport Package
Box
Specification
23CM
Trademark
CNC
Origin
China
HS Code
8536200000
Production Capacity
10000/Day
Product Description
CNC Ycw3-2000 Series Air Circuit Breaker Product DescriptionYCW3 series air circuit breaker(hereinafter called ACB) is suitable for the circuit of AC 50Hz/60Hz with rated service voltage 400V, 690V and rated service current between 200A and 6300A. It is mainly used to distribute electric energy and protect circuits and electric equipment against over-load, under-voltage, short-circuit and single- phase earthing fault.
With intelligent and selective protection functions, the breaker can improve the reliability of power supply, and avoid unnecessary power failure. The breaker is applicable for power stations, factories, mines(for 690V) and modern high-buildings, especially for the distribution system of intelligentized building.
Standard: IEC/EN 60947-2.
Breaking capacity
| Rated current In(A) | 1600 | 2000 | 3200 | 4000 | 6300 | |
| Rated ultimate short circuit breaking capacity Icu(kA) | 400/415V | 65 | 80 | 100 | 120 | 135 |
| 660/690V | 50 | 65 | 85 | 85 | 100 | |
| Rated service short circuit breaking capacity Ics(kA) | 400/415V | 55 | 65 | 80 | 100 | 135 |
| 660/690V | 42 | 65 | 70 | 85 | 100 | |
| Rated short time withstand current Icw.1s(kA) | 400/415V | 50 | 65 | 80 | 100 | 135 |
| 660/690V | 42 | 65 | 70 | 85 | 100 | |
| Rated short circuit making and breaking capacity Icm(kA) | 400/415V | 110 | 176 | 220 | 264 | 297 |
| 660/690V | 77 | 143 | 154 | 187 | 220 | |
| Electric life | 8000 | 8000 | 8000 | 6000 | 1500 | |
| Mechanical life (Maintenance) | 30000 | 30000 | 20000 | 20000 | 5000 | |
| Mechanical life (Non-maintenance) | 20000 | 15000 | 12500 | 10000 | 2500 | |
| Dimension(mm) W×H×L | ||||||
| Drawout type | 3P | 285×345×351 | 375×451×432 | 435×486×439 | 435×486×439 | 930×486×439 |
| 4P | 352×345×351 | 470×451×432 | 550×486×439 | 550×486×439 | / | |
| Fixed type | 3P | 254×251×320 | 362×362×395 | 426×378×395 | 426×378×395 | / |
| 4P | 324×251×320 | 457×362×395 | 537×378×395 | 537×378×395 | / | |
