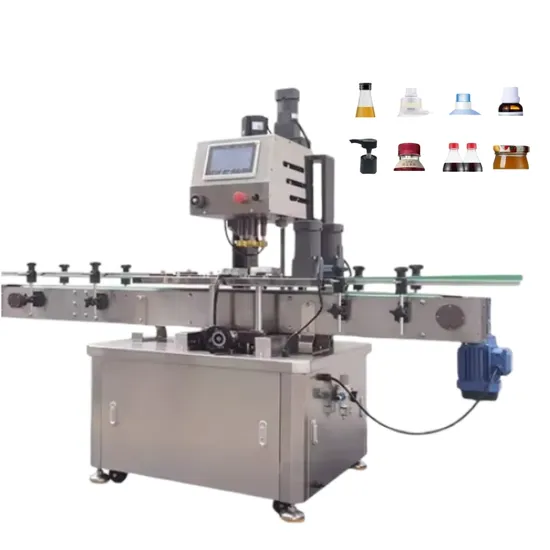

Jinfeng Automatic Tabletop Essential Oil Lotion Plastic Spray Bottle Screw Capping Tightening Machine
Basic Info.
Model NO.
JF-XG
Packaging
Plywood Case
Automatic Grade
Automatic
Packaging Material
Plastic
Application
Cosmetics, Cleaning, Detergent, Drinks, Oil, Dairy Products, Skin Care Products, Hair Care Products, Tea, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour, Seasoning
Usage
Capping
Type
Cap Sealing Machine
Packaging Material Mechanical Properties
Flexible Container Sealing
Material Type
Liquid
Advantage
High Efficiency
Machinery Test Report
Provided
Video Outgoing-Inspection
Provided
Core Components
Engine, Motor, Pressure Vessel, Gear
Material
SUS304, SUS316
Packaging Type
Bottles
Capping Speed
30-60bottles/Min
Bottle Type
Plastic Bottle Glass Bottle Cans
Key Selling Points
Easy to Operate
Voltage
220V
Product Name
Screw Capping Machine
Keywords
Bottle Capping Machine
Feature
High Efficiency
Key Words
Automatic Capping Machine
Machine Size
2000*800*1400-1600mm
Transport Package
Wooden Case
Specification
250KG
Trademark
JINFENG
Origin
China
HS Code
8422309090
Production Capacity
10 Sets Per Months
Product Description
Jinfeng Automatic Tabletop Essential Oil Lotion Plastic Spray Bottle Screw Capping Tightening MachineApplication Mainly applied to different materials and different specifications of the cover, cap. Apply screw caps, theft, pressed into the cover.Capping head with constant torque, pressure can be easily adjusted. Compact structure, reasonable, and can be easily linked into line with other devices.
Product Description 1. Into the bottle, positioning, operator action, using air cylinder sports.
2. Attached locating safety device to prevent the dumping of the bottle.
3. Replacement bottle size, we only need to adjust the height, simple operation.
4. This model for the plastic cover, aluminum cover and spiral seal designed to be adjusted to follow the cap material capping tightness. Detailed Photos
Product Parameters
| Model | JF-XG-100 |
| Machine size | 2000*800*1400-1600MM(Can lift)(Customized) |
| Machine Weight | 175KG(Customized) |
| Material | SUS#304 Stainless steel and aluminum components |
| Conveyor working height | 820-880MM(Customized) |
| width of the conveyor belt | 114MM(Customized) |
| Operating Voltage | 220V 50HZ/60HZ |
| Working pressure | 4-6Mpa |
| control method | PL scan write controller/Brand:Mitsubishi |
| Operation method | The man-machine interface 7-inch screen |
| Capping unit height adjustment | Automatic lifting/Electric lift |
| Rotary cap motor | (Standard)Choose JSCC brand,60W/50HZ or 40W/50HZ Optional servo motor drive, can set the torsion |
| Conveyor motor | Choose JSCC brand,120W/50HZ,Rectangular hollow structure speed reducer |
| Pneumatic Components | Choose Xingchen brand,electromagnetic valve,air cylinder |
| Parts recognition | Imported optical fiber/Reflex type |
| Suitable work piece size | Diameter 30-120MM(Customized) |
| Suitable work piece height | Height 50-400MM(Customized) |
| Capping (type) | Duckbill pumps,Spray pump,nozzle,Common circular screw cap |
| Capping diameter range | (standard)20-75MM,45-130MM(Manual switching) |
Note: In case of nonconformity of the data in the form due to technical improvement or customization, the real object shall prevail.
Packaging & Shipping 1.Package:PE film cover inside and then plywood case.
2.Accept terms:EXW,FOB,C&F,CIF,etc.
3.Shipping by Express,Air or Sea based on customers' requirements and lowest cost solution.
Certifications
Our Company
FAQ If you have any further questions, please feel free to contact us and we are happy to answer them for you.Click here.
