High-Performance Perimeter Surveillance Radar with Low Effective Radiated Power

Product Description

Air Surveillance Radar

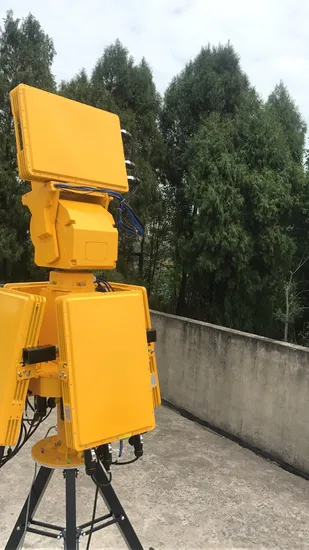

ASR 223-5C1K-3D / C band
ASR 223-5C1K-3D is a security surveillance radar, which is the same type of radar as ASR 223-1C1K which is a phased array radar with advanced technology and stable performance developed for the detection of low flying drones.
The difference is that ASR 223-1C1K is a single-array radar, while ASR 223-4C1K-3D is a four-array radar, as well as equipped with height finding radar.
Features
-- High data rate and high positioning accuracy
-- Multi-Input Multi-Output (MIMO) system
-- All-weather adaptability
Application
Airports, border areas and other key areas security surveillance
Specification

Item	Specification
Working mode	Phased array + Pulse Doppler
Working frequency	C band (5.5-5.8GHz)
Detection range	1.2km (DJI Phantom 3/4," Mavic", RCS≈0.01 square meter)
Minimum detection range	≤100m
Azimuth coverage	4-panel: 360°+ ( Height Detection Radar 3D)
Elevation coverage	40°
Distance accuracy	≤10m
Azimuth Accuracy	≤1.0°
Target detection speed	0.2m/s - 25m/s
Speed precision	≤0.2m/s
Data rate	≤1.5s
Peak Output	4W/Panel
Net weight	≤70kg
Power supply	AC220V/250W
Interface	Ethernet (UDP protocol)
Dimension	725mm X 725mm X 735 mm (2D) 725mm X 725mm X 1400 mm (3D)
Working temperature	-40 ºC ~ +60 ºC
Working Environment	Rain-proof; Dust Prevention; Sand-prevention; Moisture-proof, Mould-proof and Salt-proof
