Data Centers Oceanstor 5610 V5 Intelligent Hybrid Flash Storage Systems Server Network Storage

Product Description

Product Description
New-Gen OceanStor 5210/5310/5510/5610 Hybrid Flash Storage Systems Hua wei's new generation of mid-range hybrid flash storage systems is designed to future-proof data centers.
Hua wei New-Gen OceanStor 5210/5310/5510/5610 adopt Hua wei proprietary algorithms to efficiently deploy data across different media,using Solid-State Disks (SSDs) to accelerate mission-critical data. Comprehensive convergence and value-added features alsodeliver system efficiency and reliability, while built-in insight modules provide intelligent prediction capabilities.
Such features provide diversified storage services to users, making the systems purpose-built for finance, government,manufacturing, education, healthcare, energy, and media entertainment sectors.
Technical Specification

model	OceanStor 5210	OceanStor 5310	OceanStor 5510	OceanStor 5610
Hardware specifications
Maximum cache (dual control, with controller expansion)	128 GB- 512GB	128 GB-2 TB	384 GB-4 TB	768 GB-8 TB
Supported storage protocols	FC, iSCSI, NFS, CIFS, SMB	FC, iSCSI, NFS, CIFS, FC-NVMe, NVMe over RoCE, NFS over RDMA, FTP*, HTTP*, NDMP, S3*, SFTP*
Front end channel port type	8/16/32 Gbps FC, 1/10/25 Gbps Ethernet	8/16/32 Gbps FC/FC-NVMe, 1/10/25/40/100 Gbps Ethernet, 25Gbps NVMe over RoCE/NFS over RDMA	8/16/32 Gbps FC/FC-NVMe, 1/10/25/40/100 Gbps Ethernet, 25Gbps/100Gbps NVMe over RoCE/NFS over RDMA
Backend channel port type	SAS 3.0	100Gbps RDMA/SAS 3.0
Maximum number of hot swappable I/O modules/control box	4	6	12
Maximum number of front-end host interfaces/control box	28	40	48
Hard disk type	SAS TLC SSD,SAS, NL-SAS
Software specifications
RAID support	RAID 10*, RAID 5, RAID 6 and RAID-TP (tolerate simultaneous failure of 3 disks), etc
Value added software	SmartAcceleration, SmartThin, SmartQuota, SmartMulti-Tenant, SmartQoS, SmartVirtualization, SmartMigration, SmartCompression,SmartMobility*, SmartMove HyperSnap, HyperReplication, HyperClone, HyperMetro, HyperCDP, HyperLock, HyperEncryption, HyperDetect*, HyperLink*, CloudBackup*,NFS+
Storage management software	DeviceManager,UltraPath,DME IQ)
Electrical specifications
source	100V~240V AC±10%,192V~288V DC,-38.4V~-75V DC			200V~240V AC±10%, 192V~288V DC
Dimensions (length x width x height)	2.5-inch controller enclosure: 520mm×410mm×86.1mm 3.5-inch controller enclosure: 600mm×447mm×86.1mm	2.5-inch controller enclosure: 520mm×447mm×86.1mm 3.5-inch controller enclosure:600mm×447mm×86.1mm NVMe controller enclosure: 620mm×447mm×86.1mm	2.5-inch controller enclosure: 820mm×447mm×86.1mm 3.5-inch controller enclosure: 900mm×447mm×86.1mm NVMe controller enclosure: 920mm×447mm×86.1mm
	SAS Hard disk rack: 410mm×447mm×86.1mm NVMe Hard disk rack: 620mm×447mm×86.1mm NL-SAS Hard disk rack: 488mm×447mm×175mm
Weight (excluding hard drive units)	2.5-inch controller enclosure:16.4Kg 3.5-inch controller enclosure:16.3Kg	2.5-inch controller enclosure:23.75Kg 3.5-inch controller enclosure:24.1Kg NVMe controller enclosure:21.25Kg	2.5-inch controller enclosure:38.05Kg 3.5-inch controller enclosure:38.05Kg NVMe controller enclosure:40.65kg
	2.5-inch SAS Hard disk enclosure:13.4Kg 3.5-inch SAS Hard disk enclosure:26.5Kg NVMe Hard disk enclosure:24.95Kg
Working environment temperature	The ambient temperature at an altitude of -60~+1800m is 5 ºC~35 ºC (cabinet)/40 ºC (frame). At an altitude of 1800m~3000m, for every 220m increase in altitude, the ambient temperature (upper limit) decreases by 1 ºC.
Working environment humidity	10%~90%R.H.

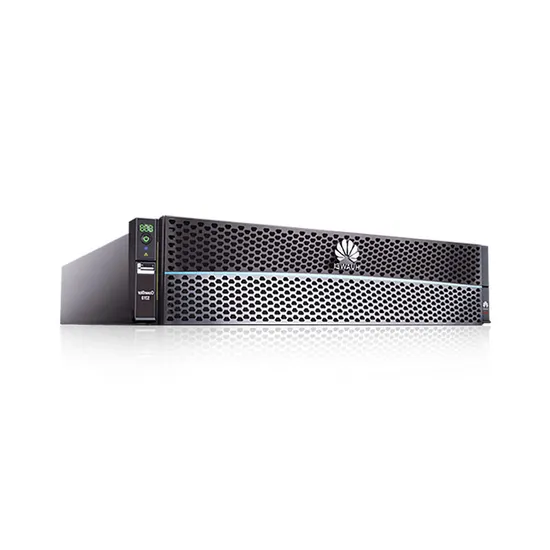

Product Display
Related Products
Company Profile
Our Advantages
The product is 100% genuine and has sufficient stock in stock;
Price discounts and fast delivery;
After sales service guarantee; Support sample and customization services.
FAQ
Q: Are you a trading company or a manufacturer? Can I use our own logo and label?
A: We are a trading company that provides domestic and international trade services. We also provide OEM/OEM services.
Q: What are the guarantees for product quality?
A: We have professional engineers who test each piece of equipment before shipment to ensure that the shipped products are in good condition.
Q: How did you resolve a defective product when I received it?
A: We have professional personnel to help you solve the problem. If the product is defective, we usually offer you a return, refund, or replacement of the defective product.
Q: What is your payment method and delivery time?
A: We accept credit cards, wire transfers, PayPal, and other payment methods. We also support fast shipping within 72 hours.
Q: What is the MOQ and how long is the warranty period?
A: The minimum order quantity for normal products is 1, and the product warranty period is usually 1 year.
