The Most Cost-Effective Puffed Snack Food Extruder Making Machine Stainless Steel Frying Snacks Fully Automatic Fried French Chips Production Equipment

Product Description

The Most Cost-effective Puffed Snack Food Extruder Making Machine Stainless Steel Frying Snacks Fully Automatic Fried French Chips Production Equipment Product Description
The key and key technology of the SLG twin screw food production line is the use of extrusion technology, which is the most "popular" and "high-tech" food processing technology in the world today. After being expanded, grains become larger in volume, fluffy in tissue, gelatinized in starch, and have an increase in water-soluble components, which are easily digested and absorbed by the human body. Therefore, they are widely welcomed by consumers from various countries.Our company's fried snack production line mainly has three types of hosts to choose from, and the output and size of different hosts vary. Enterprises can decide based on their own production needs.
Process flow of fried wheat flour snack production line: Mixer - Spiral extractor - Twin screw host - Traction cutting machine - Automatic fryer - Drum seasoning line
Introduction to the main functions of each equipment on the production line:
1. Mixer: Mix the raw materials and a certain amount of water required for production thoroughly and evenly to form the necessary materials for production.
2. Spiral feeder: The mixed raw materials are transported to the feeding hopper of the extruder, and the use of spiral rod feeding can ensure uniform and stable feeding without easy scattering. The spiral rod also has the function of secondary stirring.
3. Twin screw host: The mixed production materials are extruded and expanded, and the materials are subjected to high-temperature and high-pressure extrusion and kneading in the extruder, and finally extruded and formed by the extruder.
4. Traction cutting machine: Pulling and cutting semi-finished products into products of the same size and shape.
5. Automatic fryer: Fry the cut product to make it crispy in taste. Automatic fryers are easy to control temperature, highly automated, and evenly fried.
6. Octagonal seasoning machine: The fried product is seasoned, and the flavor can be determined according to production needs. Our company also has various seasoning equipment configurations.

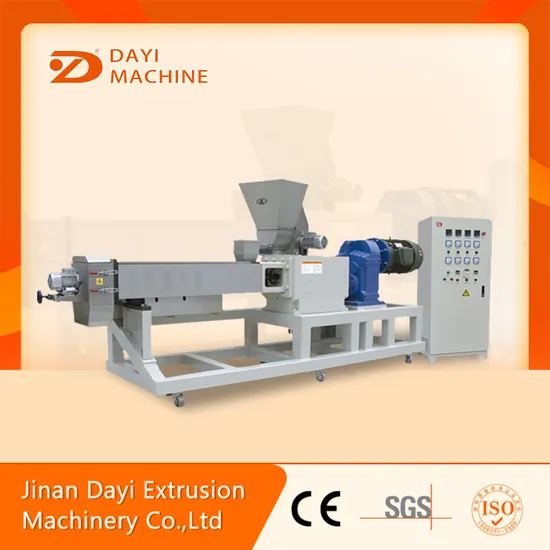

Multi Configuration Host

Equipment advantages:
1. The motor and distribution box adopt direct transmission to reduce energy loss
2. Modular composite alloy material screw, which can be freely combined according to raw materials and products
3. The machine barrel is equipped with a water injection device, a fully automatic heating and circulating cooling system, and accurate temperature control
4. The feeding, rotary cutting, and main drive all adopt a frequency conversion speed control system, which has strong power and smooth operation
5. The feeding system adopts double spiral forced feeding
6. The rotary cutting device adopts a suspended mold assembly and a linear bearing knife adjustment device, which is safe, accurate, and fast.
7. Adopting imported bearings, with strong load-bearing capacity.
8. Automatic lubrication system reduces mechanical energy consumption and extends service life.
Introduction to host parameters:

Model	Installed power	Power consumption	Capacity	Dimension
SLG65-C	40.75kw	26kw	100-150kg/h	16500*2250*2900mm
SLG70-A	76.05kw	54kw	250-300kg/h	20000*2250*2800mm
SLG85-A	121.05kw	91kw	350-400kg/h	20800*3000*3000mm

Snacks Produced
It can produce fried wheat flour snack, Jiangmi strip, core-filling rolls and other direct puffed snacks. It can also produce nutritional powder, grain gruel and many other snacks by changing moulds and assistant equipments.

Company Profile
Jinan Dayi Expansion Machinery Co., Ltd. has been established for more than 20 years since 1996, with an average annual revenue of over 100 million. It is a professional expansion machinery manufacturing company that integrates research and development, design, production and manufacturing, product sales, and after-sales service. It is a national high-tech enterprise.
The company has modern office space, research and development centers, and standardized factories, with a construction area of over 20000 square meters. It currently has more than 50 senior engineers and technical personnel, and has cultivated a production and service team with excellent technology and skills.
The company's business scope includes the development of food extrusion machinery, drying machinery, frying machinery, and puffing food machinery.
Da Yi Company has gained widespread praise both domestically and internationally since its development. The company's equipment is exported to more than 50 countries and regions abroad, such as Egypt, Japan, Russia, India, Canada, Australia, etc.
Dayi Company strives to provide food production equipment within its consumption capacity for every food manufacturer; In the future, we will continue to provide higher quality equipment and services as always.
Factory internal display:
Customer Testing
Customer Case
After Sales Service
1. Sales representatives provide you with professional consultation on market, equipment, technology, raw materials, packaging, and other aspects.
2. Assist you in equipment selection, process design, and factory layout optimization. If necessary, on-site service is available.
3. We can design compensation plans for changes in raw materials for your product and conduct on-site demonstrations.
4. We can conduct specialized design, manufacturing, and application experiments according to your needs, and provide targeted training.
5. Design reasonable packaging and transportation plans for customers, handle transportation on behalf of others, dispatch technical personnel for on-site installation and debugging, and train personnel.
6. The equipment has a one-year warranty and long-term preferential supply of components.
7. Regularly provide training on equipment improvement, process innovation, and other aspects to help customers increase productivity and produce products with competitive advantages.
FAQ
Generally questions you will meet during you choose the suitable machine:
1.Voltage
DAYI:Adjustable to your local voltage,such as 3ph 415v 50hz,3ph 380v 60hz,3ph 440v 60hz,3ph 220v,60hz.
2.Material
DAYI:Stainless steel for the parts which directly connect with the food.
3.Brand of Motor?eletronic components?
DAYI:ABB,SIEMENS or Chinese Top Brand,it depends on your requirements.
4.Fuel for dryer and fryer
DAYI:Gas,diesel,eletricity as fuel
5.Customer Visiting
DAYI:We can arrange to pick up customer when visiting
6.Gurantee time?
DAYI:Normally our gurantee time is one year except easy broken parts.
7.Comissioning
DAYI: We can send technician team to your country
If you have any need for our snacks machines, please contact us when feel free. Also welcome you come to have a visit of us.
