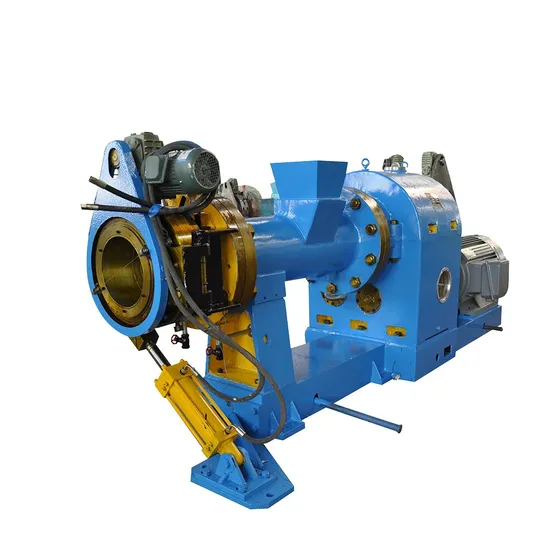

EPDM Rubber Extrusion Vulcanizing Line for Wiper

Product Description

Product Parameters

Pin-Barrel Cold Feed Rubber Extruder	SK90KSx14D	SK120KSx14D	SK150KSx16D	SK200KSx18D	SK200KSx18D	SK250KSx14D
Screw dia	90	120	150	200	200	250
L/D ratio	14:1	14:1	16:1	18:1	12:1	12:1
Max.screw speed	60	55	44	33	26	22.63
Hopper	130x122	164x140	200x165	260x210	260x210	320x246
Row Qty of pin	8	10	10	12	10	10
Pin Qty. of each row	6	6	8	10	10	12
Model of motor	Z4-200-21	Z4-200-31	Z4-250-21	Z4-280-32	Z4-280-11	Z4-280-32
Power	67	90	185	315	250	315
Zone of hot water circulation	4	4	4	4	4	4
Total Power of Hot Water Circulation Heating System	24	48	48	54	42	48
Capacity	360	800-1000	1800-2000	2100-2600	2300	3000
Overall dimensions	2540x1493x1416	3996x1575x1760	6000x2600x1800	7770x3000x2035	6250x3000x2035	6885x2400x2090
About Weight	~4.5	~6	~7.25	~16.6	~12.6

Cold Feed Extruder	XJW-90	XJW-120	XJW-150
Screw Dia.	90	120	150
Max.Screw Speed	45	40	35
Feeding Roll Dia	72	120	120
Zone of Hot Water Circulating	3-4	3-4	3-4
Max.Total Power of Hot Water Circulating Heating	48	48	48
Overall Dimensions LxWxH	3045x2052x1453	4250x2290x1490	4277x2211x1503
Weight	5000	5500	8000

Hot Feed Extruder	XJ-65	XJ-85	XJ-115	XJ-150	XJ-200	XJ-250
Screw dia.	65	85	115	150	200	250
L/D	4	4.8	4.8	4.4	4.4	4.5
Screw rotational speed	20.27 35.47	27.40 53.72	20~60	27~81	22.4~67.2	19.7~59.1
Motor Power	7.5	17	30	15.3~55	33.3~100	33.3~100
Overall Dimension(LxWxH)	1600x675x1053	2050x735x1275	2770x665x1300	3585x814x1470	4549x1140x1750	4950x1150x1483
Capacity	50~80	62~270	100~350	800	1500~2200	3500
Total Weight	1.5	1.6	3.3	4.5	7.21	9

Features 1. The material of the screw is made by 38CrMoAlA nitrogen steel with high quality and the surface is nitrogen and its nature is adjusted. The hardness of the surface is HRC60-65 and the depth is 0.5-0.7mm.
2. The material of bush is made by 38CrMoAlA nitrogen steel with high quality and the surface is nitrogen and its nature is adjusted. The hardness of the surface for the inner hole is HRC60-65 and the depth is 0.5-0.7mm.
3. The motor of the equipment is direck current motor with stepless speed regulation. The decelerator is a gear decelerator with cylinder gears of two grades hardness. The precision of transmission is 6 steps.
Workshop Packaging & Shipping Service

Company Profile QINGDAO SEA KING MACHINERY CO., LTD.
Qingdao Sea King Machinery Co., Ltd. is located in the west coast of Qingdao is one of the most famous rubber machinery manufacturers.We have been specializing in rubber machinery for more than 30 years.
The company has passed ISO9001:2008 certification, CE certification,SGS certification, france BV certification.
The main product of our company: Internal mixer, Two roll Mixing mill , extruding equipments, calendar equipments, Cutting machine, cooling equipment, Vulcanizing equipment, and Reclaimed rubber production line, rubber sheet extrusion line.Motorcycle&bicycle Tube &Tires production line, Conveyor Belt production line, ν belt production line, rubber recap equipment and so on. Besides, we also can base on clients' requirement to manufacture and design non-standard rubber machinery.
With the rapid development of our company, Qingdao Sea King industrial Limited was founded. The company has established good commercial relationship with many companies in China by joint venture holding. Products include Rubber Machine .Raw Rubber Material Rubber Products and so on. Our company has import-export rights. The products have been exported to many countries and districts around the world, such as America. France. Canada.Dubai.Australia.Peru.Brazil.Ecuador,SouthAmerican, Southeast Asia, and the Middle East. By the advanced quality and service. our products have gained the praise of domestic and foreign customers.
We strictly follow the policy"to satisfy our clients' need with quality work,advanced technology, optimized design solution and excellent service".
Exhibition&Certificate

FAQ Q: Are you Factory or Trading company?
A: We are a factory with over than 30 years of experience in RubberMachine.
Factory Add:No,210 Tieshan Road, Jiaonan , Qingdao , China.Welcome you come to visit our factory,we will arrange scheduleand book hotel for you.
Q: Why customer choose Seaking Machinery?
A: 3-5 Years warranty; Brand of strength, 30 years experience;Perfect Quality Management System,All prats Self-producing,Nomiddlemen in the production process.
Q: What's your delivery times?
A: The delivery time is 20-45 days after order be confirmed. For theexact date,please check with our sales team.
Q: What's your After-sale Service?
A: 3-5 Years warranty, 30 peoples After-sales team keep working in24 hours,Provide overseas service.
Q: What's your Payment terms?
A: 30% T/T deposit in advance, then balance the rest 70% beforeloading.
