Capacity 500-800kg/Hr PVC PE Pulvizer

Product Description

CAPACITY 500-800KG/HR PVC PE pulvizer
Packaging Details
Film wrapping and wooden case for PE PVC EVA PVC LLDPE/LDPE/hard PP pulverizer machine Port shanghai
In order to better give you professional answers, when sending the inquiry, please describe your parameters or technical requirements (such as: processing materials, output size, capacity, etc.) and attach your contact information (such as phone number, e-mail, facebook, whatsapp, wechat, etc.)
Description:

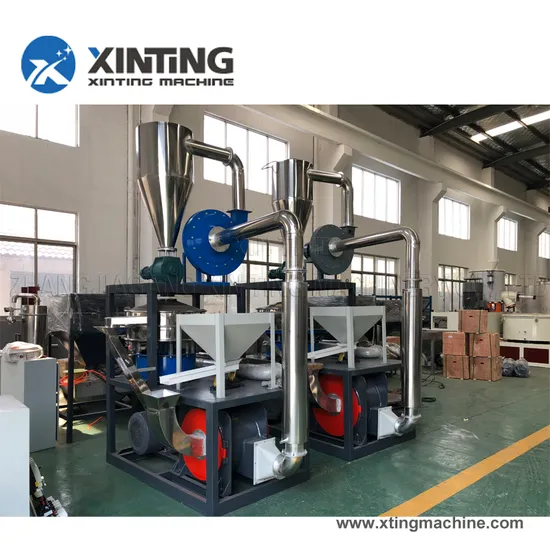

This PVC Plastic mill is chiefly designed to grind PVC PE PVC EVA LLDPE/LDPE/hard PP. The pulverizer uses turbo type blade. The static blade and rotary blade could be adjusted, thus you can get different size of PVC powder with one grinder. High output, low energy consumption and long lifespan attract many customers around the world. It can be used for PVC plastic from PVC pipe/profile/soft LLDPE/LDPE/hard PP sheet/bottle/card from low to moderate hardness PVC LLDPE/LDPE/hard PP.
The output of our pulverizer can reach 100-900kg/h (15-120mesh).
The plastic pulverizer machine is mainly composed of electric motor, disc type blade, feeding fan, vibrating sieve, dust removing system, etc.
According to the customer's needs, you can choose some accessories, such as converter, vacuum loader, screw loader, magnetic net, metal separator, chiller, pulse dust collector, metering and weighing packaging machine, etc.
Technical Features:
1. Pulverizer can easy to grind all kinds Hard & Soft PVC LLDPE/LDPE/hard PP into powder.
2. The dust collector is added to effectively reduce dust pollution.
3. The discharging of the main fan reduces labors intensity of operating workers.
4. The door cover of the host can be opened for convenience of maintenance and replacement of cutters.
5. The mill use the water and wind double cooling system ,Prevent bearing and other parts from overheating.
6. The powder mesh is adjustable(15-100mesh).
7. Easy installation and maintenance, just open the door to clean up.
8. Using Well-known brand accessories, such as SKF bearings and Siemens motors, can work for a long time, saving the trouble of changing accessories frequently.
9. With a wide range of optional accessories, professional solutions can be developed based on the customer's budget and processing requirements.

Model	XT-500	XT-600	XT-800
Disc Diameter	500mm	600mm	800mm
Speed	3700RPM	3500RPM	3200RPM
Main Motor	37KW	55KW	75KW
Capacity	150-280kg/h	200-550kg/h	450-850kg/h
Powder Size	15-120mesh	15-120mesh	15-120mesh
