Basic Info.
Application
Cotton, Rice, Corn, Wheat
Harvest method
Vibration fall
Portable Harvester Type
Backpack Type
Application Field
Agriculture
Transport Package
Wooden Case
Specification
2380*1350*1480mm
Production Capacity
1200 Sets Per Month
Product Description

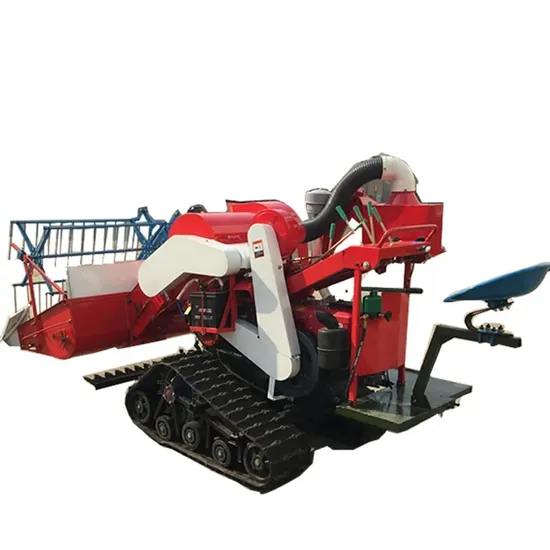

hot sale new arrival tracked mini paddy wheat combine harvester
Farm Multi-Purpose Mini Wheat Combine Harvester China Trade The combine harvester can complete the harvesting, threshing, stem separation, removal of debris and other processes of cereal crops at a time, and directly obtain grains from the field.
Features:
Stronger power, low fuel consumption.
Less breakage, less loss
Higher ground clearance, better for passing in paddy field.
New design of tension frame,avoiding belt being broken
This 4LZ 0.6A mini combine harvester can reap, thresh paddy rice at the same time; it can work in paddy field with 30cm in depth. This machine is applicable to mountainous areas, hills, plain, paddy field, and terrace work. It is easy to operate and light in weight, two men can lift.This machine can reduce the burden of the peasants, and improve their working efficiency, thus greatly improve their living standard. Specification Type
| 4LZ-0.6A Mini Combine Harvester
|
Usage
| Grain Or Wheat Harvester
|
Engine Type
| 186F Diesel
|
Rated Power
| 9hp (6.6kW)/3,600rpm
|
Oil Consumption
| 1.0kg/mu
|
Feed Rate
| 0.6 Kg/s
|
Productivity
| 0.1-0.3 Ha/H
|
Total Lost
| <3%
|
Breakage ratio
| <1%
|
Impurities ratio
| <7%
|
Weight
| 238kg(without engine)
|
Overall Dimension
| 2280X1250X1380mm
|
Packed size
| 2100X1300X1000mm
|
Color
| red
|
Forward Speed
| first gear:24m/min
|
| second gear:48m/min
|
Backward Speed
| 23.8m/min
|
20' container load QTY
| 8 units
|
Chassis ground clearance
| 30cm
|
| | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
