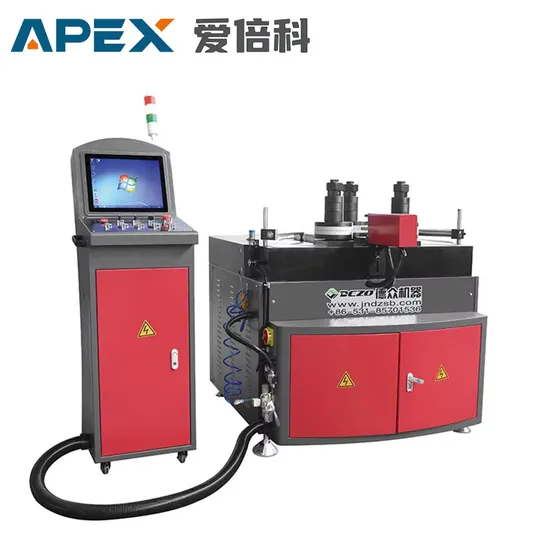

Industrial Computer Fully Automatic Bending Machine Hot Selling Aluminum Profile Bending Roll Machine
Basic Info.
Condition
New
Certification
ISO 9001:2000, CE
Automation
Automatic
Suitable for
Plastic, Rubber, Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Type
Aluminum Profile Bending Machine
Power Supply
380/50Hz
Input Power
6.7kw
Working Pressure
0.2MPa
Min. Diameter of Bending
200mm
Max. Width of Profile
330mm-530mm
Max. Diameter of Rolls
200mm
Lower Shaft Center-Dimensions
330-530mm
Hydraulic Cylinder Pressure
20t
Roller-Holding Shaft Diameter
65mm
Rotation Speed of Shaft
1-8r/Min
Positioning Precision
0.1mm
Top Roll Runout
300mm
Torque
6000n.M
Machine Weight
800kg
Transport Package
Wooden Case Packing
Specification
1000*800*1600mm
Trademark
APEX
Origin
Shandong, China
Production Capacity
10000pieces/Year
Packaging & Delivery
Package Size
1300.00cm * 1100.00cm * 1600.00cm
Package Gross Weight
1000.000kg
Product Description
Technical Parameters| Model | LWYJ-80-40T | LWYJ-80-30T | LWYJ-60 | LSWYJ-60/65 |
| Power supply | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ |
| Input power | 13KW | 12KW | 7.5KW | 10KW |
| Working pressure | 0.2Mpa | 0.2Mpa | 0.2Mpa | 0.2Mpa |
| Min diameter of bending | 200mm | 180mm | 60mm | 60mm |
| Max width of profile | 180×320mm | 150×320mm | 150×180mm | 150×180mm |
| Max diameter of rolls | 280mm | 230mm | 230mm | 200mm |
| Lower shaft center-dimensions | 500-920mm | 485mm | 380mm | 350-750mm |
| Hydraulic cylinder pressure | 40T | 30T | 20T | 20/25T |
| Rolls-holding shaft diameter | 80mm | 80mm | 60mm | 60/65mm |
| Rotation speed of shaft | 1-8r/min | 1-8r/min | 1-8r/min | 1-8r/min |
| Positioning precision | ±0.01mm | ±0.01mm | ±0.01mm | ±0.01mm |
| Top roll runout | 300mm | 200mm | 260mm | 200/280mm |
| Torque | 4500N.m | 6000N.m | 3500N.m | 2500N.m |
| Overall dimension | 1840*1360*1350mm | 1950*1380*1620mm | 1570*1000*1275mm | 1300*1100*1500mm |
| Machine weight | 2500kg | 2200kg | 1600kg | 1000kg |
| Model | LWYJ-60/65 | LLWYJ-60/65 | LWYJ-130-65T | LWYJ-30 |
| Power supply | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ |
| Input power | 5.2KW | 5.15KW | 22KW | 1.85KW |
| Working pressure | 0.2Mpa | 0.2Mpa | 0.2Mpa | 0.2Mpa |
| Min diameter of bending | 60mm | 60mm | 200mm | 30mm |
| Max width of profile | 150×180mm | 150mm | 200×400mm | 90mm |
| Max diameter of rolls | 200mm | 180mm | 300mm | 90mm |
| Lower shaft center-dimensions | 350-750mm | 350mm | 630-1300mm | 85mm |
| Hydraulic cylinder pressure | 20/25T | 20T | 65T | Mechanical transmission |
| Rolls-holding shaft diameter | 60/65mm | 60/65mm | 130mm | 30mm |
| Rotation speed of shaft | 1-8r/min | 1-8r/min | 1-8r/min | 1-8r/min |
| Positioning precision | ±0.01mm | ±0.01mm | ±0.01mm | ±0.01mm |
| Top roll runout | 200/280mm | 150mm | 390mm | 90mm |
| Torque | 2500N.m | 2500N.m | 9000N.m | 1750N.m |
| Overall dimension | 1300*1100*1100mm | 1000*800*1600mm | 1840*1780*1660mm | 1010*560*1035mm |
| Machine weight | 1000kg | 800kg | 3000kg | 400kg |
Product details and features
Production Process
Packaging & Shipping
Company Profile
After Sales Service
1.One year warranty time, we can repair and replace parts for free in one year.
2.Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.
3.Life time free maintenance service.
4.Free training course at our factory with professional engineers.
5.We provide the consumable parts at agent price when you need replacement.
FAQ
1. Q: Are you a manufacturer or trading company?
A: Yes, we are a manufacturer.We are focusing on metal pipe/tube processing machines production.
2. Q:Where is the nearest airport to your company?
A: JINAN Airport.
3. Q: How to choose the pipe/tube bending machines?
A: You have to inform us following details:
- Pipe Outdiameter Range
- Wall thickness range
- Bending Radius Value
- The pipe material
- Bends Number on one pipe
- The drawings if possible
4. Q: What certificate do you have?
A: We have both ISO and CE certificate.
5. Q:How about your service?
A: Before Sales Serive:
1. We will help our customer confirm the right model according to the offered pipe inforamtion.
2. Welcome to visit our factory to see our machine and our workshop before you place an order.
