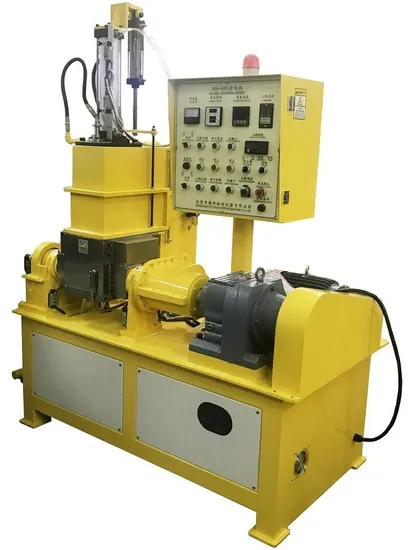

Factory Direct Sales Intermix Butyl Dispersion Internal Banbury Double Z Arm Blade Rubber Kneader Mixer Machine Mill

Product Description

Product DescriptionThis machine is suitable for stiring, kneading and dispersion of all kinds of chemical raw materials, such as plastic, rubber, synthetic rubber hot melt adhesive, etc. And then put the formula into the production line. This machine is equipped with PLC man-machine interface, temperature control module, and heat condition oil heating cooling system. Make it easy to operate, fast heating and cooling. With this machine, you can do many different experiments of all kinds of material in a short time.

XH-420-1L Technical parameter
Mixing Volume	1L, 3L, 5L, 10L,25L
Control Mode	Key control/PLC control (optional)
Flip Motor	0.75kw
Rotor speed (front and rear)	40r/30 min (speed adjustable)
Filp Angle	110ºC
Air pressure	0.3-0.5Mpa
Volume(H*W*D)	1900*1300*1500mm
Weight	1300kgs
Power supply	3∮, AC380V (or customized)

Detailed Photos
Control Panel Rotors Product Features1) The local device automatic temperature and time control system, precise operation, simple and easy, mixing up and take the best uniform dispersion effect
2) The mixing tank to be dumped style, mixing shaft mechanical seal leak dry cleaning so easy to change colors easily
3) Pressurized sealed mixing chamber to ensure the quality of the mixture outside and prevent environmental pollution
4) Mixing tank using advanced alloy steel, wear-resistant steel surfaces are treated by surface abrasion particularly good, hard chrome plating
5) Electronic control requires adjustments according to customer requirements
Other size of Lab kneader. Such as 1L,3L,5L,10L,25L
Certifications
Packaging & ShippingWe first wrapped the fuselage with a winding film and fixed it initially. Then it is further wrapped with pearl cotton to avoid damage to the machine due to bumps on the road, and finally the wrapped machine is placed in a wooden box for transportation to ensure the safe transportation of the product.
Our ServiceIf you face any problems in future during testing process we promise we will give you a reply within 24 hours and solution provide within 2 working days. We can offer operation video and English operation muanual. We can provide operation video for machines.Onsite Service
A. Device installation;
B. Equipment Operation Test Technology training;
C. Equipment Calibration;
D. Daily maintenance and maintenance of equipment
Free technical training for visiting factories
24-hour Online contact
Free software upgrades
Free information
A.Product Instruction;
B.Product operation instructionvideo;
C.Experiment Test (test application, test report)
24-hour Online contact
Free software upgrades
Free information
A.Product Instruction;
B.Product operation instructionvideo;
C.Experiment Test (test application, test report)
Device Problem Handling
A. Social media 24 hours online communication;
B. Mail Seamless Docking;
C. Video Conferencing;
D. Artificial free door-to-door serviceFAQ1.I need this product, but what can i do the specifications shown on the details page are not what I want?Please rest assured that all the company's product specifications, configurations, etc. can be customized according to customer needs, the product is only the company's standard machine model, you can customize according to demand, but it should be noted that the price will fluctuate.2.Are you a manufacturer or a trading company? We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.3.How is your company's product after-sales service system?The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales departments that can respond to you within 24 hours to resolve any technical issues.4. How long is your delivery time? If I want to customize the instrument, how long does it take?1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.5.How is the package of goods? Delivery methods?1. Standard export fumigation sign wooden box packaging 2. Express, air, sea shipping according to customer requirements, find the most suitable way.More questions, please contact customer service
