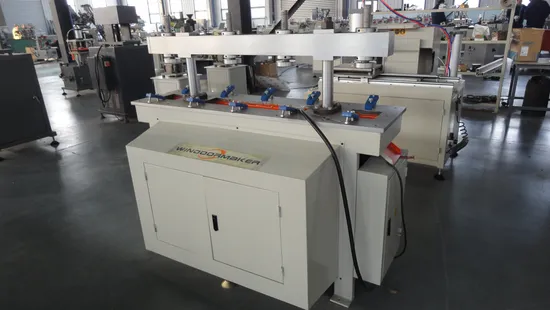

Aluminium Window Door Machinery Aluminium Hardware Lock Hole Punching Machine
| US$3,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
WMP4-80
Condition
New
Certification
ISO, CE
Automatic Grade
Automatic
CNC or Not
not CNC
Voltage
380V
Name
Hydraulic Two Cylinder Punching Machine
Model
Wmp4-80
Function
Aluminum Hole Punching
Power
4kw
Press Nominal Pressure
80kn
Operation Air Pressure
0.6~0.8MPa
Transport Package
Wood Package
Specification
1300x770x1280mm
Trademark
windoormaker
Origin
China
HS Code
847780000
Product Description
Product DescriptionSpecification:
Used for installation of aluminum windows and doors and the punching processing of aluminum profiles. Punching process, by changing processing position, various types profiles can be processed. High hydraulic power and good processing quality. There is four pillar keep the working stability. It can install 4 dies at one time. Technical parameter
| Power supply | Made to order |
| Motor power | 4kw |
| Motor rotational speed | 2800r/min |
| Rated oil pump pressure | 16MPa |
| Capability of oil box | 50L |
| Press nominal pressure | 80KN |
| Closing height | 140mm-280mm |
| Punching travel | 60mm |
| Contour dimension | 1300×770×1280mm (L×W×H ) |
| Weight | 1200KG |
Certifications
Company Profile
Jinan Windoormaker Machine CO., Ltd. Is an engineering company that has been in business for over 10 years which specialized in the manufacture and supply the UPVC & aluminum window and door machines.
Windoormaker is a factory with cover area of 15000 m² . During the years developing, has made many devotes of machine improving, introducing new equipment and technology innovation for the production.
Machine at old customer
Packaging & Shipping
