Modern Crawler Track Tractor Agricultural Implements 100HP Chinese Tractor
| US$18,000.00 | 1 Piece (MOQ) |
Basic Info.
Application Field
Agriculture
Farming Policy
Paddy Field Machinery
Power Source
Diesel
Operation
Soil Preparation Machinery, Movable Operation
Traction Type
Traction
Drive Type
Gear Drive
Arbor Configuration
Horizontal Axis
Color
Red
Warranty
2 Years
Engine
100HP
Mini Ground Clearance
530mm
Rubber Track
500*90*56
Gear Box
12+12
Specification
3900*1820*2420
HS Code
84378000
Production Capacity
10000units/Year
Product Description
Product Description50-100HP Farm Tractor,Rubber Tractor,Crawler Tractor
1.Farm tractors engine form adopt renowned directly injection vertical water cooled 4-stroke(In line,EFI,water cooled,4-stroke) YTO/CHANGCHAI engine.
2.Agricultural equipment tractors Walking rubber track pitch section*number*width: 90*46*300(W602,60HP) 90*46*350(W502,50HP) 90*50*350(W702/802,70/80HP) 90*51*350(W702,70HP) 90*54*400(W802/902,80/90HP) 90*56*500(W902/1002,90/100HP)
3.China best selling tractors cltuch:single-plate, single-acting, wet friction clutch Type.
4.Our farm tractors Minimum ground clearance(mm):260,400,410,530,610.
5.Equipment farming tractors of gear box:F12+R12;F8+R8;2(machanical gear)+2*2(hydraulic stepless speed change);Main transmission(hydraulic stepless speed change+machanical gear)+2(secondary speed change).
6.PTO:φ38,8teeth φ38,6teeth,Speed:720/1000.Linkage:II Rear Mount 3-point Linkage. We can produce and customize all sorts of medium-sized tractor 50 HP - 100 HP farm crawler tractors, diesel type, electric type can be customized production, and the tractor with all series farm implements, such as ridging machine,rotary tiller,disc plough, flattener,ditching machine,windrower,harrow, loader, backhoe, trailer,mower,grass chopper,silage corn straw harvester,small excavators etc you want. But firstly, tell us your preferred horsepower tractor.

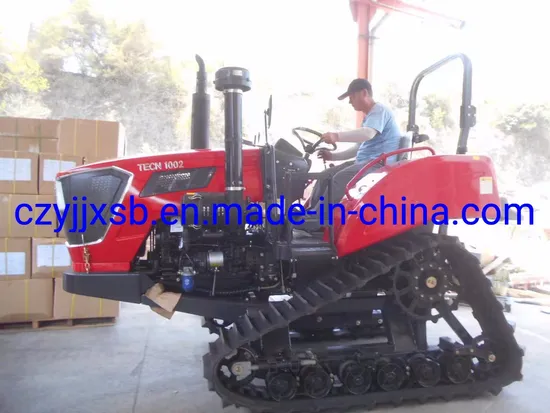

Detailed Photos
Product Parameters
| Model | TECN1000 | |
| Weight (KGS) |
| |
| Main Standard Configuration | ||
| Working Dimension L*W*H (mm) | 3900*1820*2420 | |
| Ground Clearance(mm) | 530 | |
| Travelling Speed(km/h) | 0-17 | |
| Diesel Engine | ||
| Model | YTO Engine 100hp | |
| Type | Vertical, Water-cooling, 4*4 strokes Direct Inject | |
| Rated Power/Rotating Speed | 100HP/2600rpm | |
| Fuel Consumption(kg/hm2) | 12~30 | |
| Fuel Capacity (L) | 60 | |
| Gear Box& HST | ||
| Gear Box | Planetary differential steering | |
| 2 mechanical gear with 12 forward and 12 backward | ||
| Rubber Track | ||
| Size (mm) | 450mm*56*90 mm | |
| Length of Ground Contact (mm) | 1070mm | |
| Average Contact Pressure(kpa[kgf]/cm2) | ≤20Kpa | |
| Counterweight | 3*45KG | |
| 3 Point Hitch | Adjustable Top Link and Left Right Rod | |
| Pressure | Unilateral Pressure | |
| PTO(r/min) | 720 | |
| Max Tilling Depth(mm) | 308 | |
| Others | ||
| Cabin/Sun-roof | Sun-roof | |
| Rotary cultivator | 2.3m | |
| Optional | LEVELER |
